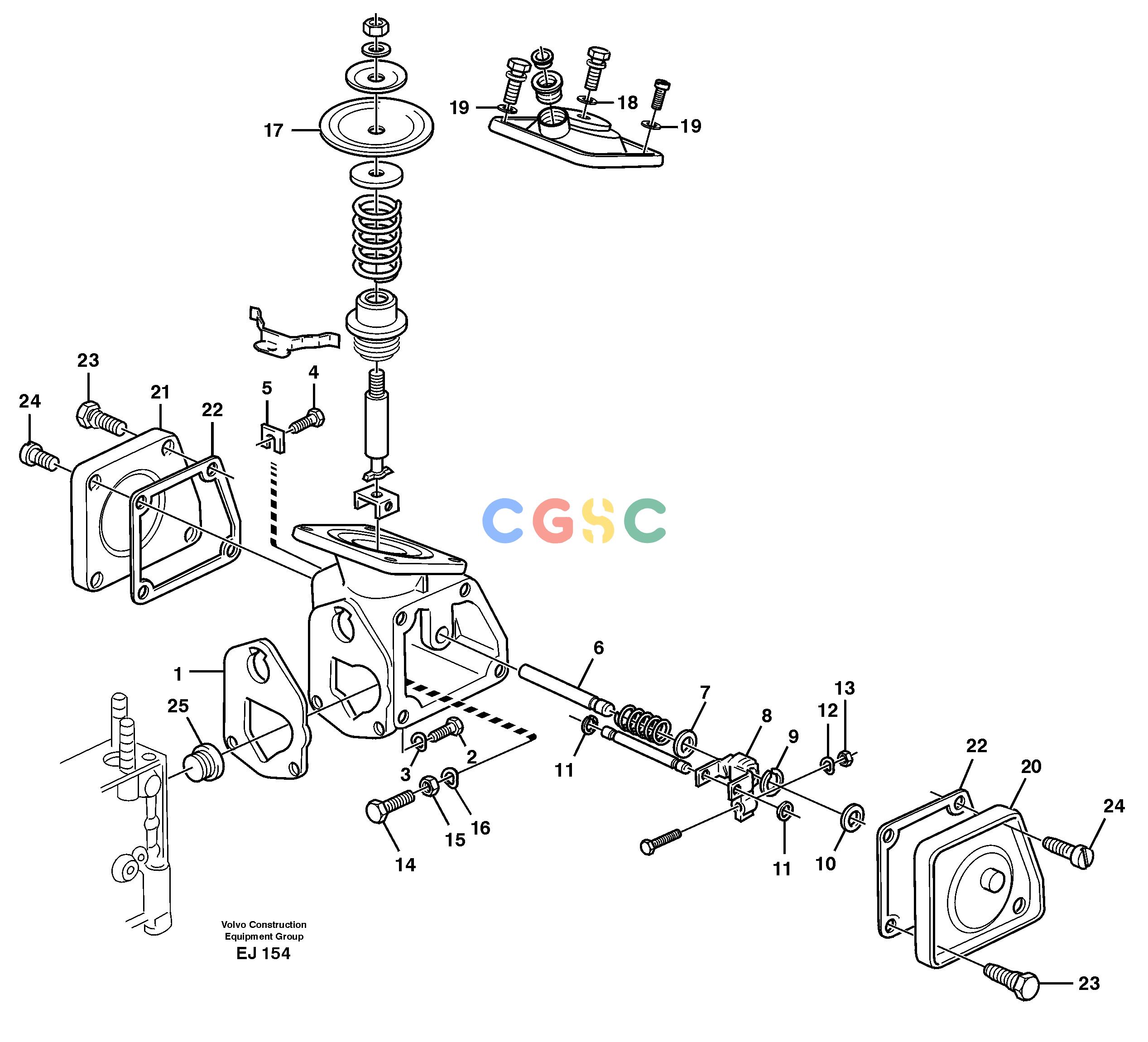

沃尔沃零件查询L330D Smoke limiterNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11701915
|
[1] |
Smoke Limiter
|
11701915
|
| 1. |
|
[1] |
Gasket
|
|
| 2. |
VOE6638096
|
[2] |
Screw
|
|
| 3. |
VOE13949607
|
[2] |
Washer
|
|
| 4. |
VOE849518
|
[1] |
Screw
|
|
| 5. |
VOE241794
|
[1] |
Washer
|
|
| 6. |
VOE243889
|
[1] |
Shaft
|
|
| 7. |
VOE233816
|
[1] |
Washer
|
|
| 8. |
VOE241782
|
[1] |
Hand lever
|
|
| 9. |
VOE13951669
|
[1] |
Retaining ring
|
|
| 10. |
VOE6210700
|
[1] |
Spacer ring
|
|
| 11. |
VOE951667
|
[2] |
Retaining ring
|
|
| 12. |
VOE13949607
|
[1] |
Washer
|
|
| 13. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 14. |
VOE863823
|
[1] |
Screw
|
|
| 15. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 16. |
VOE13949607
|
[1] |
Washer
|
|
| 17. |
VOE3094248
|
[1] |
Diaphragm
|
|
| 18. |
VOE7011991
|
[1] |
Gasket
|
|
| 19. |
VOE13949607
|
[4] |
Washer
|
|
| 20. |
VOE241789
|
[1] |
Cover
|
|
| 21. |
VOE6238112
|
[1] |
Cover
|
|
| 22. |
VOE1698171
|
[2] |
Gasket
|
|
| 23. |
VOE243140
|
[4] |
Screw
|
|
| 24. |
VOE847452
|
[4] |
Screw
|
|
| 25. |
VOE240120
|
[1] |
Bushing
|
|
