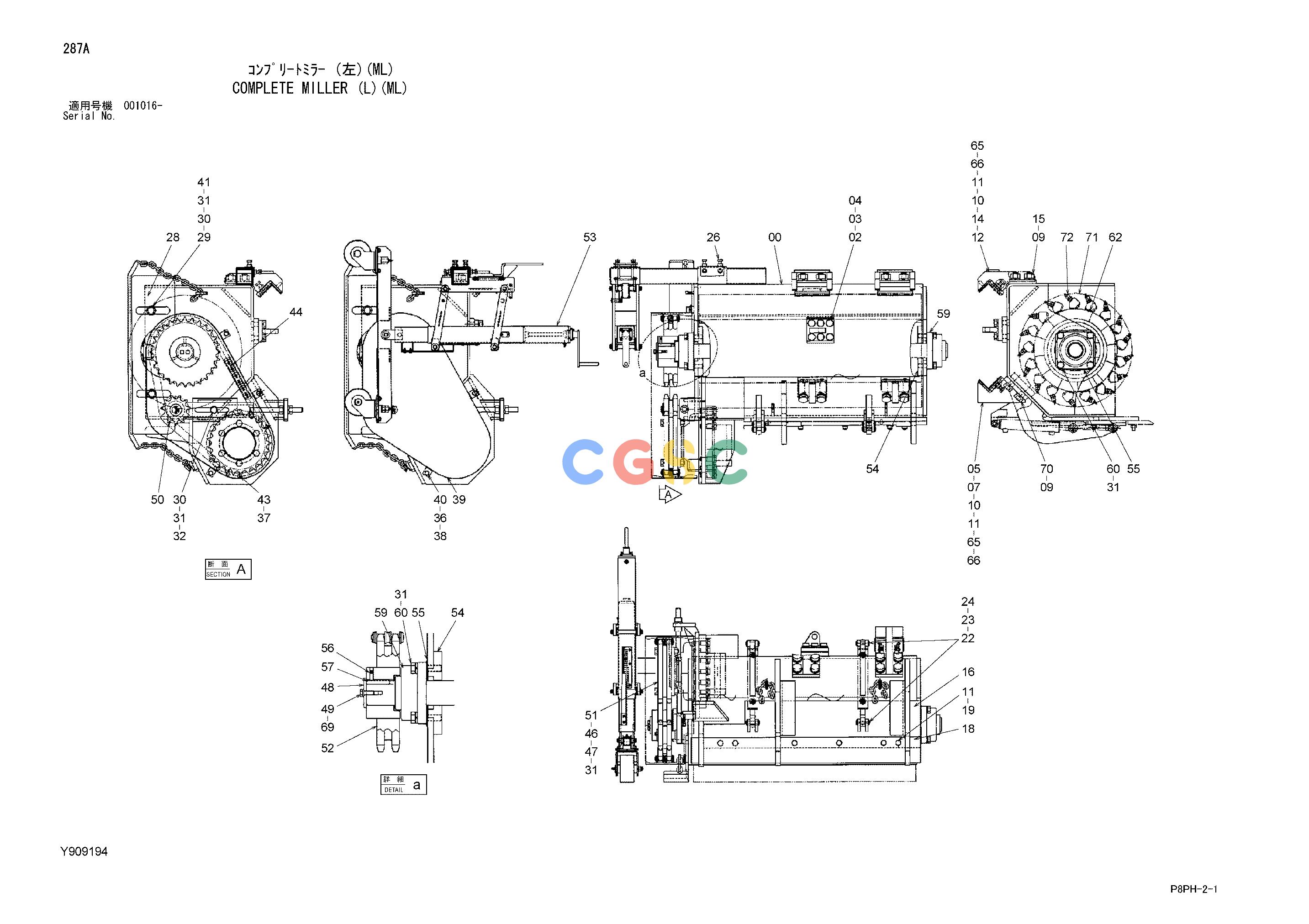

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | Y700940 | [1] | HOUSING | |
| 02. | Y970958 | [1] | LUG | |
| 03. | J922255 | [6] | BOLT | |
| 04. | J257222 | [6] | WASHER;SPRING | |
| 05. | Y802254 | [2] | BRACKET | |
| 07. | Y409635 | [2] | PLATE | |
| 09. | J257227 | [16] | WASHER;SPRING | |
| 10. | J901640 | [8] | BOLT | |
| 11. | J950016 | [14] | NUT | |
| 12. | Y802251 | [2] | BRACKET | |
| 14. | Y409642 | [2] | BOTTOM PLATE | |
| 15. | J950027 | [8] | NUT | |
| 16. | Y802101 | [1] | SCRAPER | |
| 18. | Y301910 | [1] | BLADE | |
| 19. | A590916 | [6] | WASHER;SPRING | |
| 22. | Y411967 | [4] | PIN | |
| 23. | A590116 | [8] | WASHER;PLANE | |
| 24. | A763020 | [8] | PIN;SPLIT | |
| 26. | J901435 | [4] | BOLT | |
| 28. | Y801739 | [1] | PLATE;L | |
| 29. | Y409625 | [2] | SPACER;WASHER | |
| 30. | J922045 | [3] | BOLT | |
| 31. | J257220 | [17] | WASHER;SPRING | |
| 32. | A590120 | [1] | WASHER;PLANE | |
| 36. | A590112 | [3] | WASHER;PLANE | |
| 37. | A590922 | [8] | WASHER;SPRING | |
| 38. | A590912 | [3] | WASHER;SPRING | |
| 39. | Y700938 | [1] | SHIELD LEFT | |
| 40. | J901225 | [3] | BOLT | |
| 41. | A590124 | [2] | WASHER;PLANE | |
| 41. | Y413092 | [2] | WASHER;PLANE | |
| 43. | Y412848 | [8] | BOLT;REAMER | |
| 44. | Y411919 | [1] | CHAIN;ROLLER | |
| 44A. | Y415794 | [1] | CHAIN (OFFSET) | |
| 46. | J922002 | [6] | BOLT | |
| 47. | J950020 | [6] | NUT | |
| 48. | Y413069 | [1] | PLATE;END | |
| 48. | Y413052 | [1] | PLATE;END | |
| 49. | J901025 | [1] | BOLT | |
| 49. | J901235 | [2] | BOLT | |
| 50. | +++++++ | [1] | TENSIONER (ML) | <for details: see separate page> |
| 51. | Y411924 | [1] | SPROCKET | |
| 52. | Y411923 | [1] | SPROCKET;CHAIN | |
| 53. | +++++++ | [1] | DEPTH CONTROL DEVICE | (FRONT)(ML) <for details: see separate page> |
| 54. | Y409623 | [2] | GASKET HOUSING | |
| 55. | Y409624 | [2] | BEERING STOPPER | |
| 56. | Y411968 | [1] | SCREW;SET | |
| 56. | Y411968 | [3] | SCREW;SET | |
| 57. | 94-2352 | [1] | KEY | |
| 59. | Y411970 | [2] | BRG. | |
| 60. | J922080 | [8] | BOLT | |
| 62. | Y600483 | [1] | MILLER LEFT | |
| 65. | Y411971 | [16] | SHIM 1.6 | |
| 66. | Y411972 | [16] | SHIM 2.3 | |
| 69. | A590910 | [1] | WASHER;SPRING | |
| 69. | A590192 | [2] | WASHER;SPRING | |
| 70. | J922760 | [8] | BOLT | |
| 70. | Y413971 | [8] | BOLT | |
| 71. | Y409745 | [77] | CUTTING INSERT SEAT | |
| 72. | Y409746 | [77] | CUTTING INSERT |
