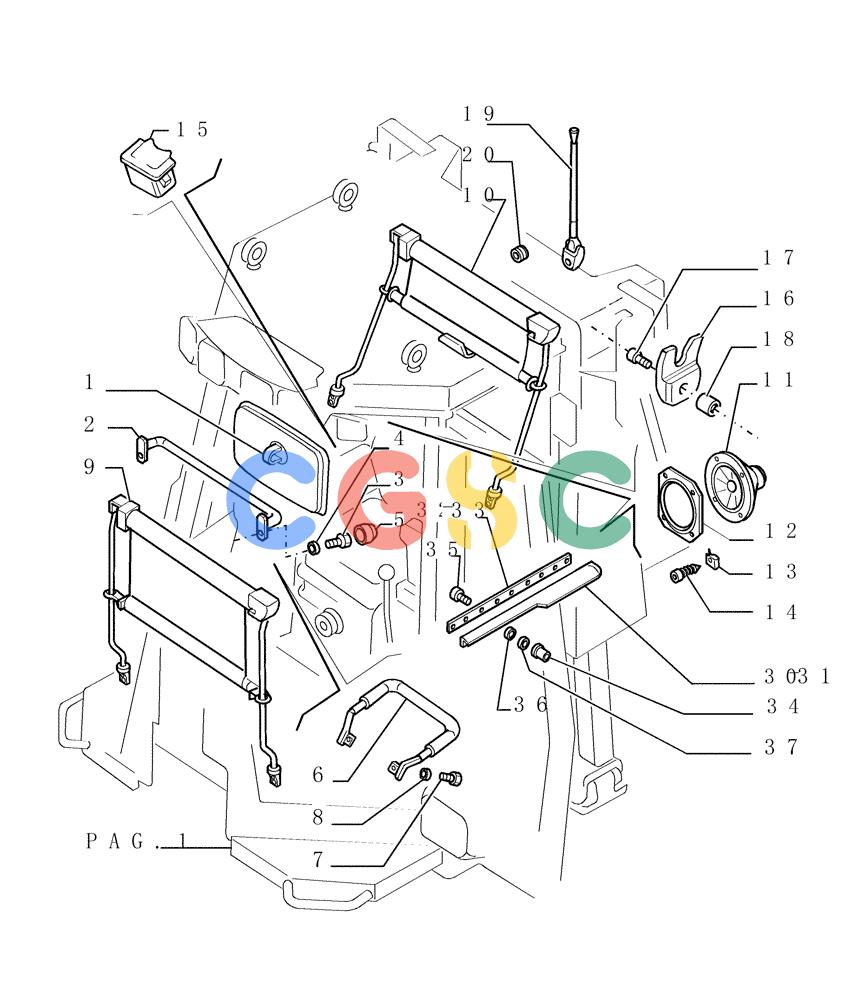

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[25]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067706 | [1] | REAR VIEW MIRROR | LEC |
| 2. | 76067260 | [1] | SUPPORT | LEC |
| 3. | 16043421 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 16043424 |
| 4. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 5. | 4227139 | [2] | CAP,M8 | LEC Superseded by part number: 9964997 |
| 6. | 76067386 | [1] | HANDLE | LEC |
| 7. | 10979234 | [2] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 10979231 |
| 8. | 14496601 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | BAS Superseded by part number: |
| 9. | 76067796 | [1] | CURTAIN | LEC- FRONT |
| 10. | 76067797 | [1] | CURTAIN | LEC- REAR |
| 11. | 71483881 | [1] | KIT | LEC Superseded by part number: 1482309 |
| 12. | 71490900 | [1] | KIT | LEC Superseded by part number: 1482306 |
| 13. | 71485200 | [8] | SPRING | LEC |
| 14. | 76043518 | [8] | SCREW,M4.2 x 13mm | LEC |
| 15. | 76043643 | [1] | ASH TRAY | LEC |
| 16. | 76067422 | [1] | COAT HOOK | LEC |
| 17. | 13274417 | [2] | SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 5.8 | LEC Superseded by part number: 86511827 |
| 18. | 15629611 | [2] | THREADED INSERT | LECM5 |
| 19. | 76067452 | [1] | ANTENNA | LEC |
| 20. | 76045509 | [2] | GROMMET | LEC |
| 30. | 76069224 | [1] | SEAL | LEC- LEFT |
| 31. | 76069225 | [1] | SEAL | LEC- RIGHT |
| 32. | 76067632 | [2] | STRAP | LEC |
| 33. | 76067633 | [2] | STRIP | LEC |
| 34. | 76067740 | [22] | THREADED INSERT | BURM5 Superseded by part number: 71490908 |
| 35. | 13274411 | [22] | SCREW,Pozidriv Pan Hd, M5 x 20mm | TTF Superseded by part number: 86511827 |
| 36. | 14496331 | [20] | WASHER,M5.3 x 10 x 1 Thk | LEC Superseded by part number: 14496321 |
| 37. | 10571474 | [22] | LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC | TTF Superseded by part number: 10569179 |
