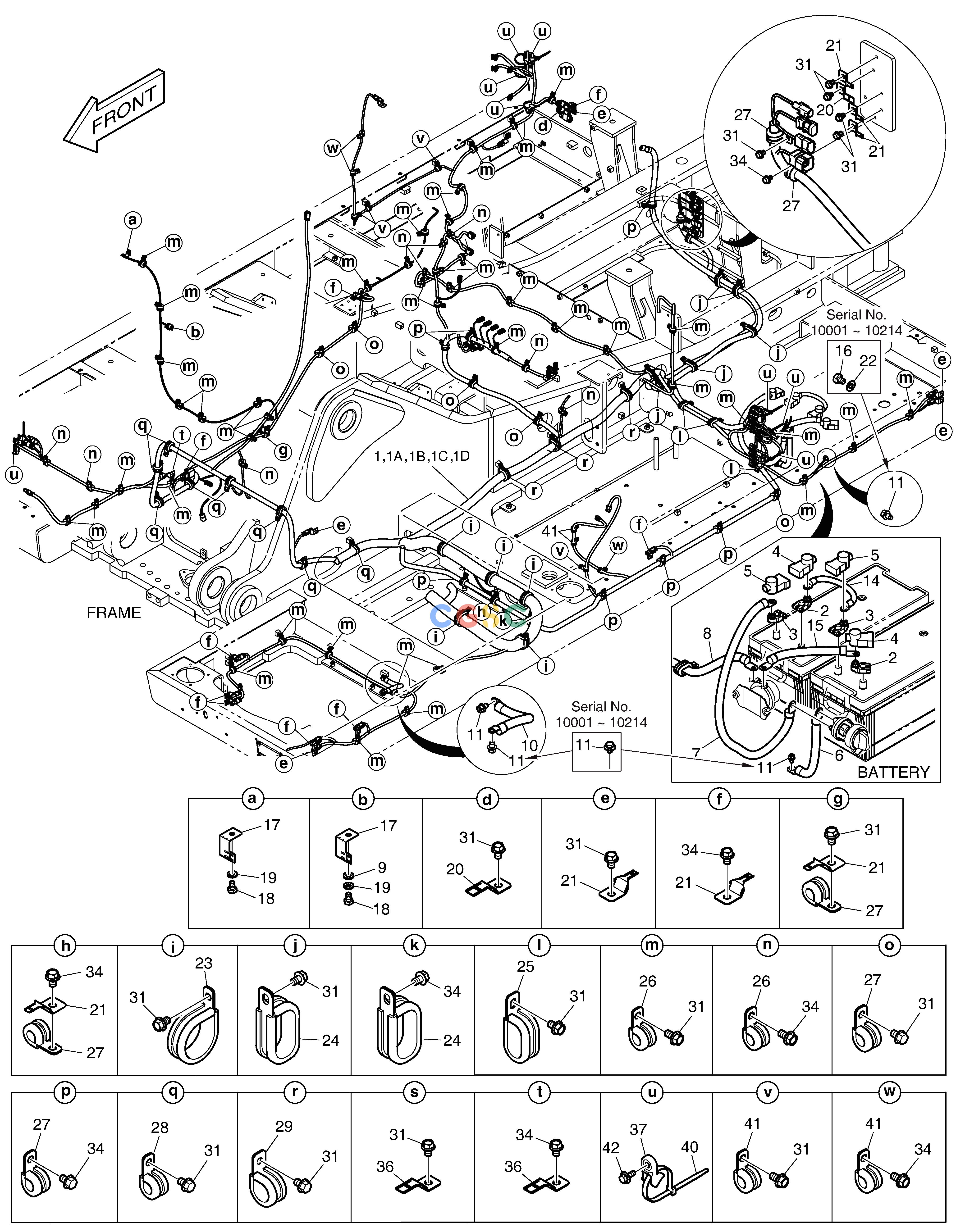

斗山零件查询ELECTRIC WIRING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-00924
|
[-] |
|
|
| 1. |
310207-00245G
|
[1] |
|
|
| 1. |
310207-00245H
|
[1] |
|
|
| 1. |
310207-00245K
|
[1] |
|
|
| 1. |
310207-00245L
|
[1] |
|
|
| 10. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 11. |
120106-00701
|
[4] |
BOLT
|
|
| 11. |
2120-2196D1
|
[3] |
BOLT;SET M10X1.5X20
|
120106-00701
|
| 14. |
2553-1275D6
|
[1] |
CABLE;BATT-BATT 60R-250L
|
|
| 15. |
K1049552A
|
[1] |
|
|
| 16. |
S0511553
|
[1] |
BOLT M10X1.5X14
|
|
| 17. |
2195-3500
|
[2] |
BRACKET
|
|
| 18. |
S0504453
|
[2] |
BOLT
|
|
| 19. |
S5102303
|
[2] |
. WASHER
|
|
| 1A. |
2548-1027
|
[4] |
DIODE
|
|
| 1B. |
K1000814
|
[1] |
DIODE
|
|
| 1C. |
K1000815
|
[1] |
DIODE
|
|
| 1D. |
548-00003A
|
[1] |
DIODE
|
|
| 2. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 20. |
2197-1660
|
[4] |
BRACKET
|
|
| 21. |
2197-1661
|
[20] |
BRACKET
|
|
| 22. |
S5010613
|
[1] |
WASHER
|
|
| 23. |
124-00208D11
|
[5] |
CLIP
|
|
| 24. |
124-00209D2
|
[5] |
CLIP
|
|
| 25. |
124-00209D1
|
[3] |
CLIP
|
|
| 26. |
124-00208D2
|
[52] |
CLAMP
|
|
| 27. |
124-00208D3
|
[16] |
CLIP
|
|
| 28. |
124-00208D4
|
[9] |
CLIP
|
|
| 29. |
124-00208D6
|
[4] |
CLIP
|
|
| 3. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 31. |
K1001029
|
[86] |
BOLT
|
|
| 34. |
K1001029
|
[41] |
BOLT
|
|
| 36. |
195-02154
|
[2] |
BRACKET
|
|
| 37. |
110420-00330
|
[8] |
BRACKET
|
|
| 4. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 40. |
310101-00035
|
[8] |
TIE,CABLE
|
|
| 41. |
124-00208D1
|
[9] |
CLIP
|
|
| 42. |
DS0025049
|
[8] |
BOLT M8x1.25x25
|
|
| 5. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 6. |
310203-00007
|
[1] |
|
|
| 7. |
310203-00008
|
[1] |
|
|
| 8. |
2553-1275D88
|
[1] |
CABLE;BATT RY-STARTER
|
|
| 9. |
S5010313
|
[1] |
WASHER
|
|
