纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[28]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
886 次

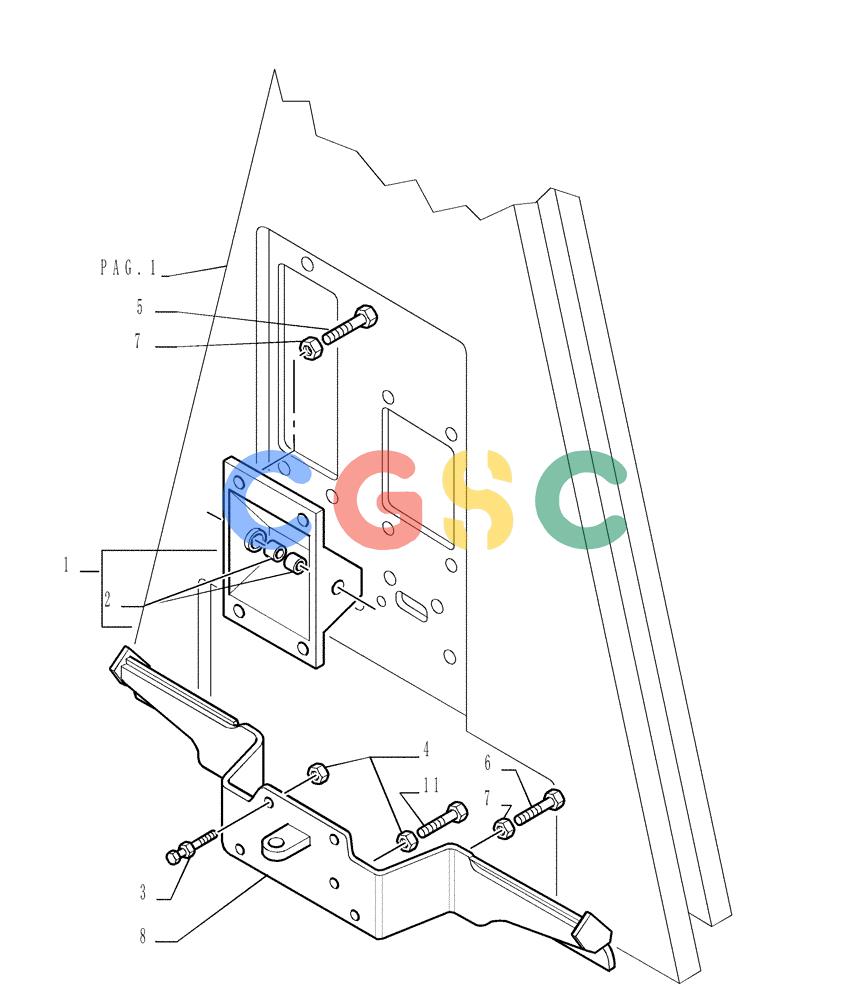

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046806 | [1] | SUPPORT | LEC- ASSY |
| 2. | 79048068 | [2] | ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm | LEC20X26X16 Superseded by part number: 5188063 |
| 3. | 79102461 | [1] | PIN | LEC |
| 4. | 12575621 | [2] | NUT | TTF10X1,5 Superseded by part number: 12574521 |
| 5. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 6. | 11106424 | [3] | SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd | IMO Superseded by part number: 9515003 |
| 7. | 12626231 | [8] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 76046804 | [1] | FOOTREST | LEC16X1,5X5 |
| 11. | 15214931 | [1] | BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd | LEC |
