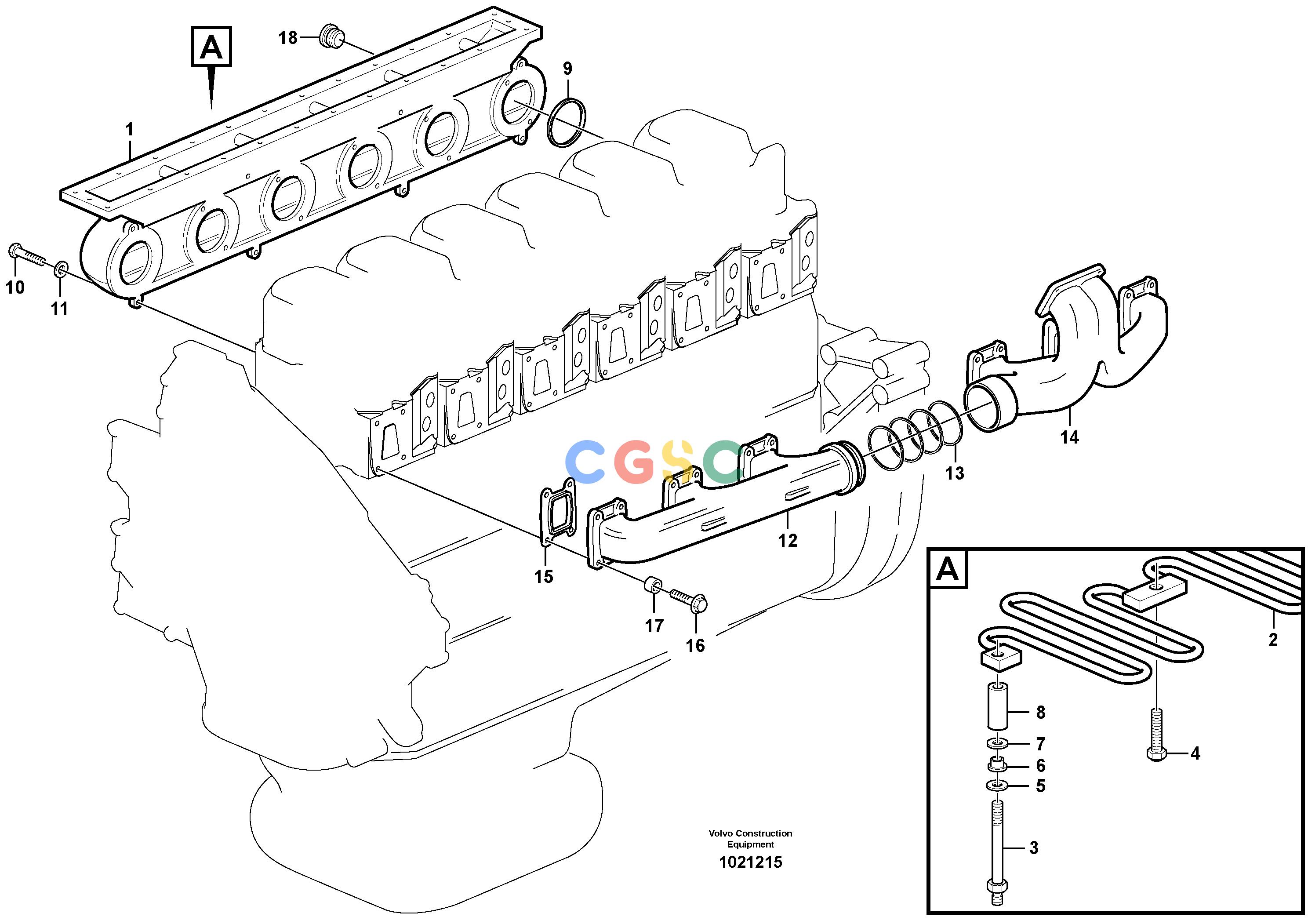

沃尔沃零件查询L330D Inlet manifold and exhaust manifoldNone.-.NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE3826924
|
[1] |
Inlet pipe
|
E PROD
|
| |
VOE11032241
|
|
Inlet pipe
|
L PROD
|
| 2. |
VOE862609
|
[1] |
Element
|
|
| 3. |
VOE849043
|
[2] |
Terminal screw
|
|
| 4. |
VOE955306
|
[7] |
Hexagon screw
|
|
| 5. |
VOE192288
|
[9] |
Washer
|
|
| 6. |
VOE468511
|
[9] |
Bushing
|
|
| 7. |
VOE13945244
|
[9] |
Washer
|
|
| 8. |
VOE849042
|
[9] |
Sleeve
|
|
| 9. |
VOE1543172
|
[6] |
Sealing ring
|
|
| 10. |
VOE13955310
|
[8] |
Screw
|
L = 130 MM
|
| |
VOE955313
|
[4] |
Hexagon screw
|
L = 160 MM
E PROD
|
| |
VOE60110265
|
[4] |
Hexagon screw
|
L = 170 MM
L PROD
|
| 11. |
VOE13955894
|
[12] |
Washer
|
|
| 12. |
VOE1543534
|
[1] |
Exhaust pipe
|
|
| 13. |
VOE470323
|
[4] |
Sealing ring
|
|
| 14. |
VOE11032263
|
[1] |
Exhaust pipe
|
|
| 15. |
VOE8130038
|
[6] |
Gasket
|
|
| 16. |
VOE13965189
|
[24] |
Screw
|
|
| 17. |
VOE1546517
|
[24] |
Spacer sleeve
|
|
| 18. |
VOE479977
|
[1] |
Plug
|
|
