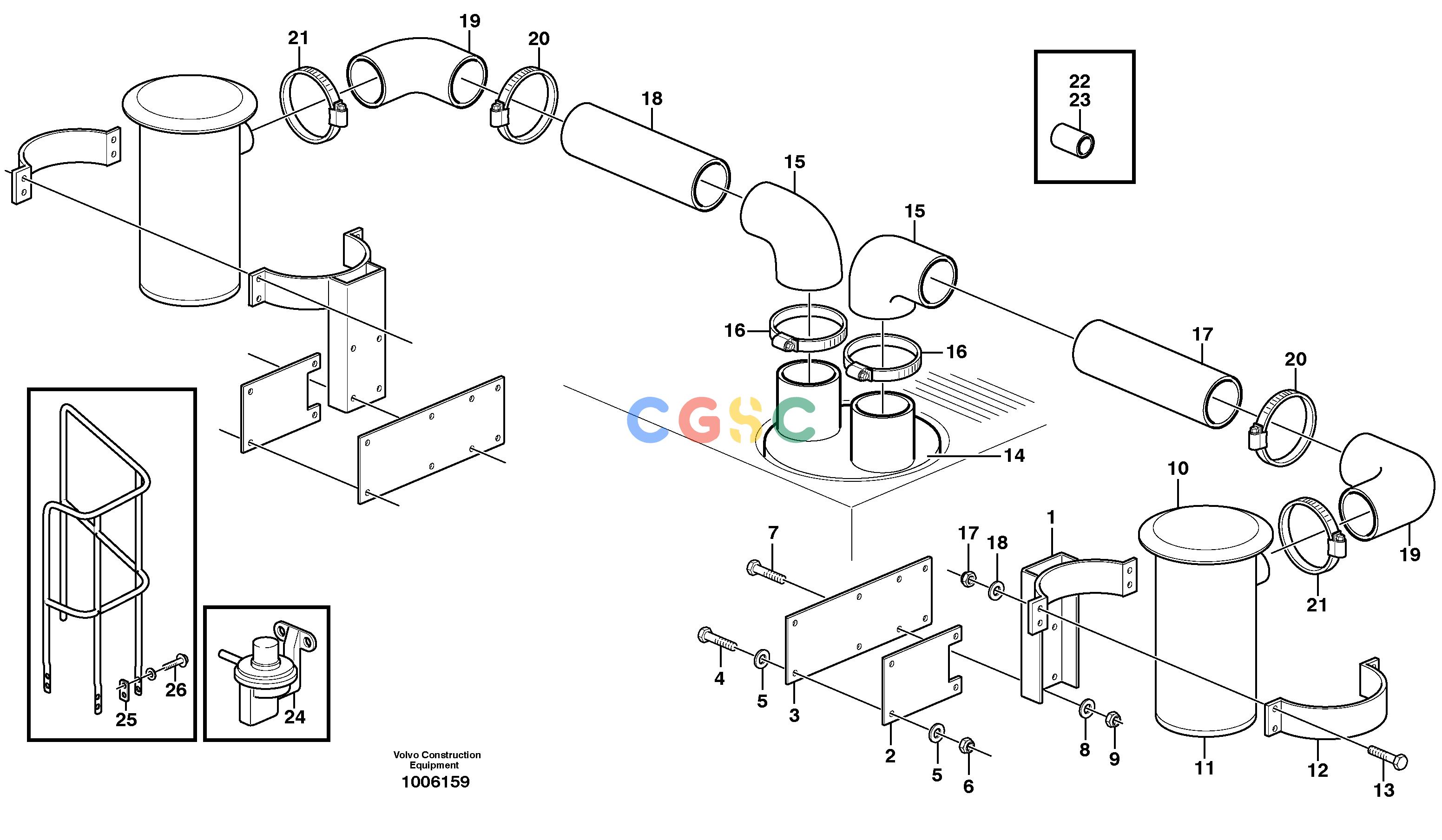

沃尔沃零件查询L330D Oil bath air filter with fitting partsNone NoneNone93793Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
438 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11026847
|
[2] |
Attachment
|
|
| 2. |
VOE11141091
|
[2] |
Plate
|
|
| 3. |
VOE11141092
|
[2] |
Plate
|
|
| 4. |
VOE981459
|
[8] |
Flange screw
|
|
| 5. |
VOE11160897
|
[16] |
Washer
|
|
| 6. |
VOE13967934
|
[8] |
Flange lock nut
|
|
| 7. |
VOE13965185
|
[8] |
Screw
|
|
| 8. |
VOE930842
|
[16] |
Plain washer
|
|
| 9. |
VOE13971098
|
[16] |
Flange nut
|
|
| 10. |
VOE11110260
|
[2] |
Cover
|
|
| 11. |
VOE11033550
|
[2] |
Oil bath air cleaner
|
|
| 12. |
VOE11026851
|
[2] |
Cap
|
|
| 13. |
VOE60113098
|
[8] |
Flange screw
|
|
| 14. |
VOE11109966
|
[1] |
Adapter
|
|
| 15. |
VOE11141093
|
[2] |
Elbow
|
|
| 16. |
VOE930918
|
[4] |
Hose clamp
|
|
| 17. |
VOE11141089
|
[1] |
Tube
|
|
| 18. |
VOE11141090
|
[1] |
Tube
|
|
| 19. |
VOE11079636
|
[2] |
Elbow
|
|
| 20. |
VOE930919
|
[2] |
Hose clamp
|
|
| 21. |
VOE930920
|
[2] |
Hose clamp
|
|
| 22. |
VOE11141088
|
[1] |
Rubber sleeve
|
|
| 23. |
VOE983095
|
[1] |
Hose clamp
|
|
| 24. |
VOE11039352
|
[1] |
Vacuum switch
|
|
| 25. |
VOE11160976
|
[4] |
Plate
|
|
| 26. |
VOE60113111
|
[8] |
Flange screw
|
|
