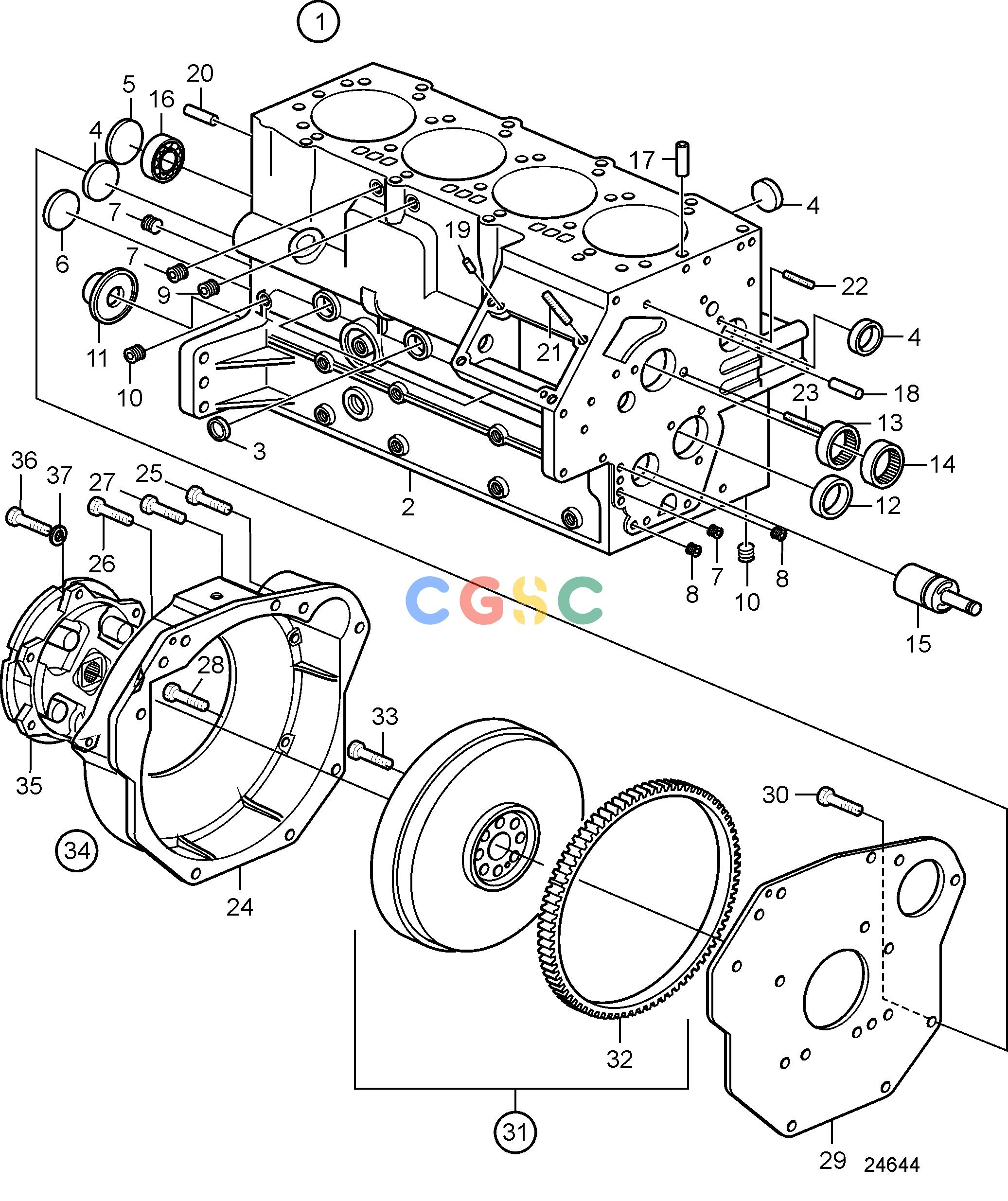

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FEngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3583523
|
[1] |
Cylinder block
|
|
| 3. |
3583696
|
[2] |
Expansion plug
|
|
| 4. |
3583697
|
[5] |
Expansion plug
|
|
| 5. |
861813
|
[1] |
Expansion plug
|
|
| 6. |
3809690
|
[1] |
Plug
|
(3583698)
|
| 7. |
861806
|
[3] |
Plug
|
|
| 8. |
3580455
|
[2] |
Plug
|
|
| 9. |
3807215
|
[3] |
Plug
|
(3580456)
|
| 10. |
3583699
|
[2] |
Plug
|
|
| 11. |
3583700
|
[1] |
Seal
|
|
| 12. |
3583701
|
[1] |
Bushing
|
|
| 13. |
3583702
|
[1] |
Bearing
|
|
| 14. |
3583703
|
[1] |
Bearing
|
|
| 15. |
3583704
|
[1] |
Shaft
|
Replaced by 21541021
|
| 15. |
21541021
|
[1] |
Oil pump
|
|
| 16. |
861812
|
[1] |
Bearing
|
|
| 17. |
861818
|
[2] |
Spring pin
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
3583705
|
[3] |
Stud
|
|
| 22. |
3583708
|
[1] |
Stud
|
|
| 23. |
3583709
|
[1] |
Stud
|
|
| 24. |
3587360
|
[1] |
Flywheel housing
|
|
| 25. |
3583726
|
[2] |
Screw
|
|
| 26. |
11998890
|
[4] |
Screw
|
|
| 27. |
3583727
|
[6] |
Screw
|
|
| 28. |
3583728
|
[2] |
Screw
|
|
| 29. |
3583724
|
[1] |
Plate
|
|
| 30. |
861870
|
[10] |
Screw
|
|
| 31. |
3583691
|
[1] |
Flywheel
|
|
| 32. |
3583850
|
[1] |
Gear ring
|
|
| 33. |
3580561
|
[6] |
Screw
|
|
| 34. |
3812226
|
[1] |
Flexible coupling
|
|
| 35. |
3889314
|
[1] |
Flexible coupling
|
|
| 36. |
959223
|
[6] |
Hex. socket screw
|
(3808569)
|
| 37. |
3808568
|
[6] |
Spacer washer
|
|
