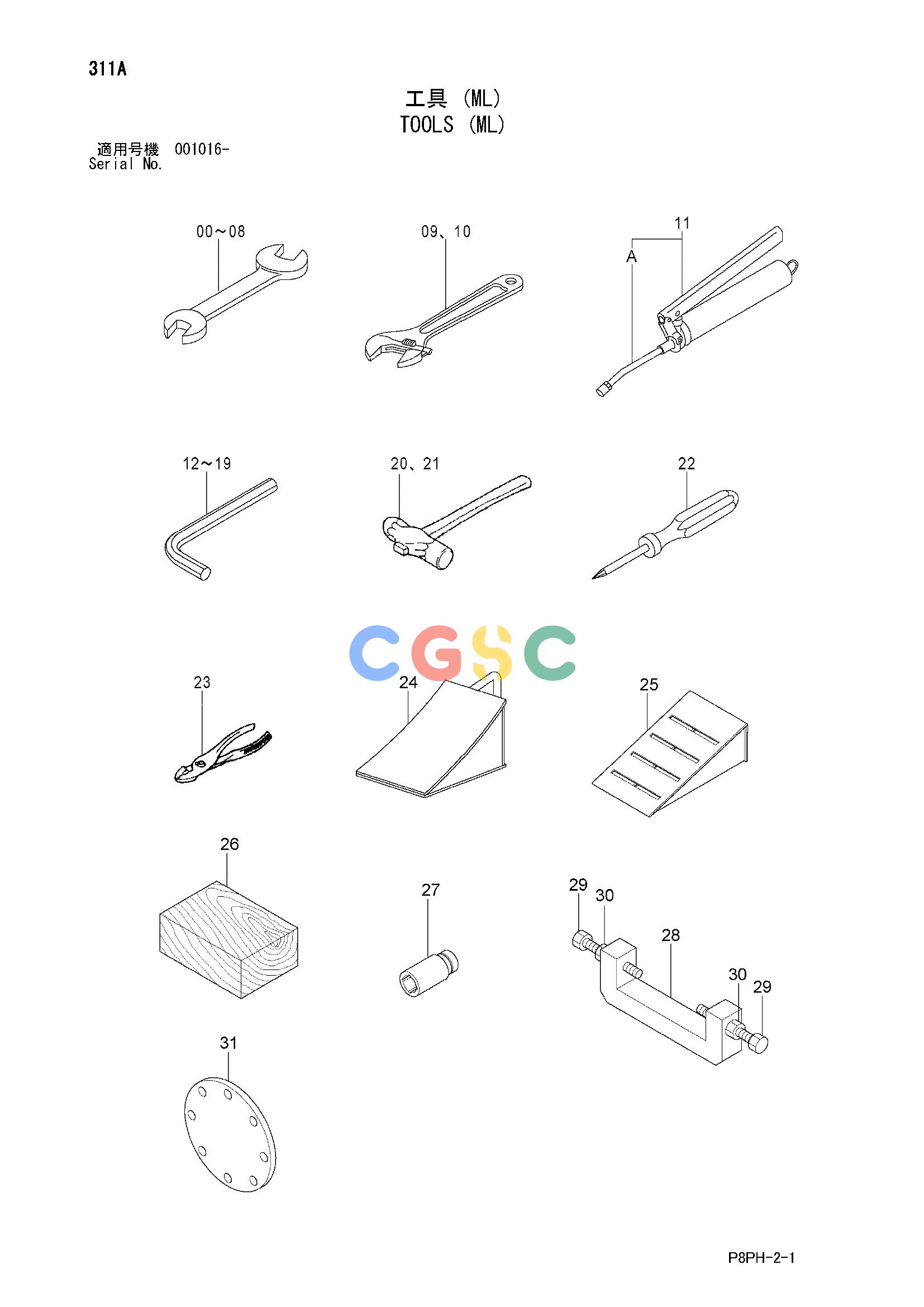

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4200435 | [1] | SPANNER (10 X 12) | |
| 01. | 4200436 | [1] | SPANNER (13 X 17) | |
| 02. | 989858 | [1] | SPANNER (19 X 22) | |
| 03. | 989859 | [1] | SPANNER (27 X 24) | |
| 04. | 989860 | [1] | SPANNER (32 X 30) | |
| 05. | 4231526 | [1] | SPANNER (9/16 X 5/8) | |
| 06. | 4231527 | [1] | SPANNER (19/32 X 11/16) | |
| 07. | 4231528 | [1] | SPANNER (3/4 X 13/16) | |
| 08. | 4231529 | [1] | SPANNER (7/8 X 15/16) | |
| 09. | 4200438 | [1] | WRENCH;ADJUST. (200) | |
| 10. | 4505971 | [1] | WRENCH;ADJUST. (375) | |
| 11. | 4131548 | [1] | GUN;GREASE | (YAMADA CORPORATION YC-650ZC) |
| 11A. | 4223527 | [1] | NOZZLE | (YAMADA CORPORATION CNP-2T) |
| 11. | 4131548 | [1] | GUN;GREASE | |
| 11A. | 4223527 | [1] | NOZZLE | |
| 12. | 4038719 | [1] | WRENCH;BAR (3) | |
| 13. | 4020977 | [1] | WRENCH;BAR (4) | |
| 14. | 985709 | [1] | WRENCH;BAR (5) | |
| 15. | 985710 | [1] | WRENCH;BAR (6) | |
| 16. | 958393 | [1] | WRENCH;BAR (8) | |
| 17. | 958394 | [1] | WRENCH;BAR (10) | |
| 18. | 4045580 | [1] | WRENCH;BAR (12) | |
| 19. | 4004229 | [1] | WRENCH;BAR (14) | |
| 20. | 934561 | [1] | HAMMER (3lbs-1.4kg) | |
| 21. | 4377429 | [1] | HAMMER (5lbs-2.3kg) | |
| 22. | 4200434 | [1] | S.DRIVER | |
| 23. | 949490 | [1] | PLIER (200) | |
| 24. | Y801727 | [2] | WEDGE | |
| 25. | Y801916 | [2] | SLOPE | |
| 26. | Y410662 | [4] | PILLOW WOOD | |
| 27. | Y415627 | [1] | SOCKET | (for TIRE) |
| 28. | Y411104 | [2] | BRACKET | (for LIFTING) |
| 29. | J922090 | [4] | BOLT | (for LIFTING) |
| 30. | J950020 | [4] | NUT | (for LIFTING) |
| 31. | Y415628 | [2] | COVER | (for AXLE;OPTION) |
