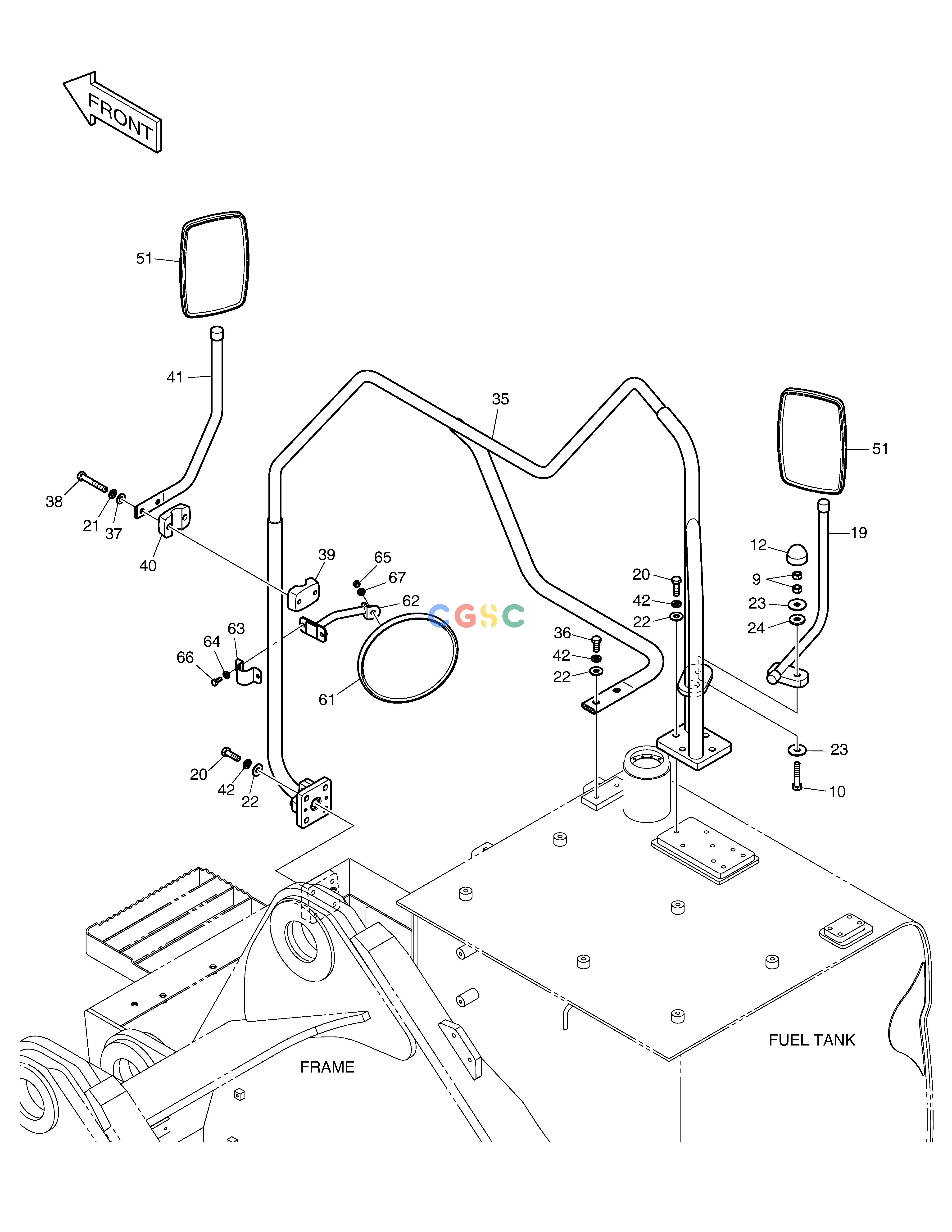

斗山零件查询HANDRAIL DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-17363
|
[-] |
|
|
| 10. |
S0561066
|
[1] |
BOLT
|
|
| 12. |
161-00580
|
[1] |
CAP,RUBBER
|
|
| 19. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 20. |
S0560566
|
[8] |
BOLT
|
|
| 21. |
S5102703
|
[2] |
WASHER
|
|
| 22. |
DS0401239
|
[10] |
|
|
| 23. |
2114-1058D68
|
[2] |
WASHER
|
|
| 24. |
2114-1058D54
|
[1] |
WASHER
|
|
| 35. |
101582-00266B
|
[1] |
|
|
| 35. |
101582-00266A
|
[1] |
|
101582-00266B
|
| 36. |
S0515366
|
[2] |
BOLT
|
|
| 37. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 38. |
S0561353
|
[2] |
BOLT M12X1.75X80
|
|
| 39. |
120203-00403
|
[1] |
|
|
| 40. |
120203-00402
|
[1] |
|
|
| 41. |
101582-00406
|
[1] |
|
|
| 42. |
S5102705
|
[10] |
WASHER,SPRING
|
|
| 51. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
| 61. |
110969-00075
|
[1] |
|
|
| 62. |
101582-00254A
|
[1] |
|
|
| 63. |
250201-01707A
|
[1] |
|
|
| 64. |
2114-1898D2
|
[2] |
WASHER
|
|
| 65. |
2121-1311D4
|
[1] |
NUT
|
|
| 66. |
2120-2166D5
|
[2] |
BOLT
|
|
| 67. |
2114-1898D1
|
[1] |
WASHER
|
|
| 9. |
S4012733
|
[2] |
NUT
|
|
