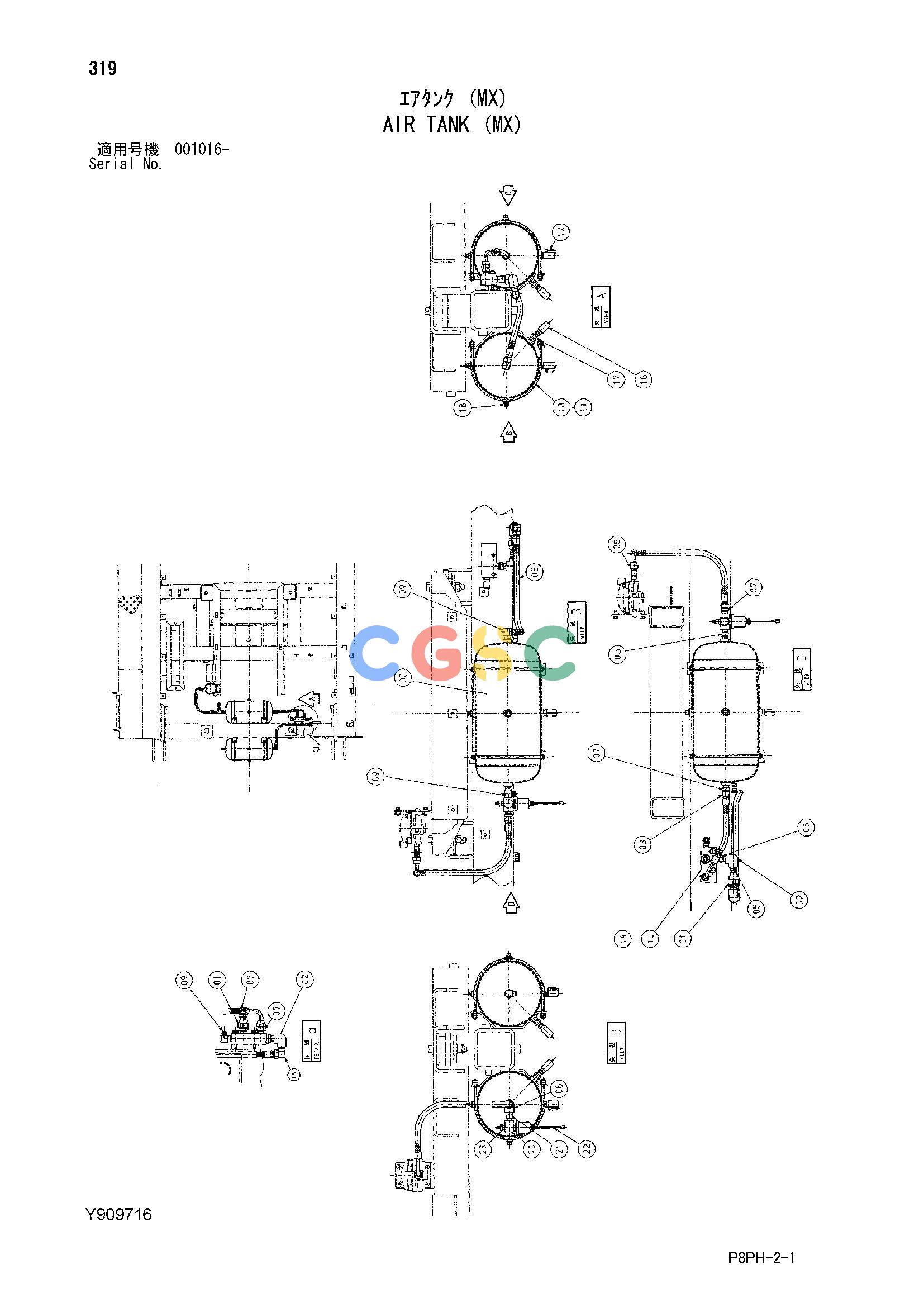

日立零件查询（AR2000）AIR TANK (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
125 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4216547 | [2] | TANK;AIR | |
| 01. | Y408794 | [2] | VALVE;CHECK | |
| 02. | 94-0617 | [2] | ELBOW;S | |
| 03. | 4417398 | [1] | HOSE | |
| 05. | 94-1703 | [3] | ADAPTER;S | |
| 06. | 94-0662 | [1] | TEE;S | |
| 07. | 4221287 | [4] | ADAPTER;S | |
| 08. | 4305005 | [1] | HOSE | |
| 09. | 4154658 | [4] | ELBOW;S | |
| 10. | Y409049 | [4] | BOLT;U | |
| 11. | J950010 | [16] | NUT | |
| 12. | 4216548 | [2] | VALVE;DRAIN | |
| 13. | Y301818 | [1] | BLOCK | |
| 14. | J271060 | [2] | BOLT;SEMS | |
| 14A. | J901060 | [1] | BOLT | |
| 14B. | J222010 | [1] | WASHER | |
| 16. | 986952 | [2] | VALVE;SAFETY | |
| 17. | 94-1608 | [2] | REDUCER | |
| 18. | 94-2024 | [4] | PLUG | |
| 20. | Y412420 | [1] | DIVIDER | |
| 21. | 94-1902 | [1] | ADAPTER;S | |
| 22. | 4168339 | [1] | UNIT | |
| 23. | 4215649 | [1] | ADAPTER;S | |
| 25. | 4283023 | [1] | HOSE | |
