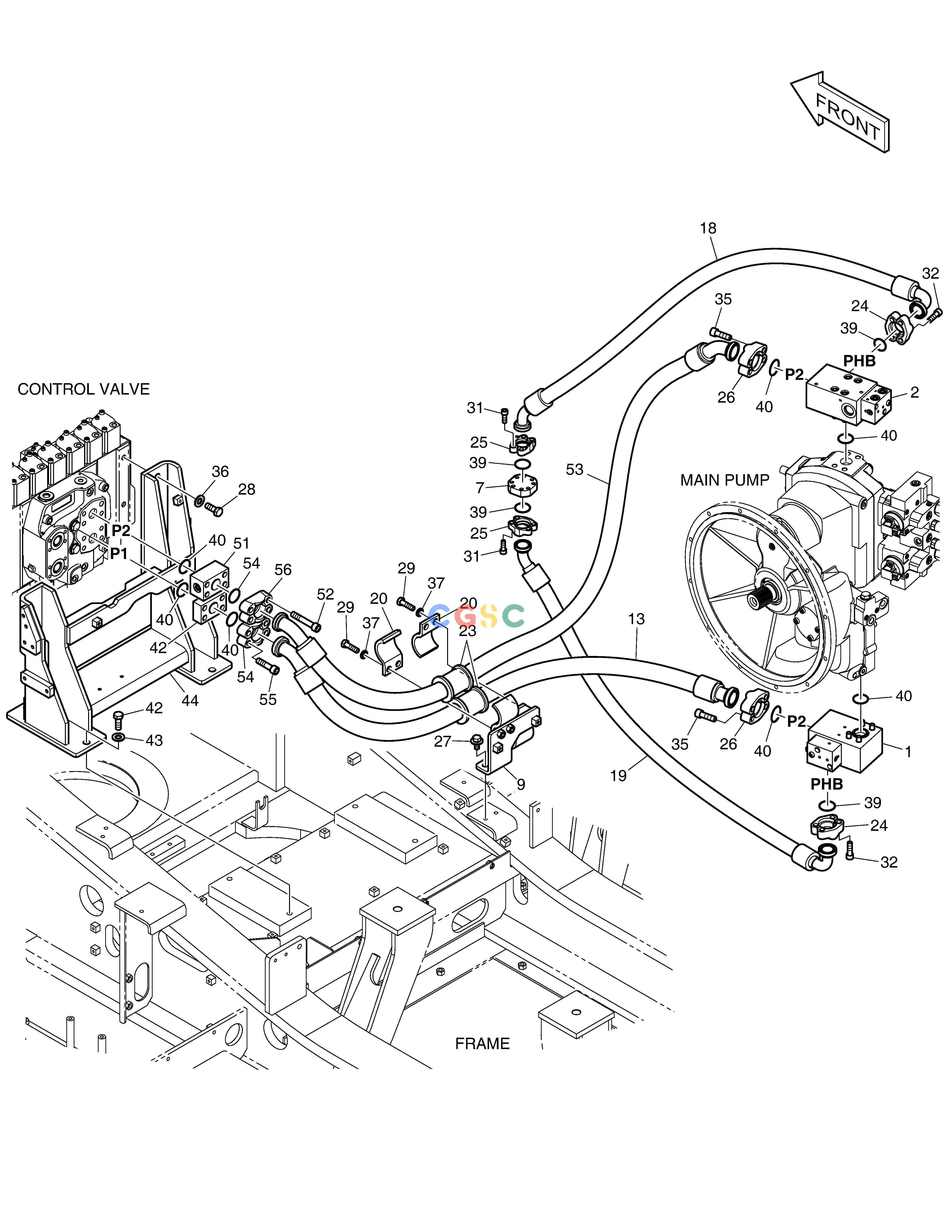

斗山零件查询MAIN PIPING(1) - PUMP DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03823A
|
[-] |
|
|
| 1. |
410126-00021A
|
[1] |
|
|
| 13. |
DS2039218
|
[1] |
|
|
| 18. |
DS2043160
|
[1] |
|
|
| 19. |
DS2043161
|
[1] |
|
|
| 2. |
410126-00023A
|
[1] |
|
|
| 20. |
K1004001
|
[2] |
CLAMP;PIPE
|
|
| 23. |
161-00280
|
[2] |
RUBBER
|
|
| 24. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 25. |
2181-9083
|
[4] |
FLANGE;SPLIT
|
|
| 26. |
2181-9086
|
[4] |
FLANGE;SPLIT
|
|
| 27. |
DS0025018
|
[2] |
BOLT
|
|
| 28. |
S0521466
|
[3] |
BOLT
|
|
| 29. |
S0560666
|
[4] |
BOLT
|
|
| 31. |
S2212266
|
[8] |
BOLT
|
|
| 32. |
S2215466
|
[8] |
BOLT
|
|
| 35. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 36. |
4114-1791A
|
[3] |
WASHER;HARD
|
|
| 37. |
S5102703
|
[4] |
WASHER
|
|
| 39. |
2180-1026D19
|
[4] |
O-RING
|
|
| 40. |
2180-1026D23
|
[8] |
O-RING
|
|
| 42. |
S0521466
|
[4] |
BOLT
|
|
| 43. |
2114-1816A
|
[4] |
WASHER
|
|
| 44. |
110425-00076G
|
[1] |
|
|
| 51. |
100201-00913
|
[1] |
|
|
| 52. |
100201-00068C
|
[1] |
|
|
| 53. |
DS2048039
|
[1] |
|
|
| 54. |
K1014858
|
[4] |
FLANGE;SPLIT
|
|
| 55. |
S2219166
|
[4] |
BOLT;SOCKET M14X2.0X75
|
|
| 56. |
S2219666
|
[4] |
|
|
| 7. |
100201-00016A
|
[1] |
|
|
| 9. |
110420-00176A
|
[1] |
|
|
