纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.701[01]) - BATTERY 100AH - OPTIONAL CODE 76071289 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1005 次

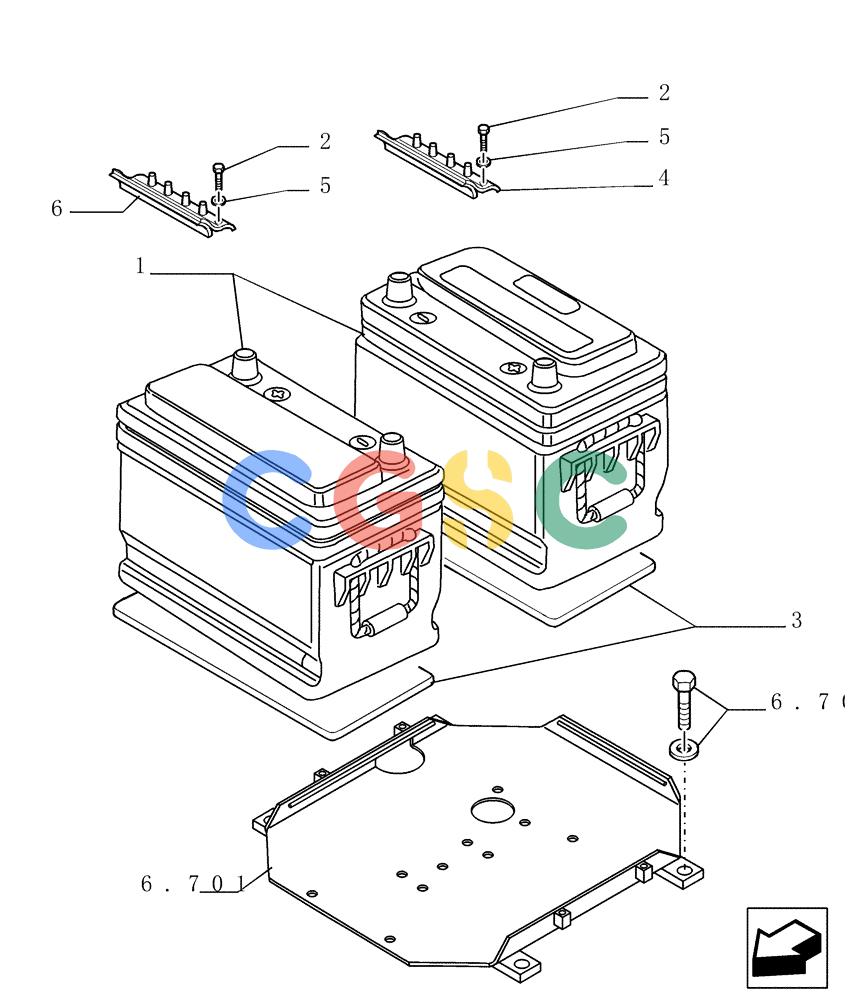

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | F565DSW | [2] | WET BATTERY,12V, 700CCA | MKT12V - 100AH - 440A |
| 2. | 16043631 | [8] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 3. | 4991458 | [2] | SUPPORT | LEC |
| 4. | 79084347 | [2] | BRACKET | LEC |
| 5. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 6. | 79006036 | [2] | BRACKET | LEC |
