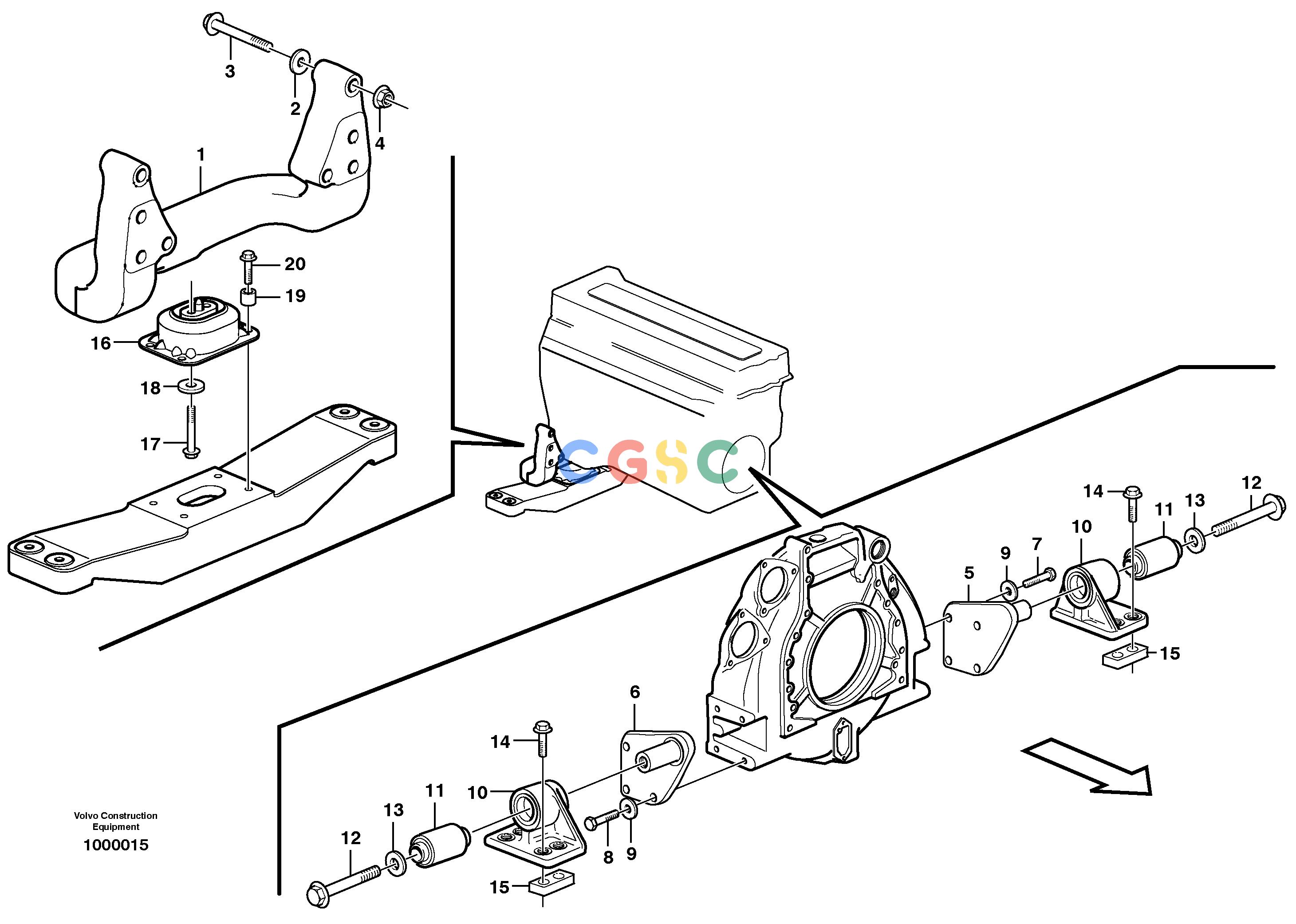

沃尔沃零件查询L330E Engine mountingNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032210
|
[1] |
Engine mounting
|
|
| 2. |
VOE955899
|
[8] |
Plain washer
|
|
| 3. |
VOE970941
|
[2] |
Hexagon screw
|
L = 180 MM
|
| |
VOE970942
|
[5] |
Hexagon screw
|
L = 200 MM
|
| 4. |
VOE979014
|
[1] |
Flange nut
|
|
| 5. |
VOE11301207
|
[1] |
Anchorage
|
LH
|
| 6. |
VOE11301208
|
[1] |
Anchorage
|
RH
|
| 7. |
VOE955369
|
[4] |
Hexagon screw
|
|
| 8. |
VOE60113132
|
[4] |
Flange screw
|
|
| 9. |
VOE930845
|
[8] |
Plain washer
|
|
| 10. |
VOE11154068
|
[2] |
Attachment
|
|
| 11. |
VOE11130778
|
[2] |
Rubber element
|
|
| 12. |
VOE60113480
|
[2] |
Flange screw
|
|
| 13. |
VOE11024597
|
[2] |
Washer
|
|
| 14. |
VOE968437
|
[8] |
Flange screw
|
|
| 15. |
VOE4898544
|
[4] |
Nut plate
|
|
| 16. |
VOE20503551
|
[1] |
Rubber cushion
|
|
| 17. |
VOE966362
|
[2] |
Flange screw
|
|
| 18. |
VOE930844
|
[2] |
Plain washer
|
|
| 19. |
VOE60113599
|
[4] |
Spacer sleeve
|
|
| 20. |
VOE60113111
|
[4] |
Flange screw
|
|
