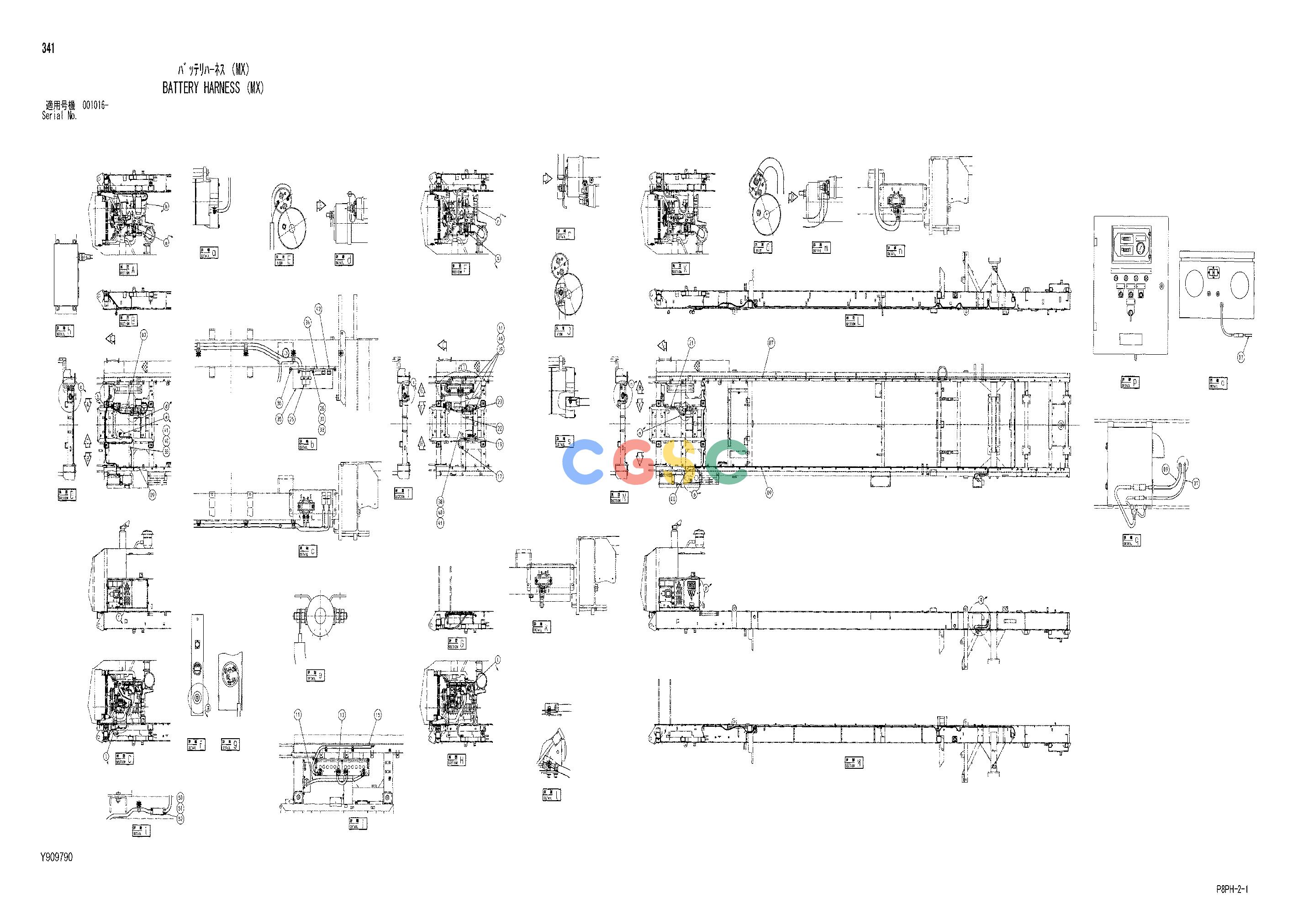

日立零件查询（AR2000）BATTERY HARNESS (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
253 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414263 | [1] | HARNESS;WIRE | |
| 07. | Y414264 | [1] | HARNESS;WIRE | |
| 09. | Y414265 | [1] | HARNESS;WIRE | |
| 11. | Y414268 | [1] | HARNESS;WIRE | |
| 13. | Y414269 | [1] | HARNESS;WIRE | |
| 15. | Y414270 | [1] | HARNESS;WIRE | |
| 17. | Y414271 | [1] | HARNESS;WIRE | |
| 19. | Y414272 | [1] | HARNESS;WIRE | |
| 21. | Y414273 | [1] | HARNESS;WIRE | |
| 22. | Y414274 | [1] | HARNESS;WIRE | |
| 23. | Y414275 | [1] | HARNESS;WIRE | |
| 25. | 4255762 | [1] | RELAY;BATTERY | |
| 26. | J900820 | [2] | BOLT | |
| 30. | A590908 | [2] | WASHER;SPRING | |
| 33. | A590108 | [2] | WASHER;PLANE | |
| 34. | Y802184 | [1] | BRACKET | |
| 35. | Y200386 | [1] | COVER | |
| 36. | J260812 | [4] | BOLT;SEMS | |
| 36A. | J900812 | [1] | BOLT | |
| 36B. | A590108 | [1] | WASHER;PLANE | |
| 38. | J901040 | [2] | BOLT | |
| 39. | J901030 | [3] | BOLT | |
| 40. | A590110 | [5] | WASHER;PLANE | |
| 41. | A590910 | [5] | WASHER;SPRING | |
| 42. | Y412688 | [2] | CLIP | |
| 50. | A590104 | [2] | WASHER;PLANE | |
| 51. | A590904 | [2] | WASHER;SPRING | |
| 52. | M430410 | [2] | SCREW | |
