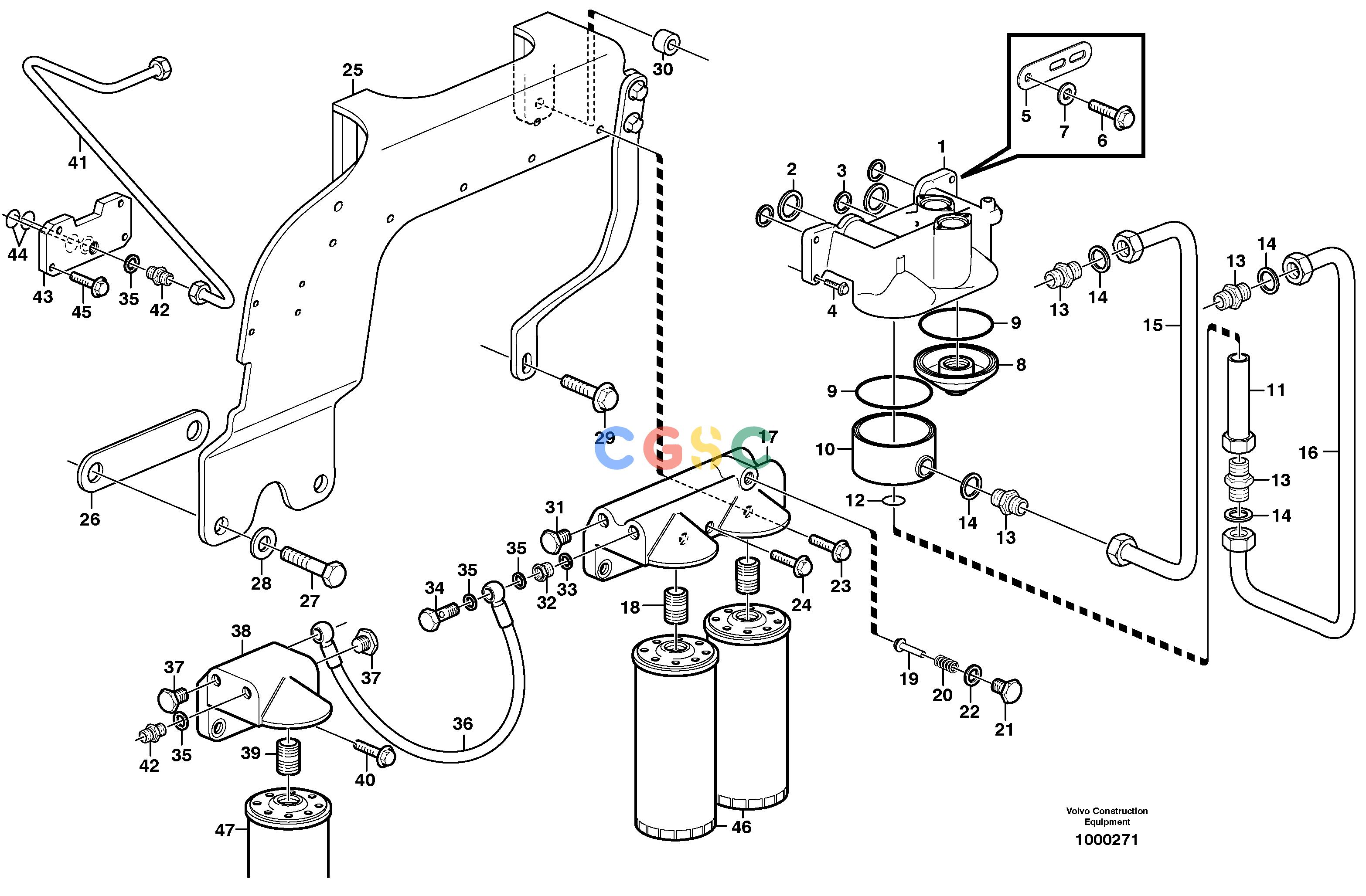

沃尔沃零件查询L330E Oil filter with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032232
|
[1] |
Housing
|
|
| 2. |
VOE8192187
|
[2] |
Sealing ring
|
|
| 3. |
VOE8192189
|
[3] |
Sealing ring
|
|
| 4. |
VOE60113082
|
[3] |
Flange screw
|
|
| 5. |
VOE13965540
|
[1] |
Bracket
|
|
| 6. |
VOE946470
|
[1] |
Flange screw
|
|
| 7. |
VOE930840
|
[1] |
Plain washer
|
|
| 8. |
VOE3812511
|
[1] |
Casing
|
|
| 9. |
VOE13948981
|
[2] |
O-ring
|
|
| 10. |
VOE11127476
|
[1] |
Cover
|
|
| 11. |
VOE11032236
|
[1] |
Reduction nipple
|
|
| 12. |
VOE944126
|
[1] |
O-ring
|
|
| 13. |
VOE941582
|
[4] |
Nipple
|
|
| 14. |
VOE982508
|
[4] |
Gasket
|
|
| 15. |
VOE11032195
|
[1] |
Oil pipe
|
|
| 16. |
VOE11032196
|
[1] |
Oil pipe
|
|
| 17. |
VOE11127484
|
[1] |
Oil filter housing
|
|
| 18. |
VOE466623
|
[1] |
Nipple
|
|
| 19. |
VOE471085
|
[1] |
Valve cone
|
|
| 20. |
VOE466653
|
[1] |
Compression spring
|
|
| 21. |
VOE471598
|
[1] |
Plug
|
|
| 22. |
VOE976932
|
[1] |
Gasket
|
|
| 23. |
VOE946329
|
[3] |
Flange screw
|
|
| 24. |
VOE969313
|
[1] |
Flange screw
|
|
| 25. |
VOE11032274
|
[1] |
Bracket
|
|
| 26. |
VOE11032211
|
[1] |
Spacer
|
|
| 27. |
VOE13955366
|
[2] |
Screw
|
|
| 28. |
VOE13955900
|
[2] |
Washer
|
|
| 29. |
VOE13945444
|
[1] |
Screw
|
|
| 30. |
VOE820917
|
[2] |
Spacer sleeve
|
|
| 31. |
VOE979947
|
[1] |
Plug
|
|
| 32. |
VOE11127561
|
[1] |
Reduction
|
|
| 33. |
VOE982508
|
[1] |
Gasket
|
|
| 34. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 35. |
VOE976929
|
[6] |
Gasket
|
|
| 36. |
VOE11030425
|
[1] |
Pressure hose
|
|
| 37. |
VOE13968062
|
[2] |
Plug
|
|
| 38. |
VOE11127104
|
[1] |
Oil filter housing
|
|
| 39. |
VOE469904
|
[1] |
Nipple
|
|
| 40. |
VOE946329
|
[3] |
Flange screw
|
|
| 41. |
VOE11032197
|
[1] |
Oil pipe
|
|
| 42. |
VOE941754
|
[2] |
Nipple
|
|
| 43. |
VOE11032205
|
[1] |
Bracket
|
|
| 44. |
VOE1543576
|
[2] |
Sealing ring
|
|
| 45. |
VOE13945444
|
[4] |
Screw
|
|
| 46. |
VOE21707133
|
[2] |
Oil filter
|
|
| 47. |
VOE21707132
|
[1] |
Oil filter
|
|
