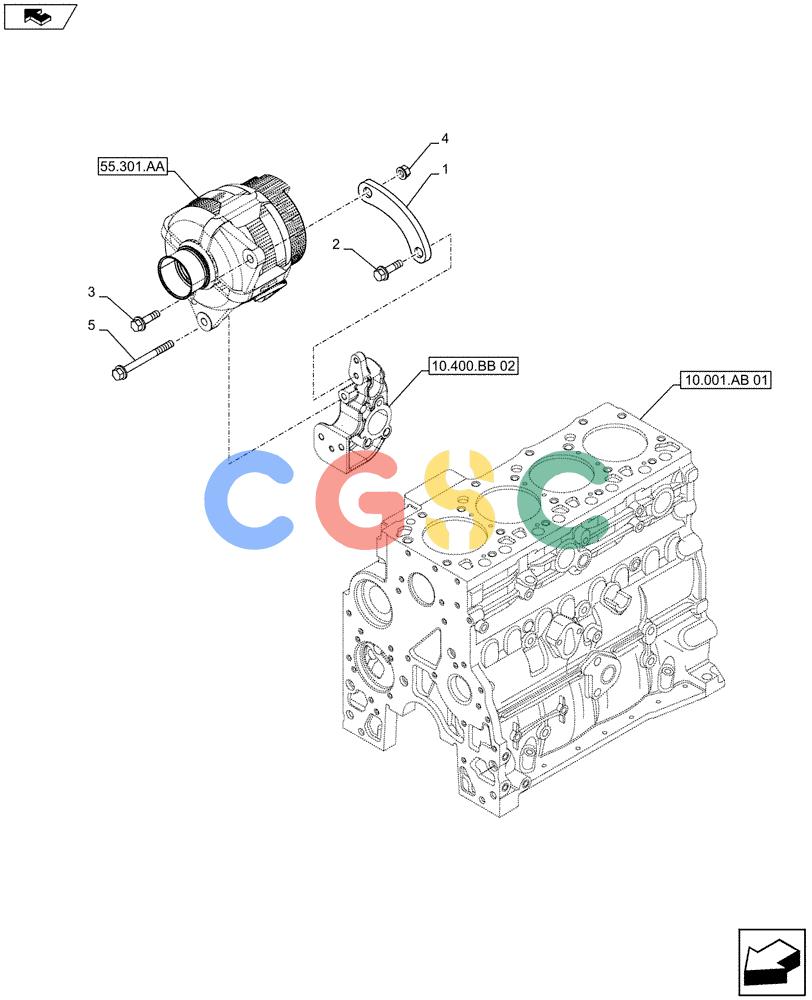

神钢零件查询(F4GE9484D J620) - ENGINE - 5801590401 - YM02P00016P1 (1/07-12/10) (55.301.AB) - ALTERNATOR, SUPPORT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892318 | [1] | ALTERNATOR,24V, 70A, W/ Pulley | TORASSY, Alternative parts |
| 1. | 4892318R | [1] | REMAN-ALTERNATOR | TORReman for New PN 4892318 |
| 1. | 4892318C | [1] | CORE-ALTERNATOR | TORReturn Number |
| 1. | 2857012 | [1] | BRACKET | TOR Superseded by part number: |
| 2. | 4895291 | [1] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 3. | 4899093 | [1] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS Superseded by part number: 87778358 |
| 4. | 4895166 | [1] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BAS |
| 5. | 4899122 | [1] | BOLT,Flng, M10 x 1.5 x 110mm | TOR |
