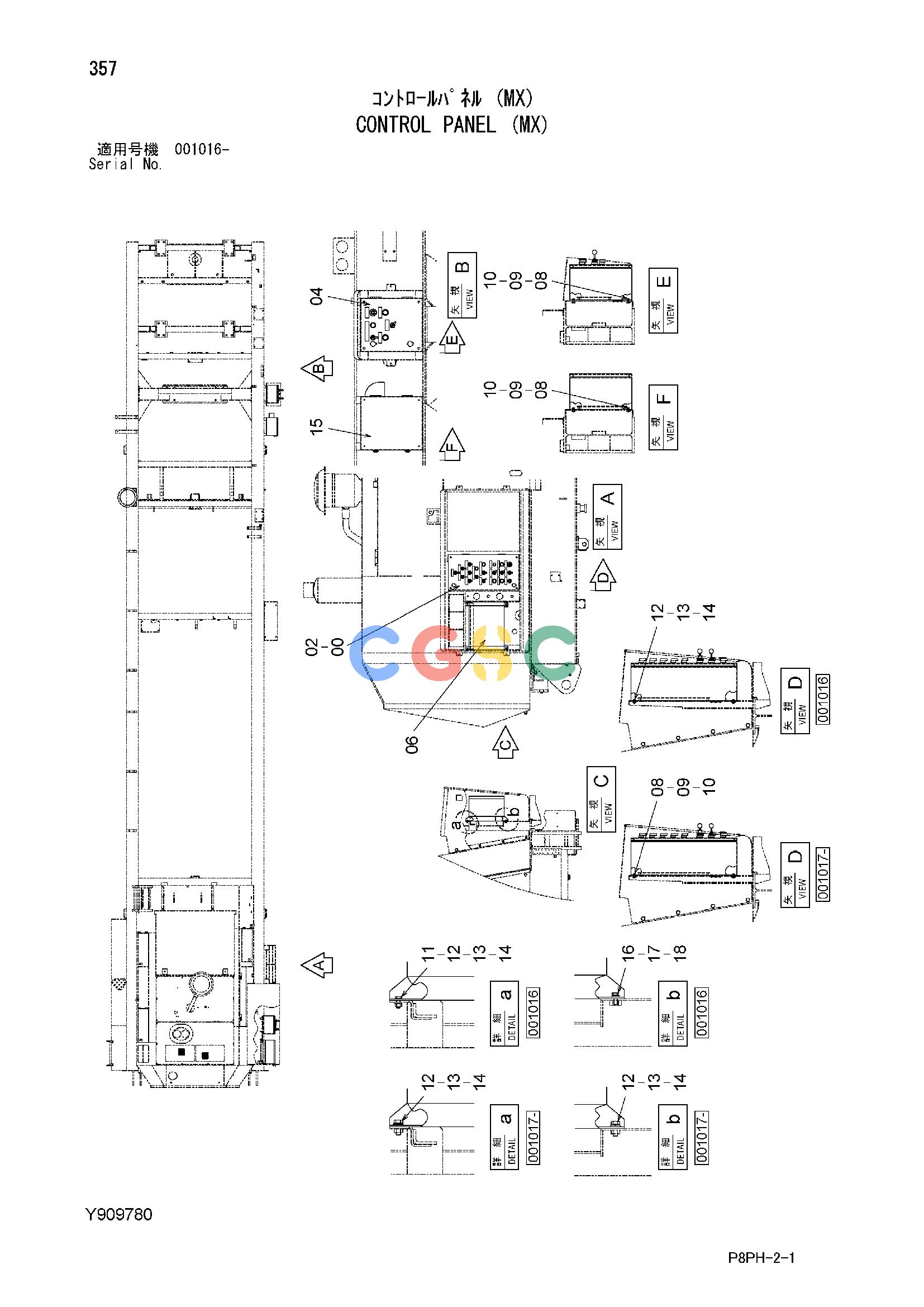

日立零件查询（AR2000）CONTROL PANEL (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
356 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y412801 | [1] | PANEL;CONTROL1 | |
| 02. | Y411275 | [1] | CONTROLLER | |
| 04. | Y412802 | [1] | PANEL;CONTROL1 | |
| 06. | Y412465 | [1] | CONTROLLER | |
| 08. | J900620 | [8] | BOLT | |
| 08. | J900620 | [12] | BOLT | |
| 09. | A590106 | [8] | WASHER;PLANE | |
| 09. | A590106 | [12] | WASHER;PLANE | |
| 10. | A590906 | [8] | WASHER;SPRING | |
| 10. | A590906 | [12] | WASHER;SPRING | |
| 11. | J950008 | [2] | NUT | |
| 12. | A590908 | [6] | WASHER;SPRING | |
| 12. | A590908 | [4] | WASHER;SPRING | |
| 13. | A590108 | [6] | WASHER;PLANE | |
| 13. | A590108 | [4] | WASHER;PLANE | |
| 14. | J900820 | [6] | BOLT | |
| 14. | J900820 | [4] | BOLT | |
| 15. | Y413256 | [1] | PANEL;CONTROL | |
| 16. | J901020 | [2] | BOLT | |
| 17. | A590110 | [2] | WASHER;PLANE | |
| 18. | A590910 | [2] | WASHER;SPRING | |
