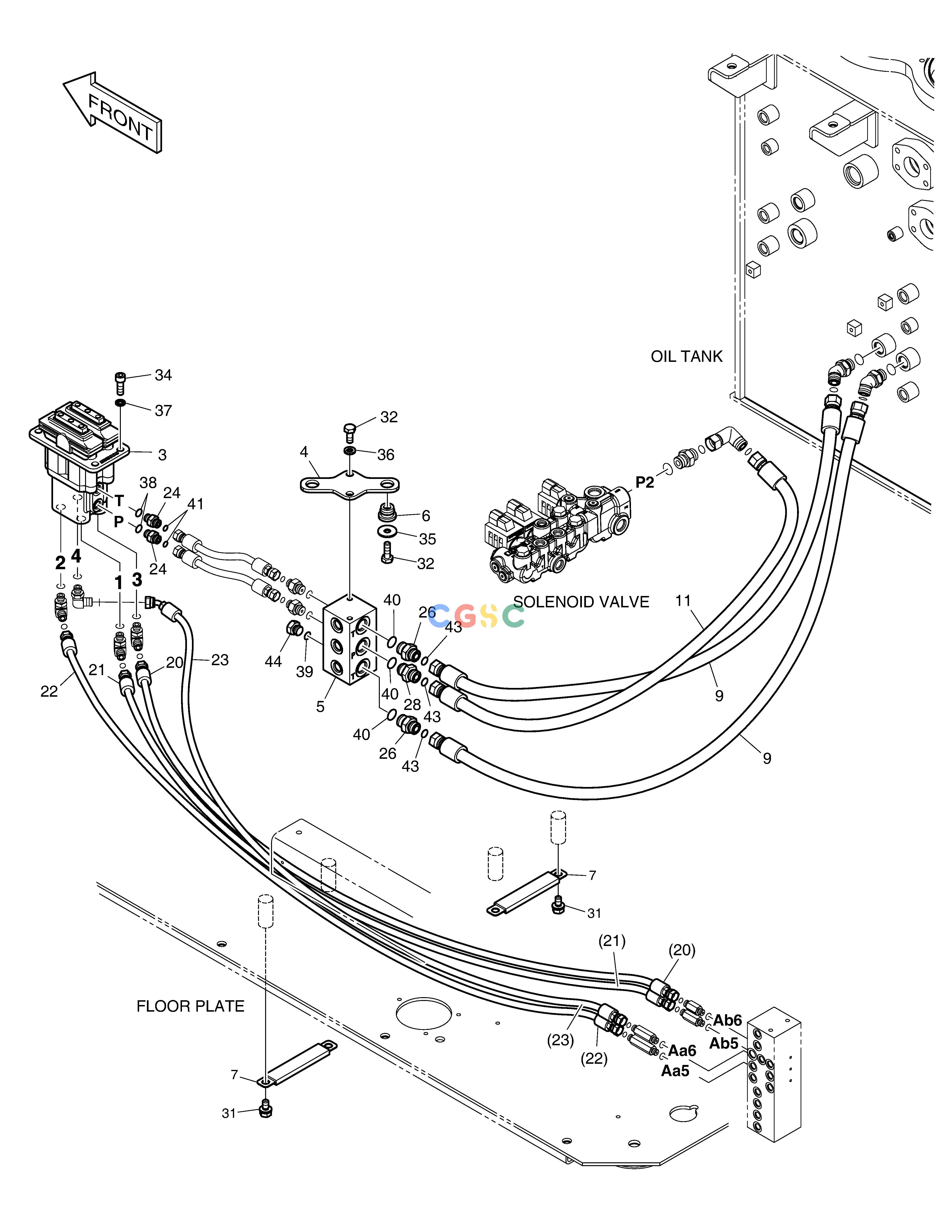

斗山零件查询PILOT PIPING(8) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03857C
|
[-] |
|
|
| -. |
420212-03857M
|
[-] |
|
|
| 11. |
DS20111327
|
[1] |
|
|
| 20. |
DS2119163
|
[1] |
|
|
| 21. |
DS2119196
|
[1] |
|
|
| 22. |
DS2119162
|
[1] |
|
|
| 23. |
DS2120087
|
[1] |
|
|
| 24. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 26. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 28. |
430201-00108
|
[1] |
|
|
| 3. |
410119-00003
|
[1] |
|
|
| 31. |
DS0025042
|
[4] |
BOLT
|
|
| 32. |
S0512266
|
[4] |
BOLT
|
|
| 34. |
S2212266
|
[4] |
BOLT
|
|
| 35. |
2114-1058D10
|
[2] |
WASHER
|
|
| 36. |
S5102603
|
[2] |
. WASHER
|
|
| 37. |
S5110603
|
[4] |
WASHER
|
|
| 38. |
S8000111
|
[2] |
O-RING
|
|
| 39. |
S8000141
|
[1] |
O-RING
|
|
| 4. |
250105-00197A
|
[1] |
|
|
| 40. |
S8000181
|
[3] |
O-RING
|
|
| 41. |
S8030041
|
[2] |
O-RING
|
|
| 43. |
S8030081
|
[3] |
O-RING
|
|
| 44. |
DS2901012
|
[1] |
PLUG
|
|
| 44. |
2181-1950D2
|
[1] |
PLUG
|
DS2901012
|
| 5. |
100201-00184
|
[1] |
|
|
| 6. |
198-00016
|
[2] |
RUBBER
|
|
| 7. |
120202-00009
|
[2] |
|
|
| 9. |
DS20111382
|
[2] |
|
|
