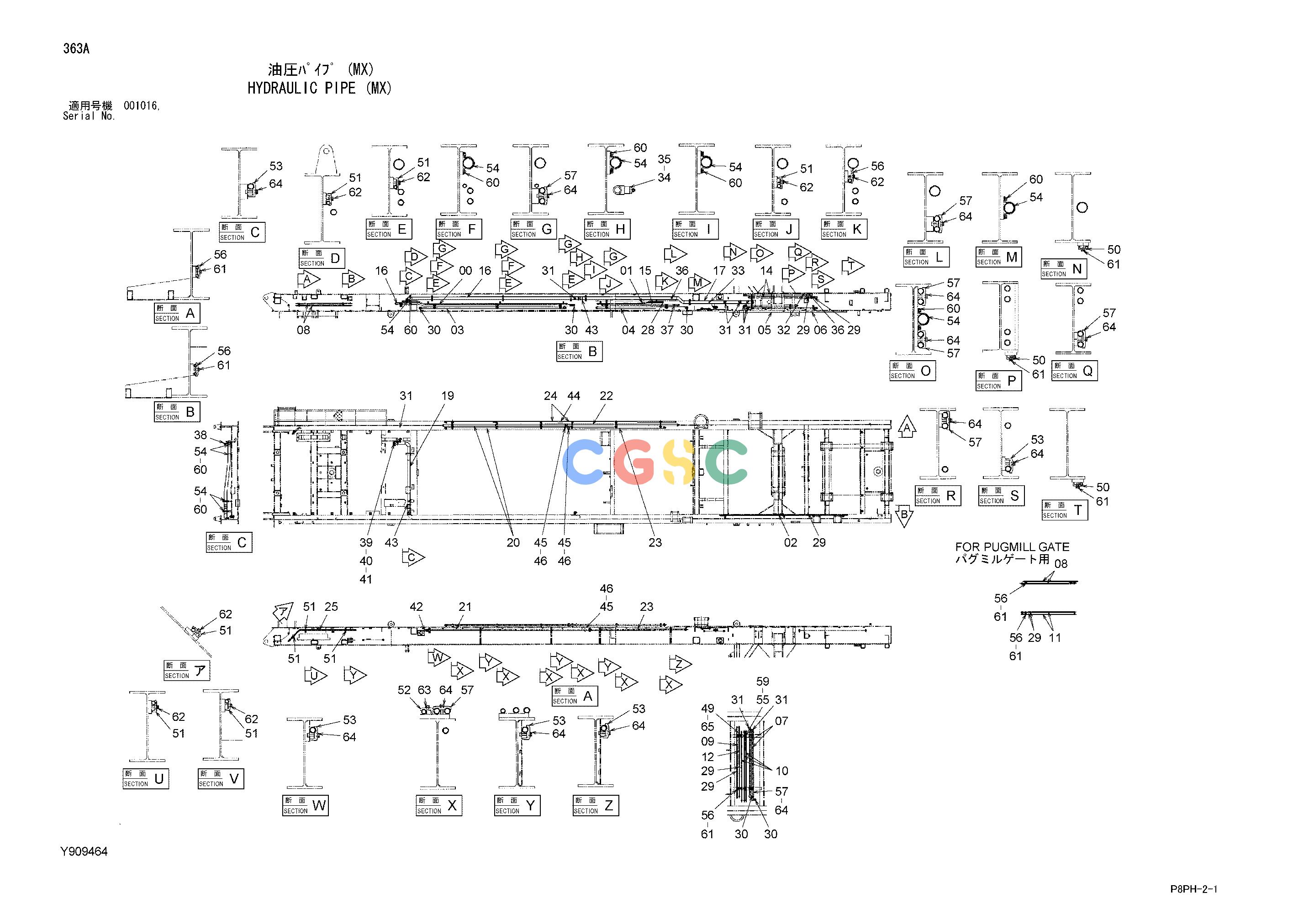

日立零件查询（AR2000）HYDRAULIC PIPE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
557 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802282 | [1] | PIPE | |
| 01. | Y802283 | [1] | PIPE | |
| 02. | Y802284 | [1] | PIPE | |
| 03. | Y802285 | [1] | PIPE | |
| 04. | Y802286 | [1] | PIPE | |
| 05. | Y802287 | [1] | PIPE | |
| 06. | Y802288 | [1] | PIPE | |
| 07. | Y802289 | [2] | PIPE | |
| 08. | Y802290 | [4] | PIPE | |
| 09. | Y802291 | [1] | PIPE | |
| 10. | Y802292 | [3] | PIPE | |
| 11. | Y802293 | [2] | PIPE | |
| 12. | Y802295 | [1] | PIPE | |
| 14. | Y802297 | [2] | PIPE | |
| 15. | Y802298 | [1] | PIPE | |
| 16. | Y802299 | [1] | PIPE | |
| 17. | Y802300 | [1] | PIPE | |
| 18. | Y802301 | [1] | PIPE | |
| 19. | Y802302 | [1] | PIPE | |
| 20. | Y971532 | [2] | PIPE | |
| 21. | Y971533 | [1] | PIPE | |
| 22. | Y971534 | [1] | PIPE | |
| 23. | Y971535 | [2] | PIPE | |
| 24. | Y971536 | [2] | PIPE | |
| 25. | Y971537 | [1] | PIPE | |
| 28. | A852143 | [1] | ADAPTER;S | |
| 28A. | 4506418 | [1] | O-RING | |
| 29. | A852133 | [7] | ADAPTER;S | |
| 29A. | 4509180 | [1] | O-RING | |
| 30. | 4214444 | [5] | ADAPTER;S | |
| 30A. | 4506429 | [1] | O-RING | |
| 31. | 4156436 | [9] | ELBOW;S | |
| 31A. | 4506429 | [1] | O-RING | |
| 32. | A852134 | [1] | ADAPTER;S | |
| 32A. | 4509180 | [1] | O-RING | |
| 33. | 4246385 | [1] | TEE;S | |
| 33A. | 4509180 | [1] | O-RING | |
| 34. | 4263448 | [1] | REDUCER;S | |
| 34A. | 4506429 | [1] | O-RING | |
| 35. | 4279302 | [1] | ADAPTER;S | |
| 35A. | 4506424 | [1] | O-RING | |
| 36. | A852333 | [2] | ELBOW;S | |
| 36A. | 4509180 | [1] | O-RING | |
| 37. | A852433 | [1] | TEE;S | |
| 37A. | 4509180 | [1] | O-RING | |
| 38. | A852444 | [1] | TEE;S | |
| 38A. | 4506418 | [1] | O-RING | |
| 39. | 4510174 | [2] | FLANGE;SPLIT | |
| 40. | 4510170 | [1] | O-RING | |
| 41. | J781235 | [4] | BOLT;SOCKET | |
| 42. | 4402233 | [1] | ELBOW;S | |
| 42A. | 4506424 | [1] | O-RING | |
| 43. | 4067833 | [2] | COUPLING | |
| 44. | Y412835 | [1] | ADAPTER;S | |
| 45. | A811035 | [3] | O-RING | |
| 46. | M341040 | [12] | BOLT;SOCKET | |
| 49. | 4000901 | [2] | CLAMP;PIPE | |
| 50. | 4138227 | [3] | CLAMP;PIPE | |
| 51. | 4053594 | [6] | CLAMP;PIPE | |
| 52. | 4053595 | [8] | CLAMP;PIPE | |
| 53. | 4053598 | [7] | CLAMP;PIPE | |
| 54. | 4053865 | [10] | CLAMP;PIPE | |
| 55. | 4001156 | [2] | CLAMP;PIPE | |
| 56. | 4053593 | [8] | CLAMP;PIPE | |
| 57. | 4053599 | [17] | CLAMP;PIPE | |
| 59. | J271030 | [2] | BOLT;SEMS | |
| 59A. | J901030 | [1] | BOLT | |
| 59B. | J222010 | [1] | WASHER | |
| 60. | J271025 | [24] | BOLT;SEMS | |
| 60A. | J901025 | [1] | BOLT | |
| 60B. | J222010 | [1] | WASHER | |
| 61. | J271040 | [7] | BOLT;SEMS | |
| 61A. | J901040 | [1] | BOLT | |
| 61B. | J222010 | [1] | WASHER | |
| 62. | J271045 | [10] | BOLT;SEMS | |
| 62A. | J901045 | [1] | BOLT | |
| 62B. | J222010 | [1] | WASHER | |
| 63. | J271255 | [8] | BOLT;SEMS | |
| 63A. | J901255 | [1] | BOLT | |
| 63B. | J222012 | [1] | WASHER | |
| 64. | J271265 | [24] | BOLT;SEMS | |
| 64A. | J901265 | [1] | BOLT | |
| 64B. | J222012 | [1] | WASHER | |
| 82. | 4426339 | [1] | UNION;M | |
| 83. | Y414956 | [1] | REDUCER;S | |
| 84. | Y414957 | [1] | NUT | |
