纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (5.646[01]) - BOTTOM GUARDS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
692 次

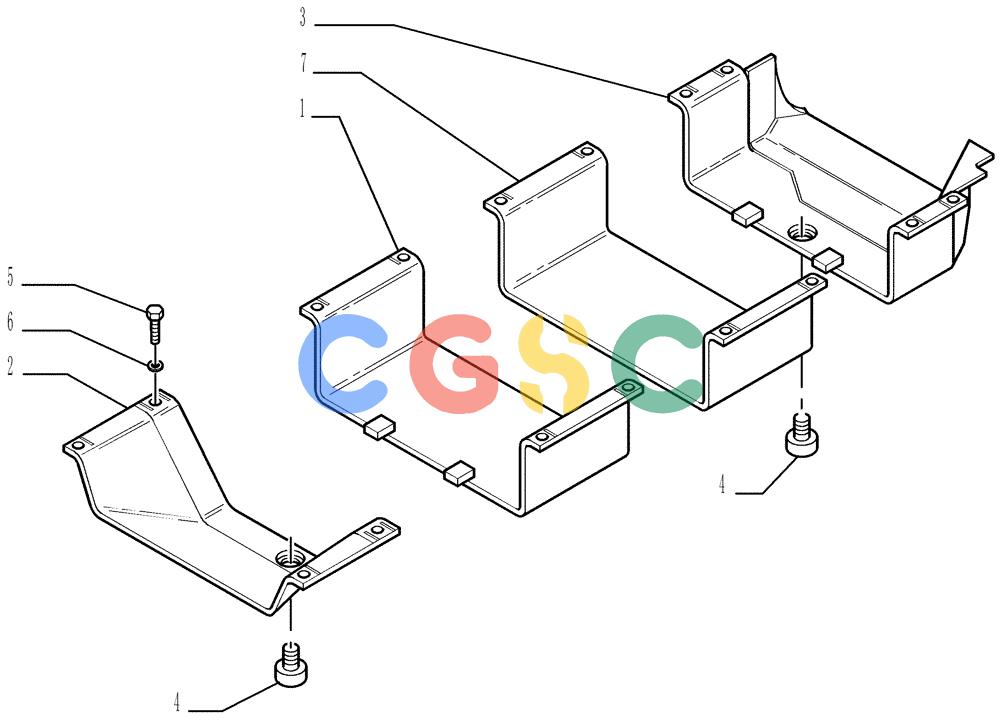

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76045675 | [1] | GUARD | LEC- CENTRAL LOWER |
| 2. | 76053962 | [1] | GUARD | LEC- FRONT LOWER |
| 3. | 76066235 | [1] | GUARD | LEC- REAR LOWER |
| 4. | 547737 | [2] | PLUG | LEC |
| 5. | 15984131 | [16] | BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd | BHB18X1,5X45 Superseded by part number: 15984134 |
| 6. | 76002742 | [16] | WASHER | LEC Superseded by part number: 79005243 |
| 7. | 76045676 | [1] | GUARD | LEC- CENTRAL LOWER REAR |
