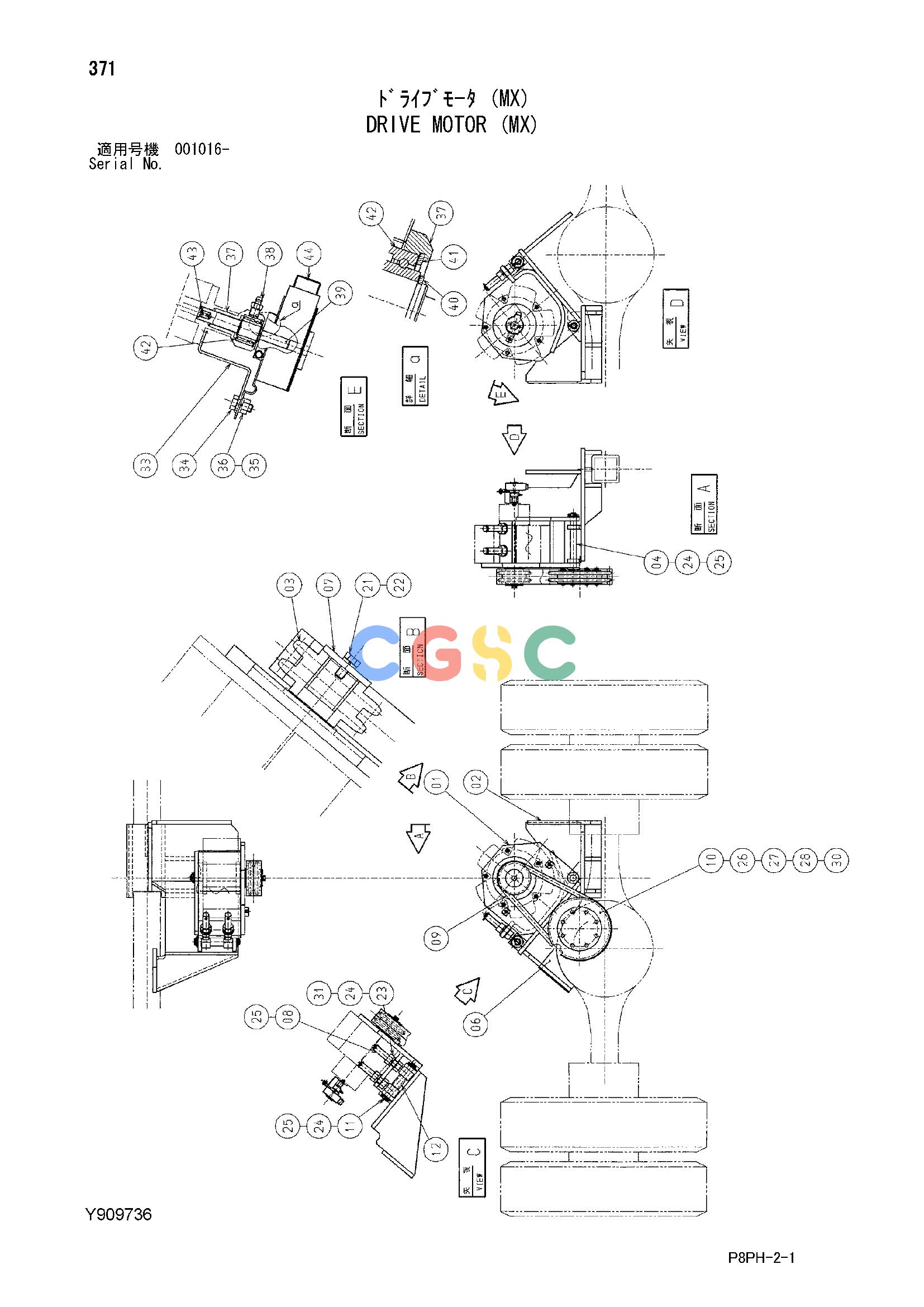

日立零件查询（AR2000）DRIVE MOTOR (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y802179 | [1] | BASE;MOTOR | |
| 02. | Y700961 | [1] | BRACKET | |
| 03. | Y411889 | [1] | SPROCKET;CHAIN | |
| 04. | Y971455 | [1] | PIN | |
| 06. | Y410253 | [1] | SEAT;METAL | |
| 07. | Y410258 | [1] | DISK | |
| 08. | Y971432 | [2] | ROD;THREADED | |
| 09. | Y410352 | [1] | CHAIN | |
| 09A. | Y415793 | [1] | CHAIN (OFFSET) | |
| 10. | Y409310 | [1] | SPROCKET;CHAIN | |
| 11. | Y412596 | [1] | PIN | |
| 12. | Y412595 | [1] | COLLER | |
| 21. | J901430 | [1] | BOLT | |
| 22. | A590914 | [1] | WASHER;SPRING | |
| 23. | J950030 | [4] | NUT | |
| 24. | A590130 | [7] | WASHER;PLANE | |
| 25. | A766050 | [5] | PIN;SPLIT | |
| 26. | J901080 | [8] | BOLT | |
| 27. | J950010 | [8] | NUT | |
| 28. | A590910 | [8] | WASHER;SPRING | |
| 30. | A590110 | [8] | WASHER;PLANE | |
| 31. | A590930 | [2] | WASHER;SPRING | |
| 33. | Y410511 | [1] | BRACKET | |
| 34. | J900816 | [1] | BOLT | |
| 35. | A590908 | [1] | WASHER;SPRING | |
| 36. | M500807 | [1] | NUT | |
| 37. | Y410509 | [1] | HOUSING | |
| 38. | J75481 | [1] | FITTING;GREASE | |
| 39. | Y410510 | [1] | SHAFT | |
| 40. | Y410513 | [1] | RING;RETAINING | |
| 41. | 443964 | [1] | RING;RETAINING | |
| 42. | Y410512 | [1] | BRG. | |
| 43. | 4097181 | [2] | PIN;SPRING | |
| 44. | Y411790 | [1] | ENCODER | |
