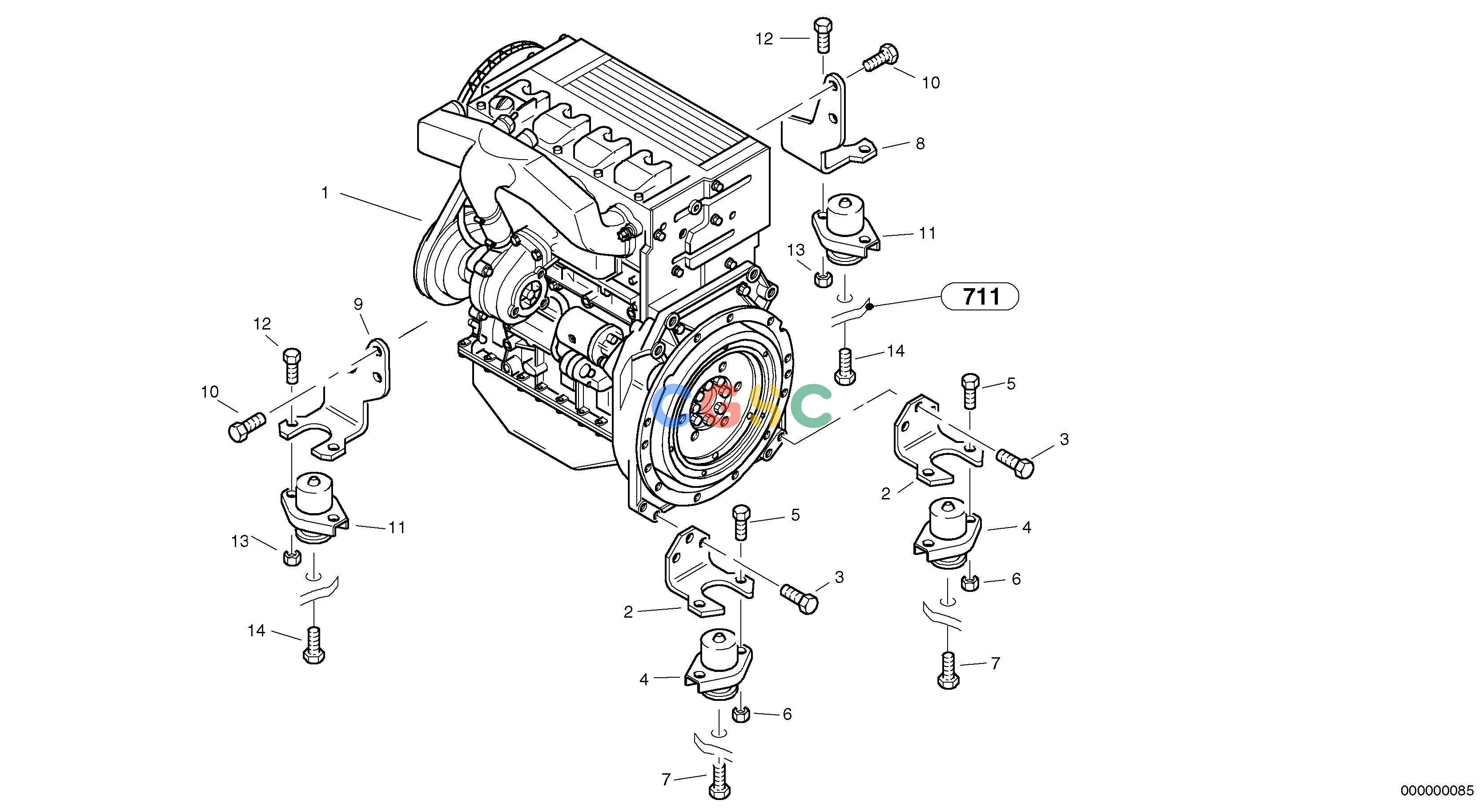

沃尔沃零件查询L35 Engine assyTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814030
|
[1] |
Engine, cpl.
|
-1860361/-1880031/
-1890045
|
| 9. |
ZM2810649
|
[1] |
Retainer
|
|
| 10. |
ZM4326456
|
[4] |
Screw
|
M14x30
|
| 11. |
VOE11306533
|
[2] |
Buffer
|
|
| 12. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 13. |
VOE983304
|
[4] |
Hexagon nut
|
M10
|
| 14. |
VOE997446
|
[2] |
Hexagon screw
|
M12x30
|
| 1. |
ZM2814030
|
[1] |
Engine, cpl.
|
1860362-/1880032-/
1890046-
|
| 2. |
ZM2807295
|
[2] |
Retainer
|
|
| 3. |
ZM4326456
|
[2] |
Screw
|
M14x30
|
| 4. |
VOE11306533
|
[2] |
Buffer
|
|
| 5. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 6. |
VOE983304
|
[4] |
Hexagon nut
|
M10
|
| 7. |
VOE997446
|
[2] |
Hexagon screw
|
M12x30
|
| 8. |
ZM2810650
|
[1] |
Retainer
|
|
