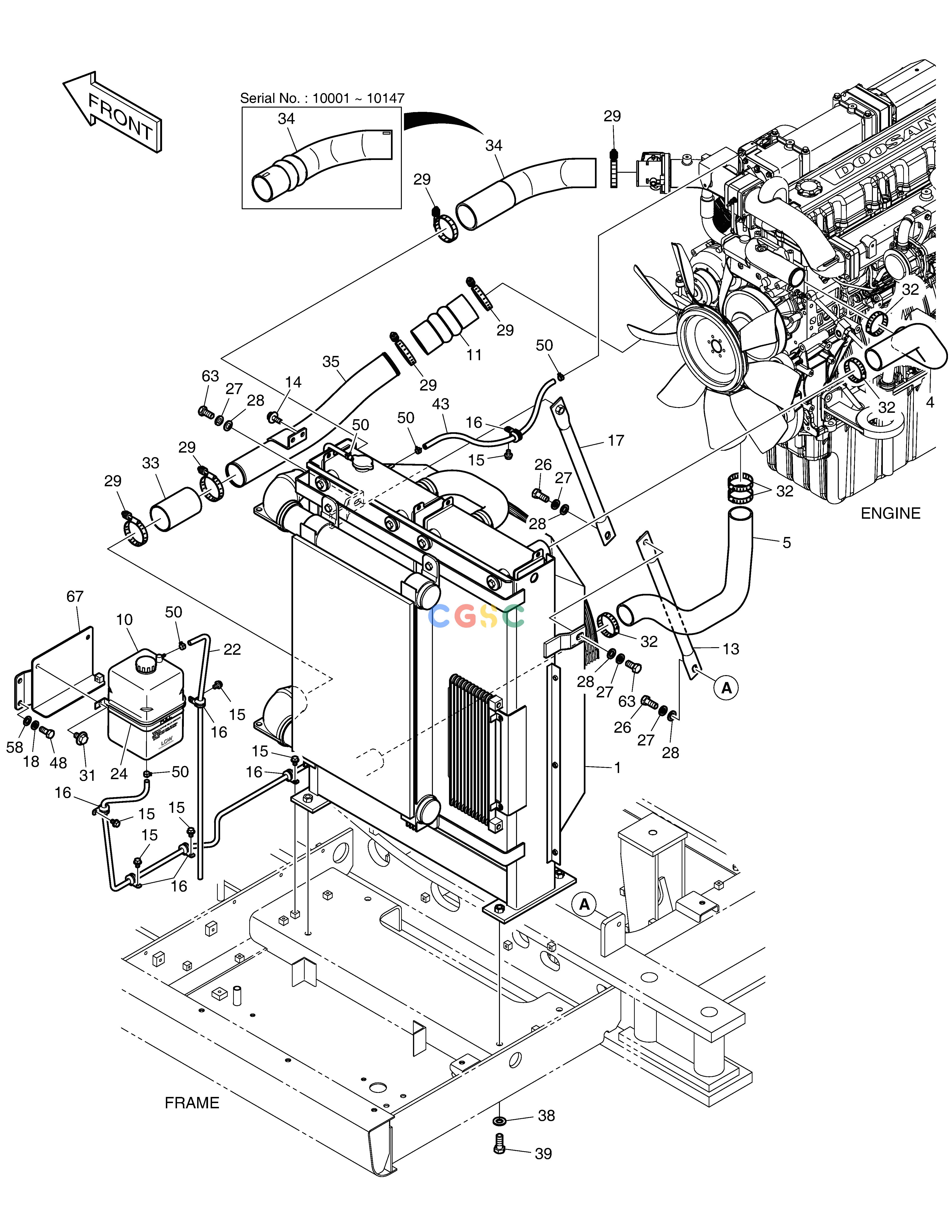

斗山零件查询RADIATOR MOUNTING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00134
|
[-] |
|
|
| 1. |
440211-00033C
|
[1] |
|
|
| 10. |
K1003354A
|
[1] |
TANK;RESERVE
|
|
| 11. |
420101-00029A
|
[1] |
|
|
| 13. |
K1005860A
|
[1] |
STAY
|
|
| 14. |
DS0025034
|
[2] |
BOLT
|
|
| 15. |
K1001029
|
[6] |
BOLT
|
|
| 16. |
124-00208D2
|
[6] |
CLAMP
|
|
| 17. |
101582-00102
|
[1] |
|
|
| 18. |
S5102703
|
[2] |
WASHER
|
|
| 22. |
DS2160017
|
[1] |
|
|
| 22. |
DS2081056
|
[1] |
|
|
| 24. |
K1002851
|
[1] |
CLAMP
|
|
| 26. |
S0521466
|
[2] |
BOLT
|
|
| 27. |
S5102903
|
[4] |
WASHER
|
|
| 28. |
S5010913
|
[4] |
WASHER
|
|
| 29. |
S8500092
|
[6] |
CLAMP;HOSE
|
|
| 31. |
DS0025014
|
[2] |
BOLT
|
|
| 32. |
S8500079
|
[5] |
CLAMP
|
|
| 33. |
420101-00220
|
[1] |
|
|
| 34. |
420101-00067B
|
[1] |
|
420101-01000
|
| 34. |
420101-01000
|
[1] |
|
|
| 35. |
420202-00121A
|
[1] |
|
|
| 38. |
2114-1816A
|
[4] |
WASHER
|
|
| 39. |
S0565166
|
[4] |
BOLT M16X2.0X45
|
|
| 4. |
420109-00041B
|
[1] |
|
|
| 43. |
DS2081064
|
[1] |
|
|
| 48. |
S0515266
|
[2] |
BOLT
|
|
| 5. |
420109-00042B
|
[1] |
|
|
| 50. |
120402-00149
|
[4] |
|
|
| 50. |
DS2809001
|
[5] |
CLIP
|
|
| 58. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 63. |
S0521566
|
[4] |
BOLT
|
|
| 67. |
110406-01165A
|
[1] |
|
|
