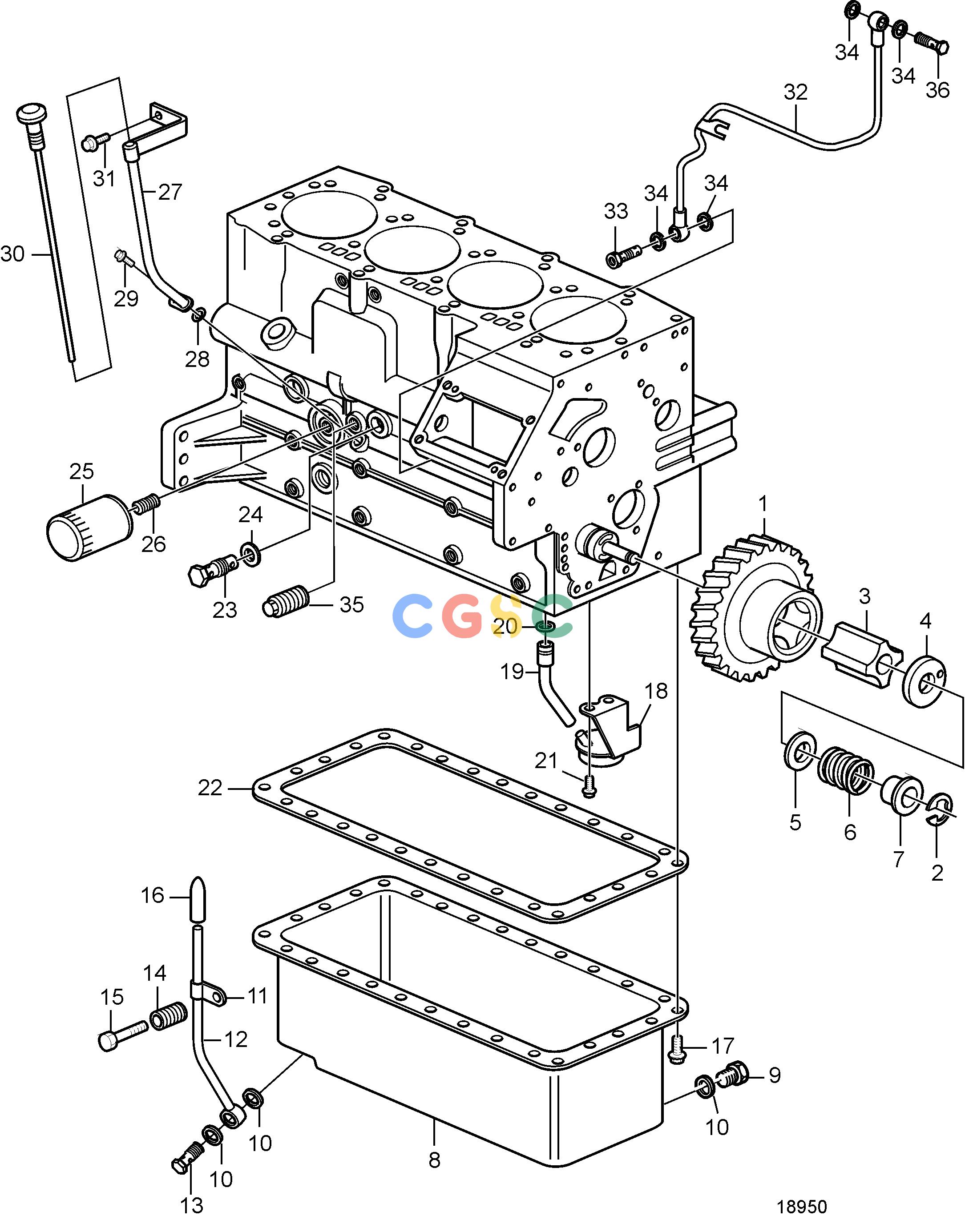

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744440_006
|
|
Gear
|
|
| 2. |
861534
|
[1] |
Lock ring
|
|
| 3. |
3580570
|
[1] |
Rotor
|
replaced
|
| 3. |
21541019
|
[1] |
Oil pump
|
D2-55 F
|
| 3. |
21541021
|
[1] |
Oil pump
|
D2-55 A/B/C/D/E
|
| 4. |
861527
|
[1] |
Cap
|
|
| 5. |
861528
|
[1] |
Shim
|
TH=0,10mm
|
| 5. |
861529
|
[1] |
Shim
|
TH=0.15mm
|
| 5. |
861530
|
[1] |
Shim
|
TH=0,20mm
|
| 5. |
861531
|
[1] |
Shim
|
TH=0,50mm
|
| 6. |
861532
|
[1] |
Spring
|
|
| 7. |
861533
|
[1] |
Sleeve
|
|
| 8. |
3583551
|
[1] |
Sump
|
|
| 9. |
3580091
|
[1] |
Screw
|
|
| 10. |
21424327
|
[3] |
Sealing ring
|
|
| 11. |
941565
|
[1] |
Clamp
|
|
| 12. |
3583067
|
[1] |
Oil draining pipe
|
Replaced by 3887377
|
| 12. |
3887377
|
[1] |
Oil pipe
|
SN-5103976112, Replaced by 21852455 and 22151722, SN5103976113-
|
| 12. |
21852455
|
[1] |
Drain pipe
|
SN5103976113W-
|
| 13. |
941686
|
[1] |
Hollow screw
|
|
| 14. |
3582401
|
[1] |
Adapter
|
|
| 15. |
946471
|
[1] |
Flange screw
|
|
| 16. |
1276516
|
[1] |
Rubber cap
|
SN-5103976112
|
| 16. |
22151722
|
[1] |
Protective hat
|
SN5103976113-
|
| 17. |
945358
|
[30] |
Flange screw
|
|
| 18. |
3583583
|
[1] |
Strainer
|
|
| 19. |
3583584
|
[1] |
Suction pipe
|
|
| 19. |
|
|
|
Included in kit 21141485 for suction pipe with flange
|
| 20. |
861997
|
[1] |
O-ring
|
|
| 20. |
|
|
|
Included in kit 21141485 for suction pipe with flange
|
| 21. |
861526
|
[2] |
Screw
|
|
| 22. |
21849845
|
[1] |
Gasket
|
Included also in kit 21141485 for suction pipe with flange
|
| 23. |
3583580
|
[1] |
Reduction valve
|
|
| 24. |
3583581
|
[1] |
O-ring
|
|
| 25. |
3840525
|
[1] |
Oil filter
|
|
| 26. |
861825
|
[1] |
Bolt
|
|
| 27. |
3587361
|
[1] |
Tube
|
(3583553)
|
| 28. |
861851
|
[1] |
O-ring
|
|
| 29. |
861526
|
[1] |
Screw
|
|
| 30. |
3583554
|
[1] |
Dipstick
|
|
| 31. |
21246643
|
[1] |
Hexagon screw
|
|
| 32. |
3583582
|
[1] |
Oil pipe
|
|
| 33. |
3583575
|
[1] |
Hollow screw
|
|
| 34. |
11992
|
[4] |
Gasket
|
|
| 35. |
3583732
|
[1] |
Plug
|
|
| 36. |
861872
|
[1] |
Hollow screw
|
|
