纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (5.652[09]) - ROPS CAB - DOOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
367 次

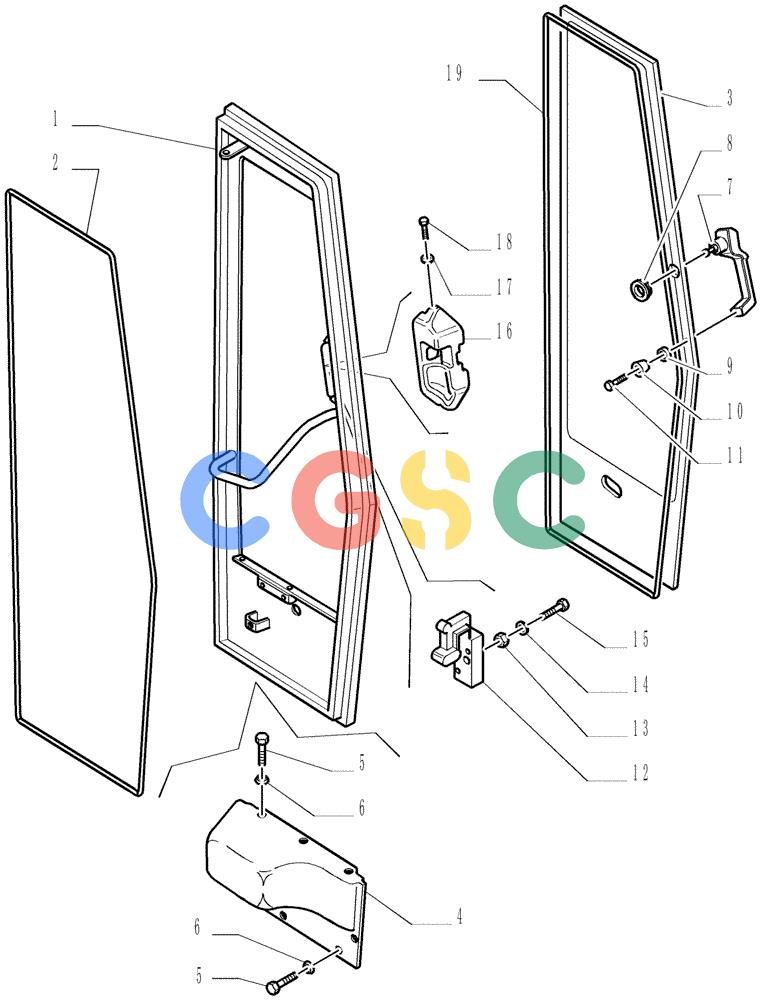

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067688 | [1] | DOOR | LECLEFT- ASSY |
| 1. | 76067687 | [1] | DOOR | LEC- RIGHT ASSY |
| 2. | 76067154 | [1] | DOOR SEAL | LECDoor; Bulb Seal For Entire Door |
| 3. | 76067085 | [1] | GLASS | LEC- RIGHT |
| 3. | 76067084 | [1] | GLASS | LEC- LEFT |
| 4. | 76067462 | [1] | SOFT TRIM | LEC- LOWER LEFT |
| 4. | 76067463 | [1] | SOFT TRIM | LEC- LOWER RIGHT |
| 5. | 79105220 | [8] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 6. | 76067309 | [8] | CUP WASHER | LEC |
| 7. | 76067152 | [2] | HANDLE | LEC |
| 8. | 76067731 | [1] | SEAL | BUR |
| 10. | 14496431 | [1] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 11. | 13276411 | [1] | SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8 | LEC Superseded by part number: 86511830 |
| 12. | 76067144 | [1] | LH DOOR LOCK | LEC Superseded by part number: 76301189 |
| 13. | 16100814 | [2] | NUT,M8, Cl 8, DAC | LEC Superseded by part number: 16100811 |
| 14. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 15. | 14442321 | [2] | SCREW,Flat Csk Hd, M8 x 1.25 x 35mm, Cl 8.8 | ZED |
| 16. | 76067156 | [1] | SOFT TRIM | LEC- RIGHT |
| 16. | 76067155 | [1] | SOFT TRIM | LEC- LEFT |
| 19. | 76067486 | [1] | GASKET | LECGlass; Applies Between Glass and Frame |
