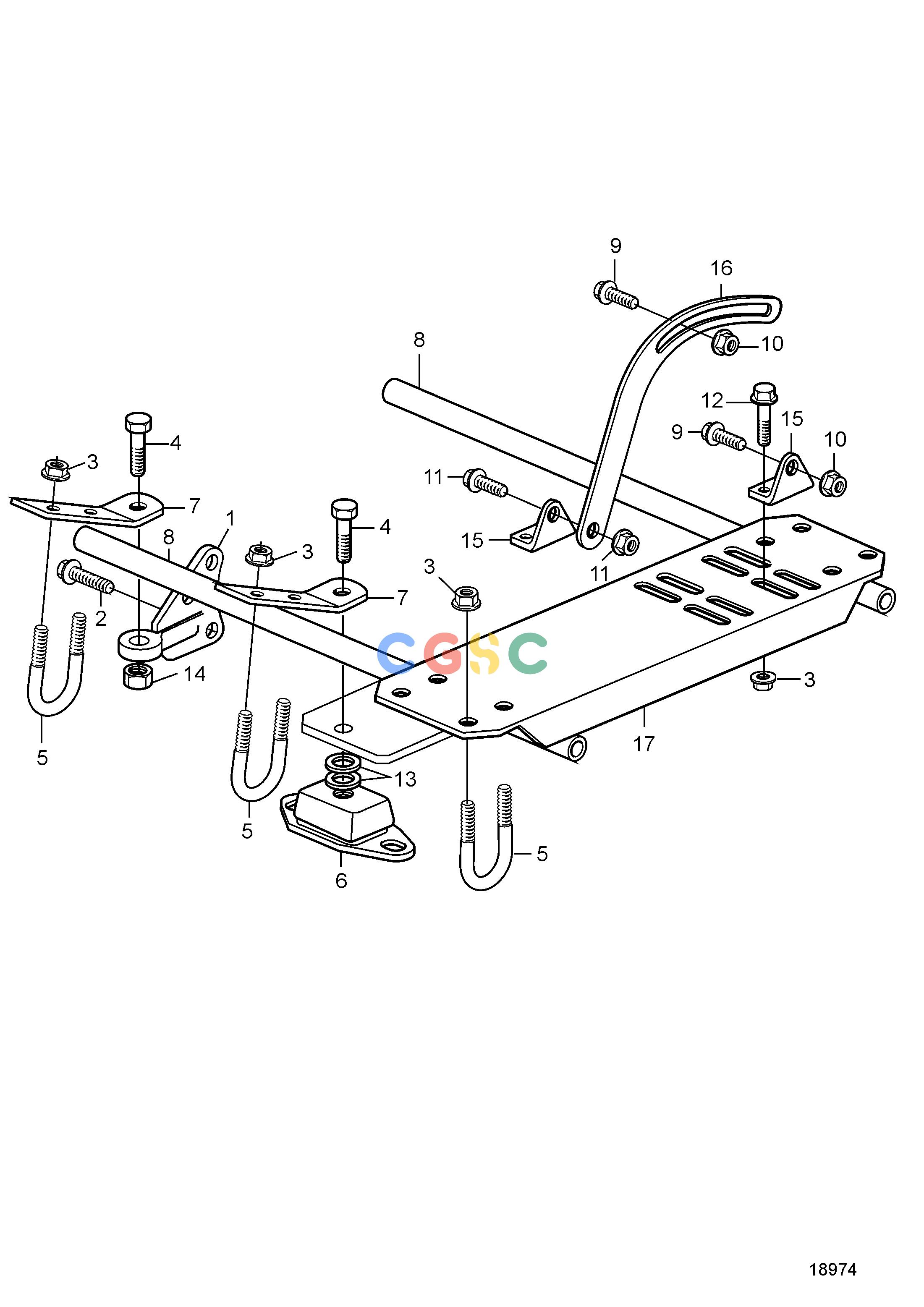

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FMiscellaneous EquipmentUniversal Bracket for S-driveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859862
|
[2] |
Bracket
|
|
| 2. |
946329
|
[6] |
Flange screw
|
|
| 3. |
955805
|
[2] |
Hexagon nut
|
|
| 4. |
983842
|
[4] |
Hexagon screw
|
|
| 5. |
3580739
|
[6] |
Clamp
|
|
| 6. |
|
|
|
|
| 7. |
3583848
|
[4] |
Anchorage
|
|
| 8. |
3583506
|
[2] |
Tube
|
|
| 9. |
946472
|
[4] |
Flange screw
|
|
| 10. |
971095
|
[6] |
Flange nut
|
|
| 11. |
946329
|
[2] |
Flange screw
|
|
| 12. |
945444
|
[8] |
Flange screw
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
854607
|
[4] |
Bracket
|
|
| 16. |
854608
|
[2] |
Tensioner
|
|
| 17. |
3580737
|
[1] |
Attaching plate
|
|
