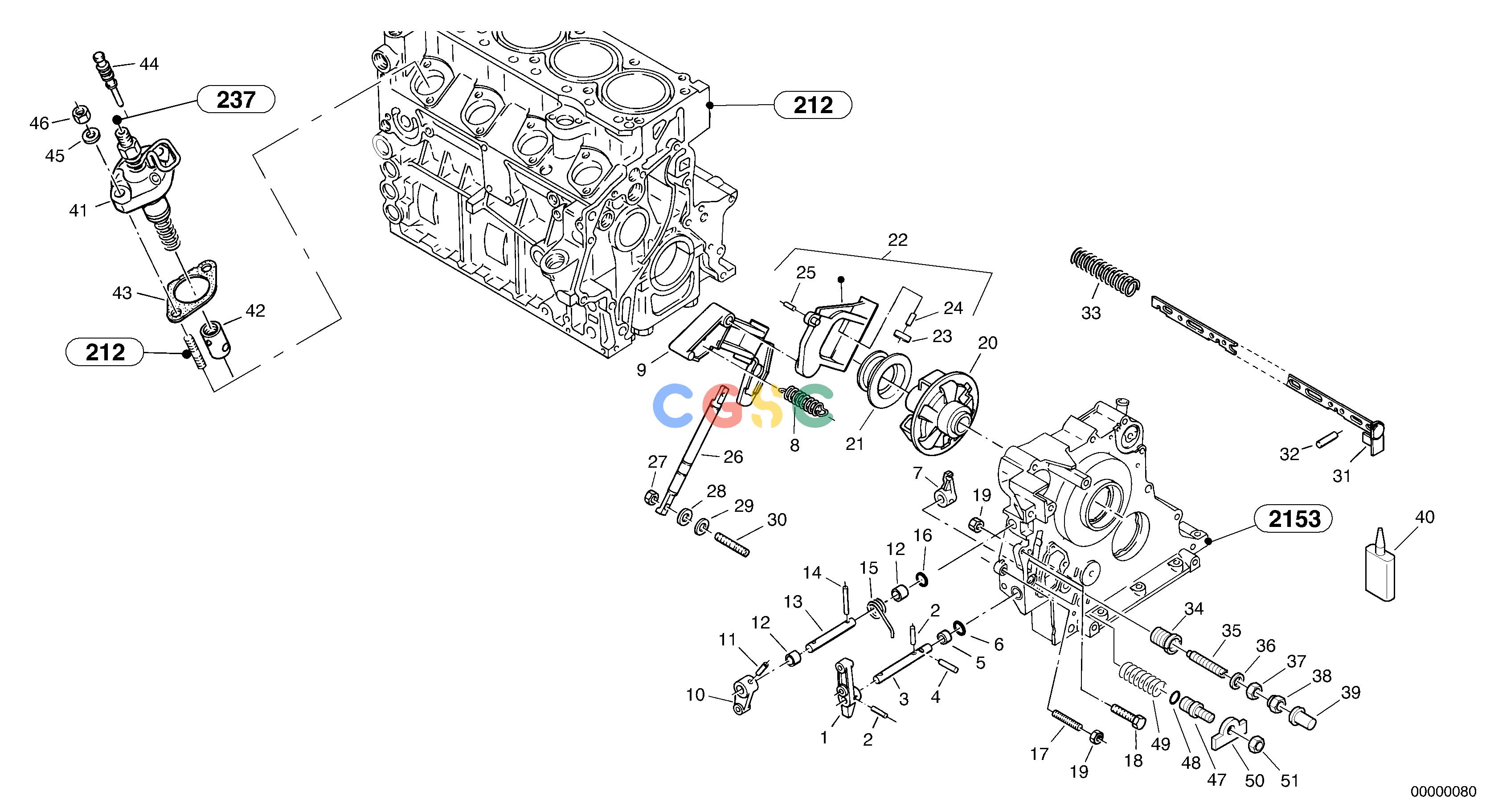

沃尔沃零件查询L35 Speed adjustment - Fuel injection pumpTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904077
|
[1] |
Lever
|
|
| 10. |
ZM2290482
|
[1] |
Stop lever
|
|
| 11. |
ZM7099461
|
[1] |
Clamping pin
|
5x20
|
| 12. |
ZM2292251
|
[2] |
Sleeve
|
|
| 13. |
ZM2292255
|
[1] |
Lever shaft
|
|
| 14. |
ZM2291481
|
[1] |
Pin
|
5x45
|
| 15. |
ZM2291464
|
[1] |
Torsion spring
|
|
| 16. |
ZM2291459
|
[1] |
O-ring
|
|
| 17. |
VOE15051912
|
[1] |
Set screw
|
M6x50
|
| 18. |
ZM7095068
|
[1] |
Screw
|
M6x25
|
| 19. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 2. |
ZM7099461
|
[2] |
Clamping pin
|
5x20
|
| 20. |
VOE11370251
|
[1] |
Centrifugal governor
|
|
| 21. |
ZM2904079
|
[1] |
Sleeve
|
|
| 22. |
ZM2904076
|
[1] |
Roller lever
|
|
| 23. |
ZM2904081
|
[2] |
Ball bearing
|
608-2Z
|
| 24. |
VOE11715759
|
[2] |
Bolt
|
A8K6x20
|
| 25. |
VOE20460241
|
[1] |
Screw
|
A4x8
|
| 26. |
ZM2904080
|
[1] |
Axle
|
|
| 27. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 28. |
ZM2291467
|
[2] |
Washer
|
|
| 29. |
ZM2291465
|
[2] |
Washer
|
|
| 3. |
ZM2291460
|
[1] |
Regulator lever shaft
|
|
| 30. |
VOE11370223
|
[2] |
Stud
|
M6x12
|
| 31. |
ZM2904084
|
[1] |
Control rod
|
|
| 32. |
ZM2904085
|
[1] |
Fixed pin
|
|
| 33. |
ZM2290471
|
[1] |
Pressure spring
|
|
| 34. |
ZM2290459
|
[1] |
Tappet bush
|
|
| 35. |
ZM2290460
|
[1] |
Bearing spindle
|
M6x40
|
| 36. |
ZM2290461
|
[1] |
Sealing ring
|
|
| 37. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 38. |
ZM2290462
|
[1] |
Nut
|
|
| 39. |
ZM2290463
|
[1] |
Protec. cap
|
|
| 4. |
ZM2292257
|
[1] |
Bolt
|
|
| 40. |
VOE20464471
|
[REQ] |
Locking fluid
|
|
| 41. |
ZM2904379
|
[4] |
Injection pump
|
|
| 42. |
ZM2901356
|
[4] |
Roller tappet
|
|
| 43. |
VOE11715911
|
[4] |
Gasket
|
0,4 mm
|
| 43. |
ZM2904129
|
[REQ] |
Balancer gasket
|
0,5 mm
|
| 43. |
ZM2904130
|
[REQ] |
Balancer gasket
|
0,6 mm
|
| 43. |
ZM2904131
|
[REQ] |
Balancer gasket
|
0,7 mm
|
| 43. |
ZM2904132
|
[REQ] |
Balancer gasket
|
0,8 mm
|
| 43. |
ZM2904133
|
[REQ] |
Balancer gasket
|
0,9 mm
|
| 43. |
ZM2904134
|
[REQ] |
Balancer gasket
|
1,0 mm
|
| 5. |
ZM2292251
|
[1] |
Sleeve
|
|
| 44. |
ZM2904135
|
[4] |
Plug
|
|
| 45. |
VOE20405802
|
[8] |
Washer
|
|
| 46. |
ZM7098010
|
[8] |
Nut
|
M8
|
| 47. |
ZM2905364
|
[1] |
Case
|
|
| 48. |
ZM2905365
|
[1] |
O-ring
|
|
| 49. |
ZM2905367
|
[1] |
Pressure spring
|
|
| 50. |
ZM2905366
|
[1] |
Washer
|
|
| 51. |
ZM7098392
|
[1] |
Nut
|
M6
|
| 6. |
ZM2291459
|
[1] |
O-ring
|
|
| 7. |
ZM2900507
|
[1] |
Lever
|
|
| 8. |
VOE11715758
|
[1] |
Tension spring
|
|
| 9. |
VOE11370648
|
[1] |
Hand lever
|
|
