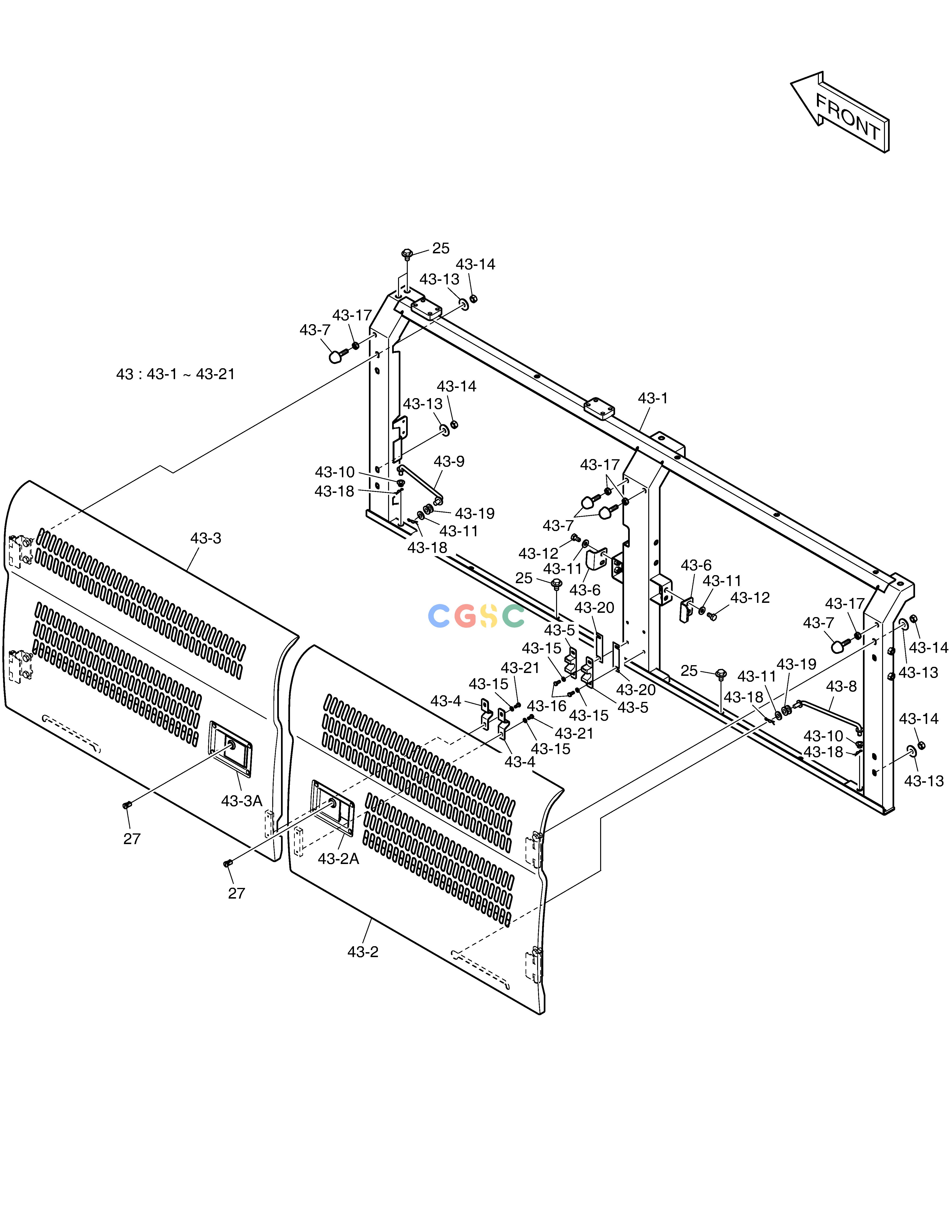

斗山零件查询SIDE DOOR - L.H DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-17363
|
[-] |
|
|
| 25. |
DS0025015
|
[10] |
BOLT
|
|
| 27. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 43. |
110982-00738
|
[1] |
|
|
| 43-1. |
110958-00137G
|
[1] |
|
|
| 43-10. |
K1000602
|
[2] |
. BUSHING
|
|
| 43-11. |
2114-1058D45
|
[6] |
. WASHER
|
|
| 43-12. |
S0511866
|
[4] |
BOLT
|
|
| 43-13. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 43-14. |
S4012733
|
[8] |
NUT
|
|
| 43-15. |
S5010313
|
[8] |
WASHER
|
|
| 43-16. |
S0504653
|
[4] |
. BOLT
|
|
| 43-17. |
S4012633
|
[4] |
NUT
|
|
| 43-18. |
2705-9002
|
[4] |
PIN
|
|
| 43-19. |
K1008335
|
[2] |
. BUSHING
|
|
| 43-2. |
110982-00739
|
[1] |
|
|
| 43-20. |
110947-00027
|
[2] |
. SHIM
|
|
| 43-21. |
S0504553
|
[4] |
BOLT
|
|
| 43-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 43-3. |
110982-00079B
|
[1] |
|
|
| 43-3A. |
125-00035A
|
[1] |
LOCK
|
|
| 43-4. |
250201-00028
|
[2] |
. PLATE
|
|
| 43-5. |
110956-00002A
|
[2] |
. STOPPER
|
|
| 43-6. |
621-02726A
|
[2] |
. PLATE,LOCK
|
|
| 43-7. |
K1001260A
|
[4] |
STOPPER
|
|
| 43-8. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
|
| 43-9. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
