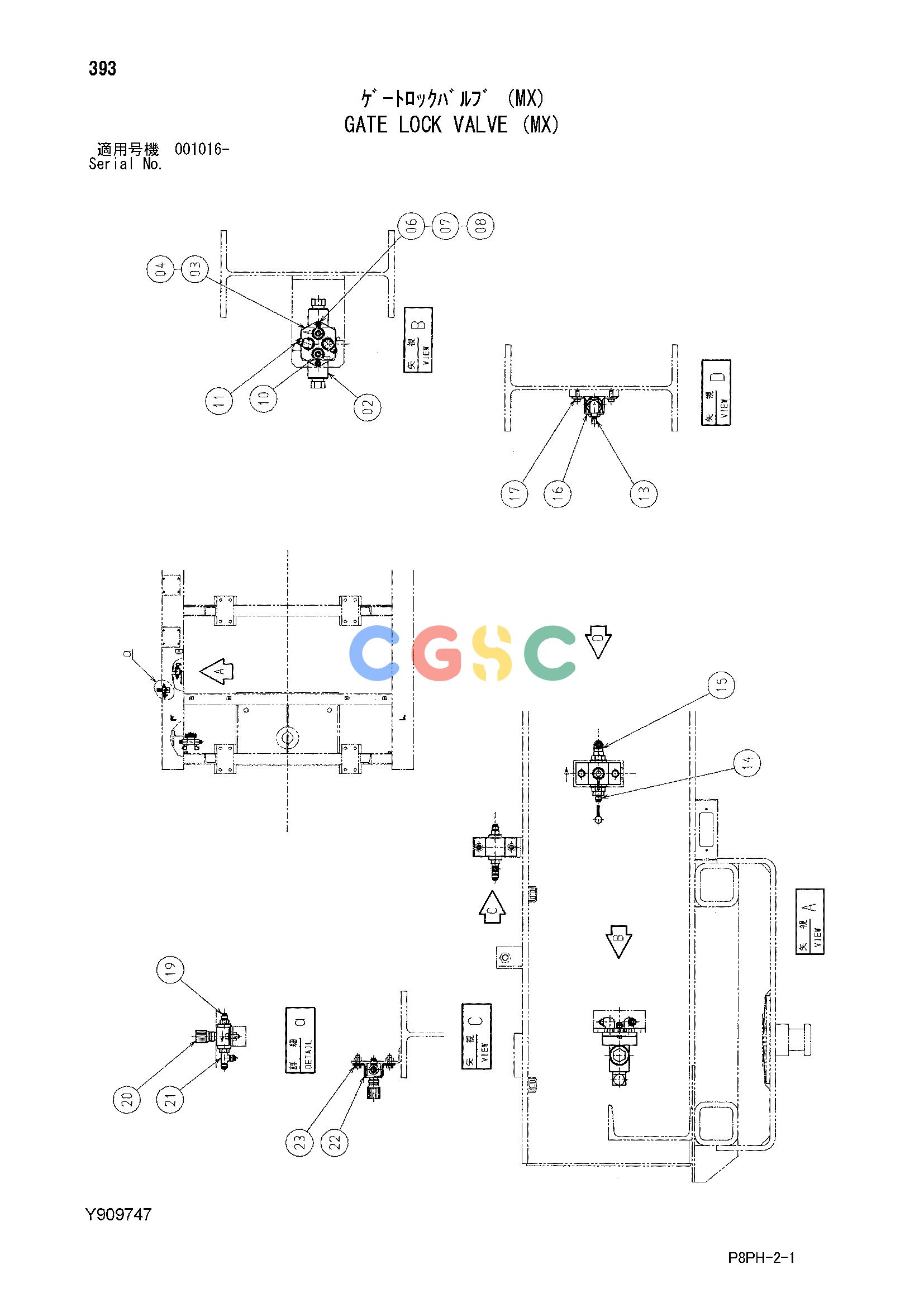

日立零件查询（AR2000）GATE LOCK VALVE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y411291 | [1] | VALVE;CONTROL | |
| 03. | Y412542 | [1] | SUB PLATE | |
| 04. | J780550 | [4] | BOLT;SOCKET | |
| 06. | J780630 | [2] | BOLT;SOCKET | |
| 07. | M500605 | [2] | NUT | |
| 08. | A590906 | [2] | WASHER;SPRING | |
| 10. | A852133 | [2] | ADAPTER;S | |
| 10A. | 4509180 | [1] | O-RING | |
| 11. | A852333 | [2] | ELBOW;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 13. | Y411193 | [1] | VALVE;BALL | |
| 14. | 4209765 | [1] | ADAPTER;S | |
| 14A. | U10778U | [1] | O-RING | |
| 15. | Y413089 | [1] | ERBOW;S | |
| 16. | Y412937 | [1] | BRACKET | |
| 17. | J260820 | [2] | BOLT;SEMS | |
| 17A. | J900820 | [1] | BOLT | |
| 17B. | A590108 | [1] | WASHER;PLANE | |
| 19. | 4278867 | [1] | ADAPTER;S | |
| 19A. | R26448R | [1] | O-RING | |
| 20. | Y411192 | [1] | VALVE;NEEDLE | |
| 21. | 4278871 | [1] | TEE;S | |
| 21A. | R26448R | [1] | O-RING | |
| 22. | Y412948 | [1] | BRACKET | |
| 23. | J260825 | [2] | BOLT;SEMS | |
| 23A. | J900825 | [1] | BOLT | |
| 23B. | A590108 | [1] | WASHER;PLANE | |
