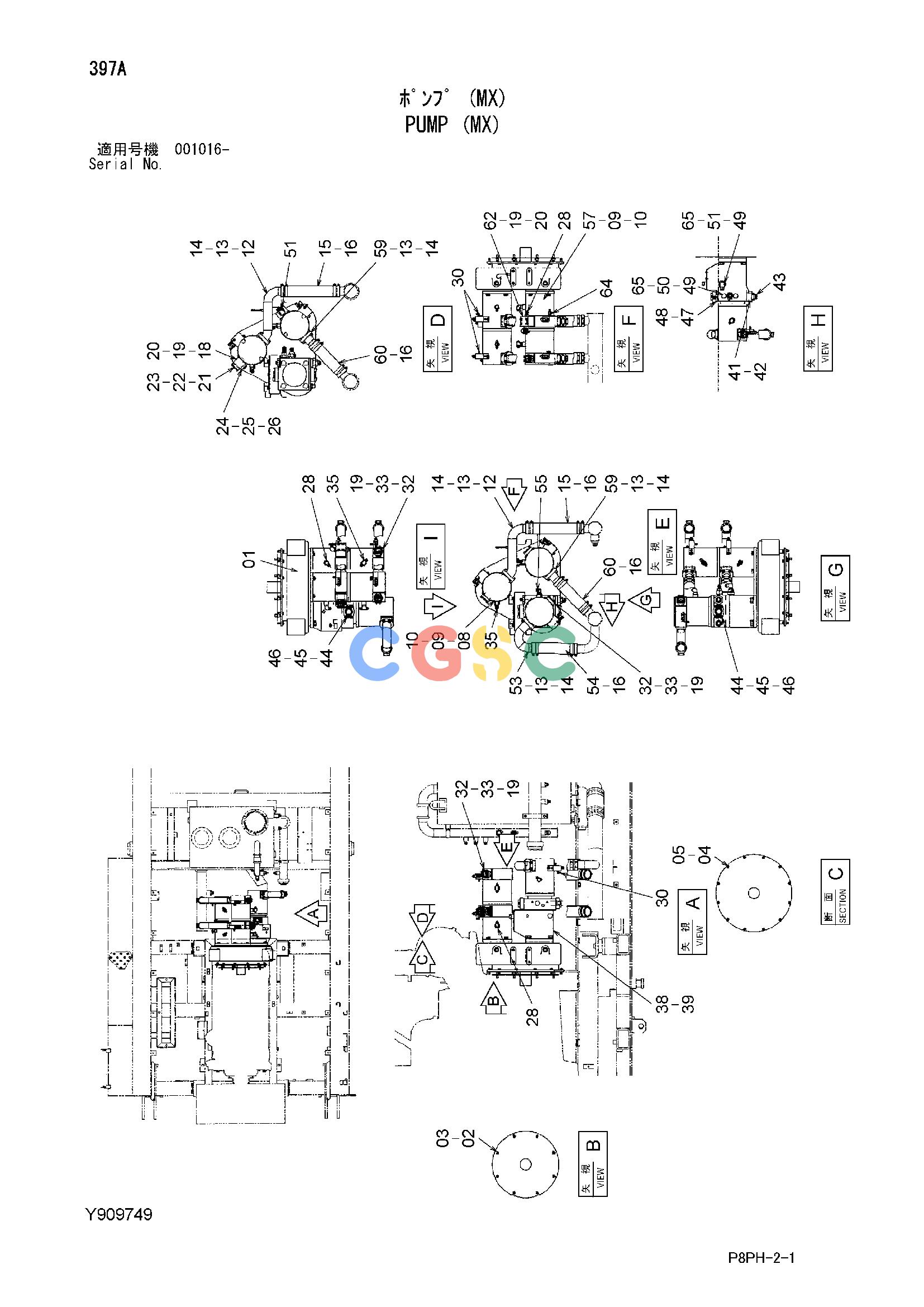

日立零件查询（AR2000）PUMP (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
500 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411261 | [1] | PUMP DRIVE;TRIPLE | |
| 02. | 445338 | [8] | BOLT;SOCKET | |
| 03. | J219084 | [8] | WASHER;SPRING | |
| 04. | 4466599 | [12] | BOLT | |
| 05. | J219167 | [12] | WASHER;SPRING | |
| 08. | Y411164 | [1] | PUMP;PISTON | |
| 09. | Y410765 | [4] | BOLT | |
| 10. | A590916 | [4] | WASHER;SPRING | |
| 12. | Y802142 | [2] | PIPE;SUCTION | |
| 13. | A811060 | [5] | O-RING | |
| 14. | J781235 | [20] | BOLT;SOCKET | |
| 15. | 4294186 | [2] | HOSE;RUBBER | |
| 16. | 4263764 | [20] | CLAMP;HOSE | |
| 18. | Y301820 | [1] | MANIFOLD | |
| 19. | 966993 | [5] | O-RING | |
| 20. | J781060 | [8] | BOLT;SOCKET | |
| 21. | 986910 | [2] | FLANGE;SPRIT | |
| 22. | 971489 | [1] | O-RING | |
| 23. | J781025 | [4] | BOLT;SOCKET | |
| 24. | 4510173 | [2] | FLANGE;SPLIT | |
| 25. | 4510167 | [1] | O-RING | |
| 26. | J780825 | [4] | BOLT;SOCKET | |
| 28. | A852344 | [3] | ELBOW;S | |
| 28A. | 4506418 | [1] | O-RING | |
| 30. | 4278239 | [4] | ELBOW;S | |
| 30A. | 4510185 | [1] | O-RING | |
| 32. | 962453 | [6] | FLANGE;SPLIT | |
| 33. | J781030 | [12] | BOLT;SOCKET | |
| 35. | A852544 | [2] | TEE;S | |
| 35A. | 4506418 | [1] | O-RING | |
| 38. | Y411166 | [1] | PUMP;PISTON | |
| 39. | A590922 | [4] | WASHER;SPRING | |
| 41. | Y413172 | [1] | REDUCER | |
| 41. | Y416446 | [1] | REDUCER | |
| 42. | Y412709 | [1] | O-RING | |
| 42. | 4037888 | [1] | O-RING | |
| 43. | 4214444 | [1] | ADAPTER;S | |
| 43A. | 4506429 | [1] | O-RING | |
| 44. | 4089703 | [4] | FLANGE;SPLIT | |
| 45. | 4508805 | [2] | O-RING | |
| 46. | J781445 | [8] | BOLT;SOCKET | |
| 47. | Y412641 | [1] | ADAPTER;S | |
| 48. | Y412708 | [1] | O-RING | |
| 49. | Y413186 | [2] | REDUCER | |
| 49. | Y416447 | [2] | REDUCER | |
| 50. | 4353073 | [1] | ELBOW;S | |
| 50A. | 4506424 | [1] | O-RING | |
| 50. | 4279302 | [1] | ADAPTER;S | |
| 50A. | 4506424 | [1] | O-RING | |
| 51. | A852366 | [2] | ELBOW;S | |
| 51A. | 4506424 | [1] | O-RING | |
| 53. | Y802229 | [1] | PIPE;SUCTION | |
| 54. | 4219815 | [1] | HOSE;RUBBER | |
| 55. | 4327300 | [1] | ELBOW;S | |
| 55A. | R26906R | [1] | O-RING | |
| 57. | Y411165 | [1] | PUMP;PISTON | |
| 59. | Y802143 | [2] | PIPE;SUCTION | |
| 60. | 4352461 | [2] | HOSE;RUBBER | |
| 62. | Y301821 | [1] | MANIFOLD | |
| 64. | 4278868 | [1] | TEE;S | |
| 64A. | 4510185 | [1] | O-RING | |
| 65. | 4506429 | [2] | O-RING | |
