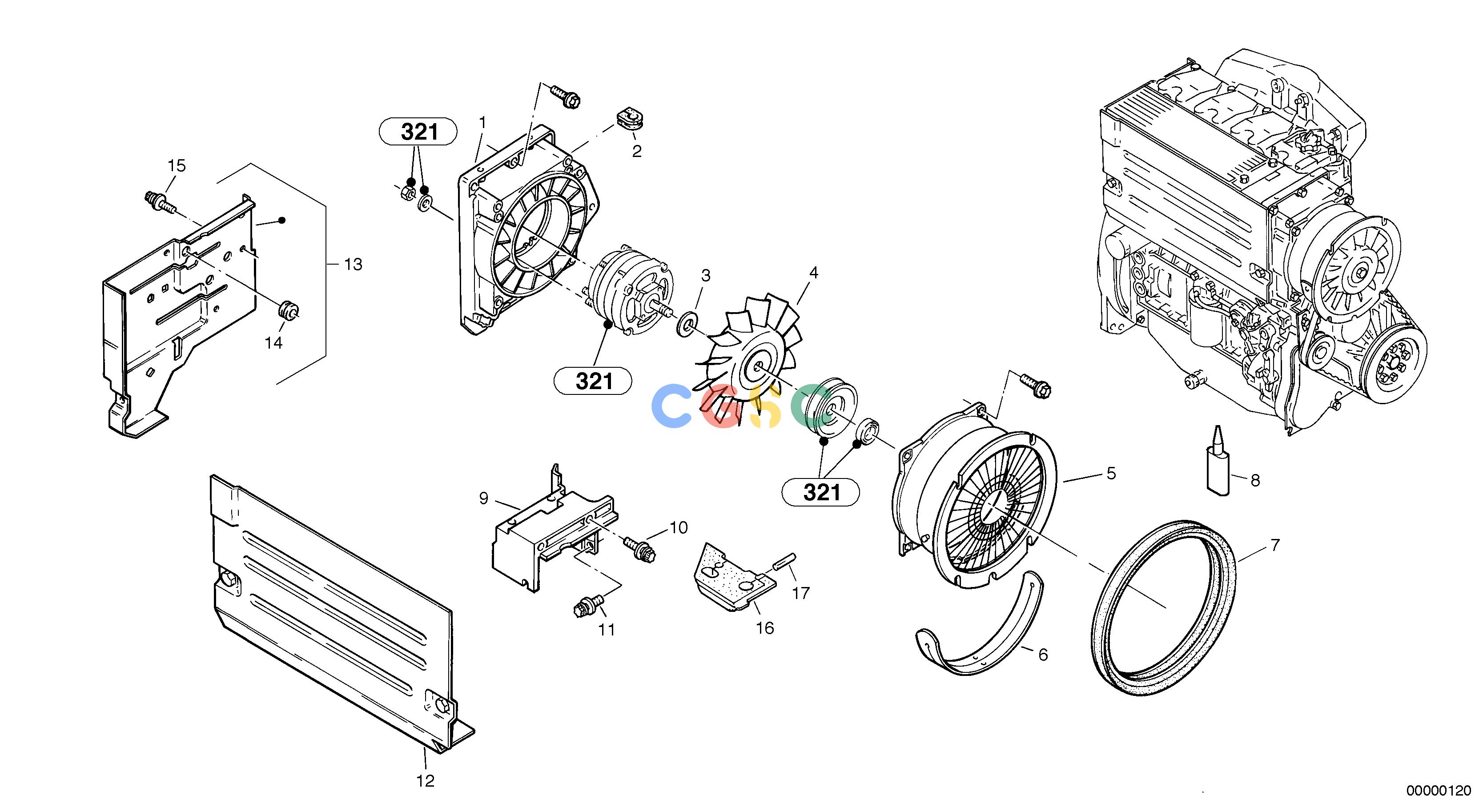

沃尔沃零件查询L35 Fan, Blower casingTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
581 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904153
|
[1] |
Blower casing
|
|
| 5. |
VOE17226457
|
[1] |
Cover
|
1860362-/1880032-
1890046-
|
| 6. |
VOE17358513
|
[1] |
Gasket
|
|
| 7. |
ZM2904157
|
[1] |
Profiled joint
|
|
| 8. |
ZM2904204
|
[REQ] |
Cement
|
|
| 9. |
VOE11370071
|
[1] |
Air guide
|
|
| 10. |
ZM2904159
|
[2] |
Screw
|
|
| 11. |
ZM2908518
|
[1] |
Screw
|
|
| 12. |
VOE17507352
|
[1] |
Cover Panel
|
|
| 13. |
ZM2908519
|
[1] |
Stability plate
|
|
| 14. |
ZM2259930
|
[1] |
Rubber spout
|
|
| 2. |
ZM2290294
|
[2] |
Sleeve
|
|
| 15. |
ZM2904121
|
[3] |
Screw
|
|
| 16. |
VOE11715525
|
[1] |
Profile
|
|
| 17. |
ZM2904750
|
[2] |
Clamping pin
|
4x28
|
| 3. |
ZM2904151
|
[1] |
Washer
|
5,00 mm
|
| 3. |
ZM2290289
|
[REQ] |
Washer
|
5,50 mm
|
| 3. |
ZM2290290
|
[REQ] |
Washer
|
6,00 mm
|
| 3. |
ZM2290291
|
[REQ] |
Washer
|
6,50 mm
|
| 3. |
ZM2904152
|
[REQ] |
Washer
|
7,00 mm
|
| 4. |
ZM2905391
|
[1] |
Blower wheel
|
|
| 5. |
VOE15181829
|
[1] |
Housing
|
-1860361/-1880031
-1890045
|
