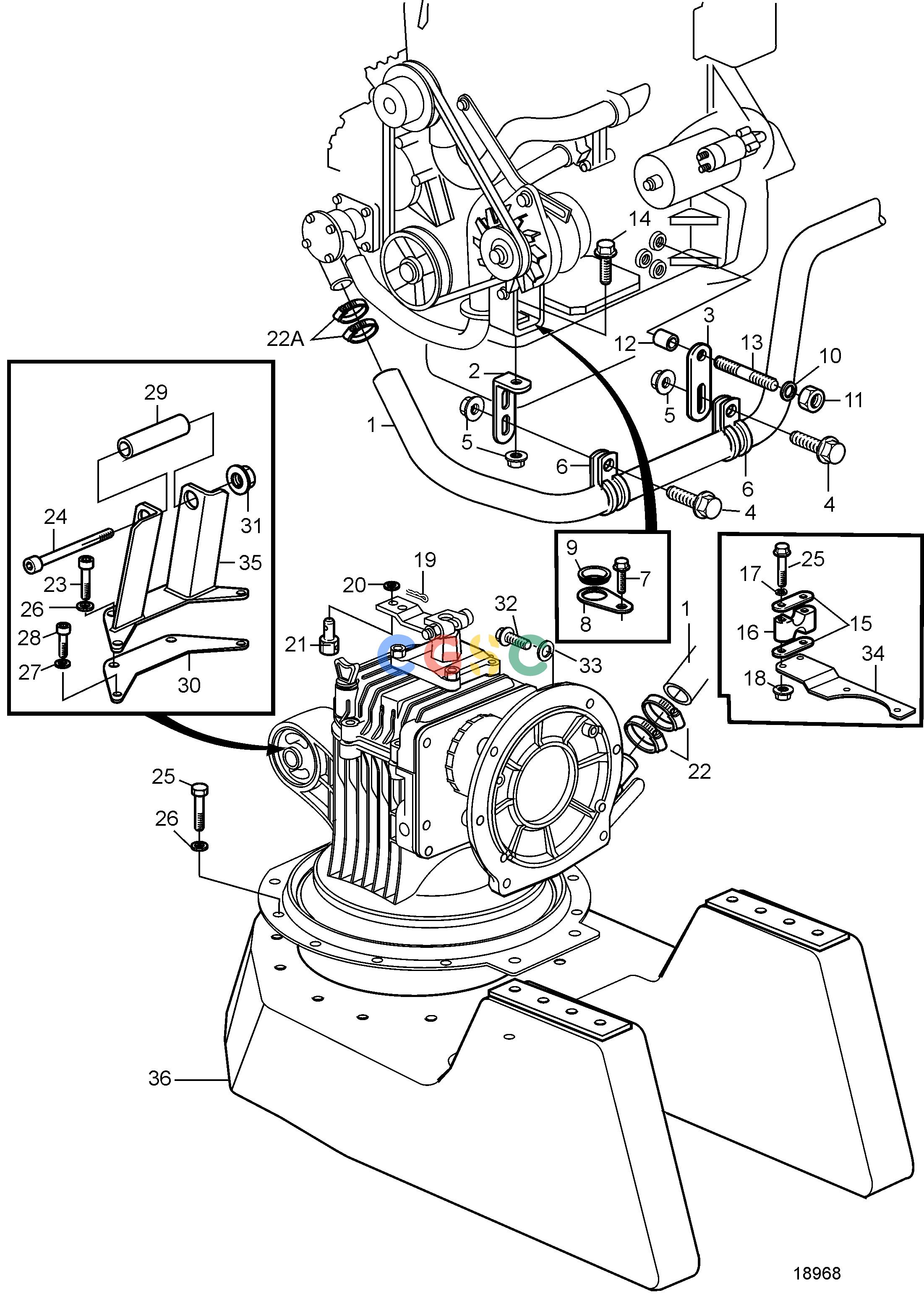

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FTransmissionsConnecting Components for S-drive MS25S/SREPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583076
|
[1] |
Hose
|
For S-drive MS25S/SR.
|
| 2. |
965555
|
[1] |
Bracket
|
|
| 3. |
965535
|
[1] |
Bracket
|
|
| 4. |
946440
|
[2] |
Flange screw
|
|
| 5. |
945408
|
[3] |
Flange nut
|
|
| 6. |
949850
|
[2] |
Clamp
|
|
| 7. |
946671
|
[1] |
Flange screw
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
845988
|
[1] |
Spacer sleeve
|
|
| 11. |
3583789
|
[1] |
Nut
|
|
| 12. |
3582401
|
[1] |
Adapter
|
|
| 13. |
924083
|
[1] |
Stud
|
|
| 14. |
969439
|
[2] |
Six point socket scr
|
|
| 15. |
872076
|
[2] |
Washer
|
|
| 16. |
872074
|
[1] |
Retainer
|
|
| 17. |
940090
|
[2] |
Washer
|
|
| 18. |
949874
|
[1] |
Flange lock nut
|
(946577)
|
| 19. |
17276
|
[1] |
Split pin
|
|
| 20. |
941906
|
[1] |
Spring washer
|
|
| 21. |
3852329
|
[1] |
Cube
|
|
| 22. |
961667
|
[4] |
Hose clamp
|
|
| 22A. |
961669
|
[4] |
Hose clamp
|
|
| 23. |
943707
|
[1] |
Hose
|
|
| 24. |
|
|
|
|
| 25. |
946730
|
[8] |
Hexagon screw
|
|
| 26. |
941670
|
[10] |
Washer
|
|
| 27. |
853095
|
[2] |
Washer
|
|
| 28. |
|
|
|
|
| 29. |
963568
|
[2] |
Hexagon screw
|
|
| 30. |
3581556
|
[1] |
Spacer washer
|
|
| 31. |
|
|
|
|
| 32. |
940160
|
[4] |
Hexagon screw
|
|
| 33. |
955896
|
[4] |
Washer
|
|
| 34. |
|
|
|
See transmission catalogue
|
| 35. |
3841849
|
[1] |
Bracket
|
(3581160)
|
| 36. |
3842285
|
[1] |
Engine bed
|
(3583120)
|
