纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (5.652[31]) - ROPS CAB - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
946 次

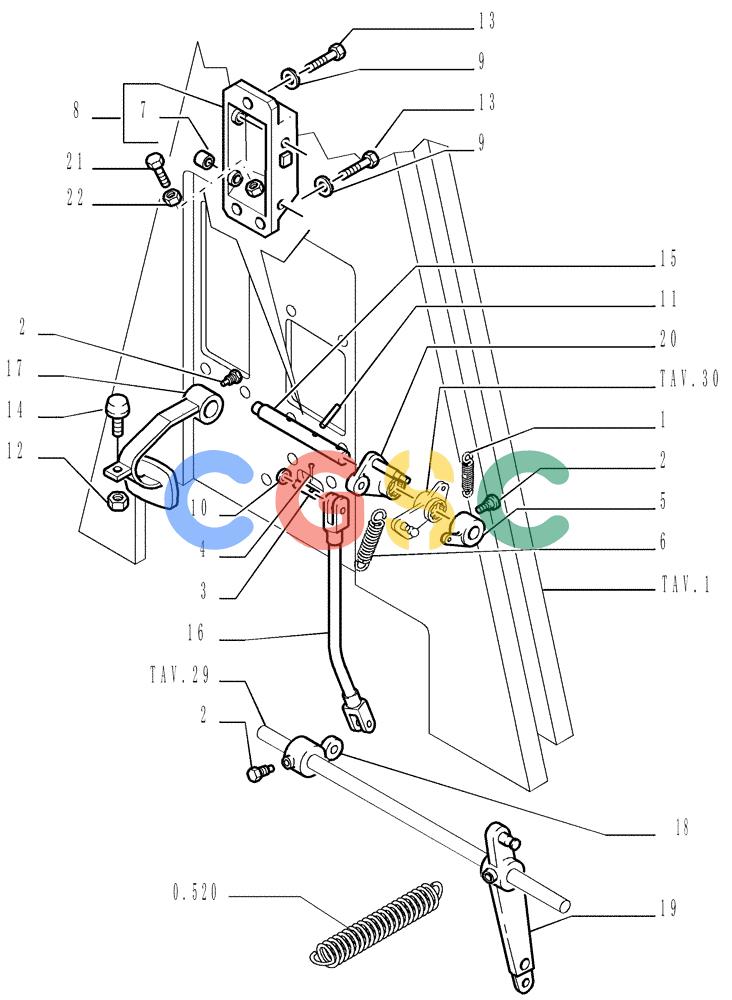

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 547515 | [1] | SPRING | LEC |
| 2. | 569475 | [4] | SCREW | LEC Superseded by part number: 4968815 |
| 3. | 79087266 | [1] | PIN | LEC8X22 |
| 4. | 10734201 | [2] | COTTER PIN,M2 x 12 | TTF Superseded by part number: |
| 5. | 79089244 | [1] | LEVER | LEC |
| 6. | 79093725 | [1] | SPRING | LEC |
| 7. | 79060774 | [2] | BUSHING | LEC |
| 8. | 76046977 | [1] | SUPPORT | LEC- ASSY |
| 9. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 10. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 11. | 14604171 | [1] | LOCK PIN,M6 x 30, Slotted | LEC Superseded by part number: 14604170 |
| 12. | 10788721 | [1] | THIN NUT,Thin, M10 x 1.5, Cl 05 | LEC |
| 13. | 11106031 | [6] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 14. | 14420631 | [1] | HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 10.9 | LEC |
| 15. | 79078966 | [1] | SHAFT | LEC |
| 16. | 76046983 | [1] | TIE-ROD | LEC- CENTRAL |
| 17. | 76054843 | [1] | PEDAL | LEC |
| 18. | 79085368 | [1] | LEVER | LEC- LOWER |
| 19. | 76027830 | [1] | LEVER | LEC- LOWER |
| 20. | 79080389 | [1] | IDLER LEVER | LEC |
| 21. | 79086637 | [1] | SCREW,Rd Slotted, M8 x 1.25 x 32mm L | LEC |
| 22. | 16100814 | [1] | NUT,M8, Cl 8, DAC | LEC Superseded by part number: 16100811 |
