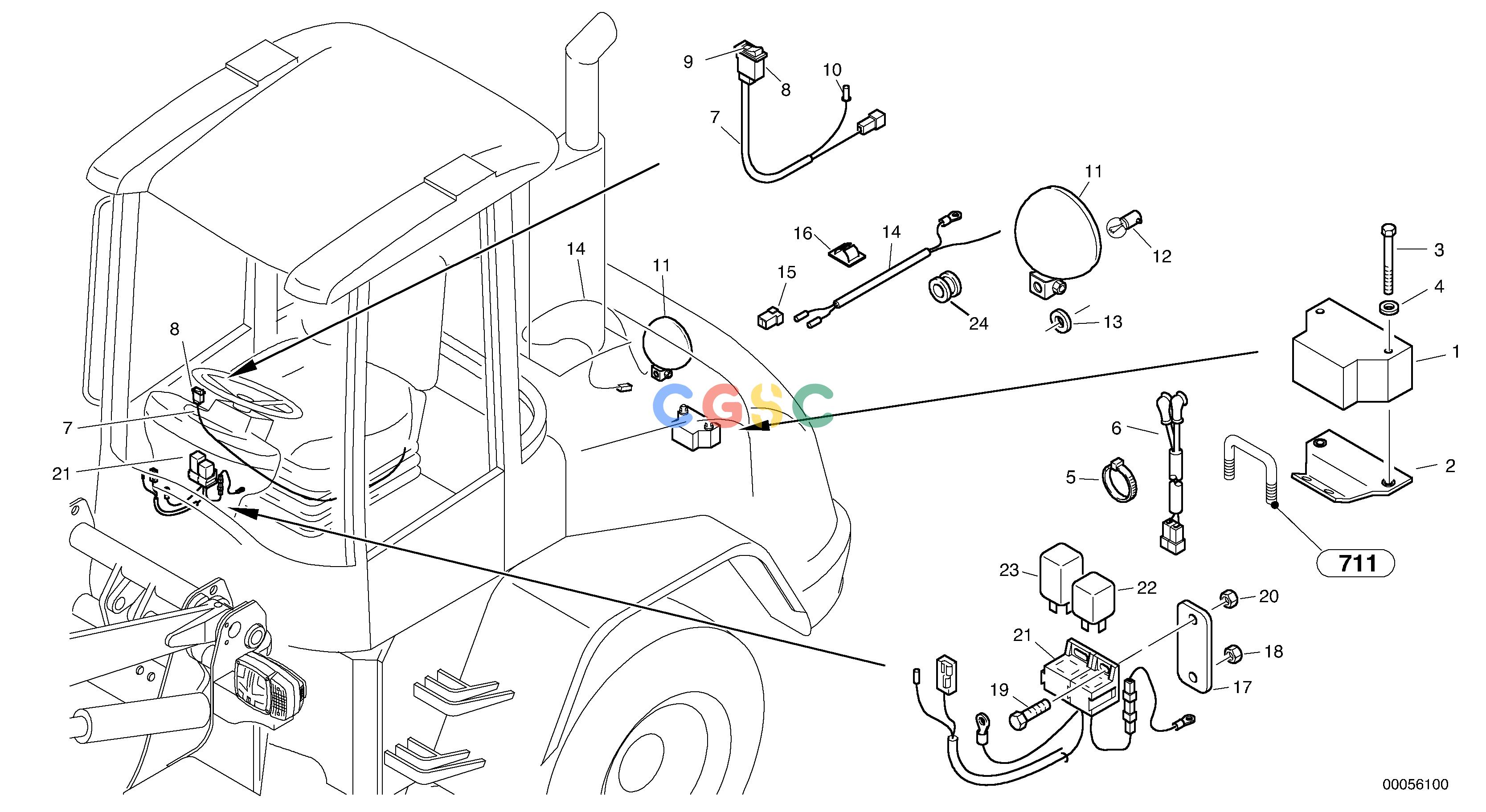

沃尔沃零件查询L35 Back-up warningTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11039563
|
[1] |
Reversing warning unit
|
|
| 9. |
ZM2813689
|
[1] |
Symbol
|
|
| 10. |
ZM2810479
|
[1] |
Contact pin
|
|
| 11. |
ZM3402622
|
[1] |
Lamp
|
|
| 12. |
ZM7050431
|
[1] |
Bulb
|
F2 12V 35W
|
| 13. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 14. |
VOE11308206
|
[1] |
Electrical cable
|
|
| 15. |
ZM2810471
|
[1] |
Housing
|
|
| 16. |
VOE11305436
|
[4] |
Clip
|
|
| 17. |
ZM2801724
|
[1] |
Cover plate
|
|
| 18. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 2. |
ZM2813303
|
[1] |
Holder
|
|
| 19. |
ZM7094807
|
[1] |
Screw
|
M5x12
|
| 20. |
VOE955780
|
[1] |
Hexagon nut
|
M5
|
| 21. |
ZM2815185
|
[1] |
Electric wire
|
|
| 22. |
ZM2801274
|
[1] |
Relay
|
|
| 23. |
ZM4373223
|
[1] |
Transmitter
|
|
| 24. |
VOE11306523
|
[1] |
Cable grommet
|
|
| 3. |
VOE13955307
|
[2] |
Screw
|
M8x100
|
| 4. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 5. |
ZM4375500
|
[REQ] |
Cable clamp
|
|
| 6. |
ZM2813305
|
[1] |
Electric wire
|
|
| 6. |
ZM2815927
|
[1] |
Electric wire
|
|
| 7. |
ZM2815926
|
[1] |
Electric wire
|
|
| 8. |
VOE4803455
|
[1] |
Switch
|
|
