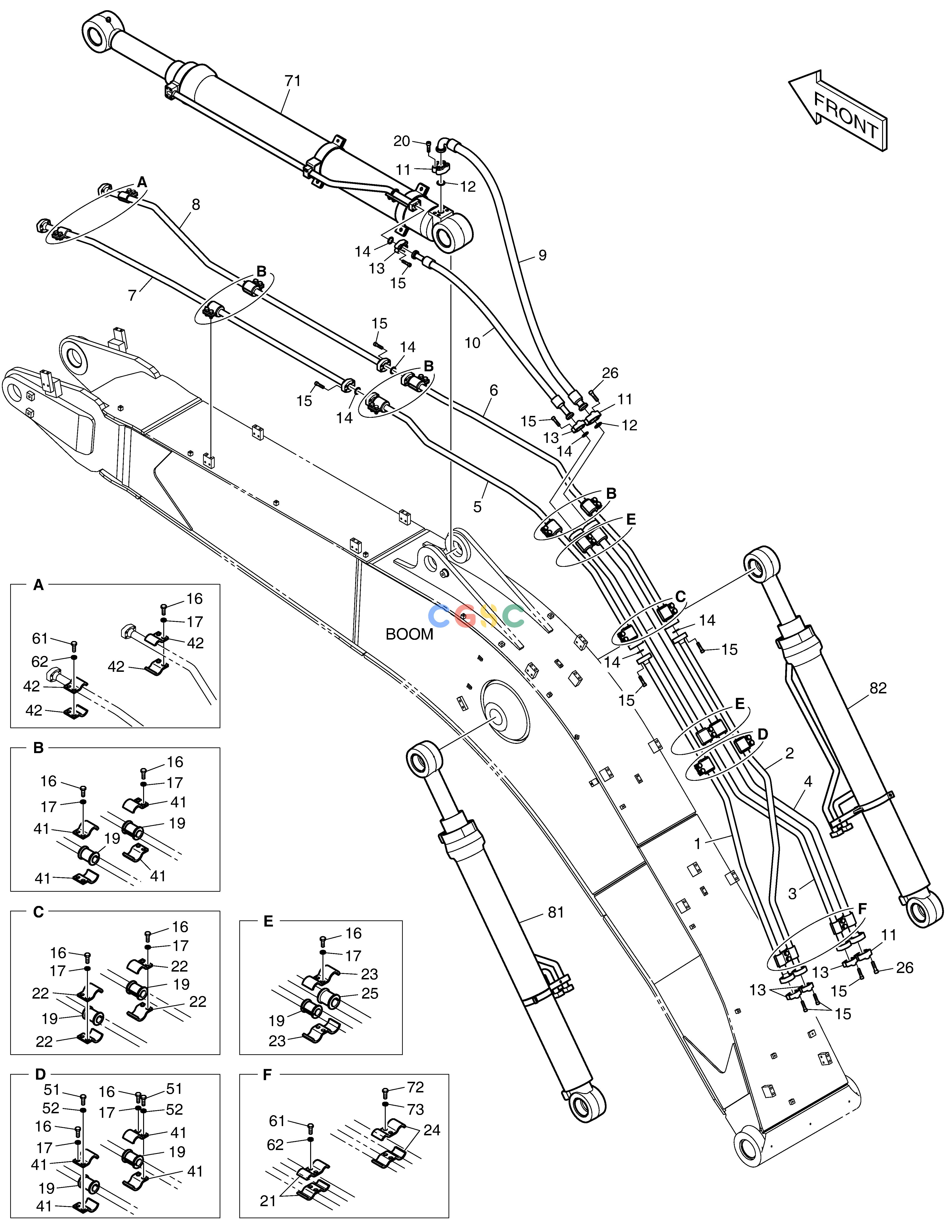

斗山零件查询BOOM PIPING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00970
|
[-] |
|
|
| 1. |
420207-00232A
|
[1] |
|
420207-00232B
|
| 1. |
420207-00232B
|
[1] |
|
|
| 10. |
DS2038381
|
[1] |
|
|
| 11. |
2181-9086
|
[6] |
FLANGE;SPLIT
|
|
| 12. |
2180-1026D23
|
[2] |
O-RING
|
DS2856004
|
| 12. |
DS2856004
|
[2] |
O-RING
|
|
| 13. |
2181-9081
|
[10] |
FLANGE;SPLIT
|
|
| 14. |
2180-1026D19
|
[6] |
O-RING
|
DS2856003
|
| 14. |
DS2856003
|
[6] |
O-RING
|
|
| 15. |
S2215666
|
[36] |
BOLT;SOCKET
|
|
| 16. |
S0562866
|
[24] |
BOLT M14X2.0X45
|
|
| 17. |
120804-00080
|
[24] |
WASHER
|
|
| 17. |
120804-00080
|
[24] |
WASHER
|
|
| 19. |
180308-00235
|
[12] |
|
|
| 2. |
420207-00233A
|
[1] |
|
420207-00233B
|
| 2. |
420207-00233B
|
[1] |
|
|
| 20. |
S2218666
|
[4] |
BOLT;SOCKET M14X2.0X50
|
|
| 21. |
K1004058
|
[2] |
CLAMP;PIPE
|
|
| 22. |
K1004056
|
[4] |
CLAMP;PIPE
|
|
| 23. |
K1004059
|
[4] |
CLAMP
|
|
| 24. |
K1004060
|
[2] |
CLAMP
|
|
| 25. |
180308-00236
|
[2] |
|
|
| 26. |
S2218766
|
[8] |
BOLT;SOCKET
|
|
| 3. |
420207-00234A
|
[1] |
|
420207-00234B
|
| 3. |
420207-00234B
|
[1] |
|
|
| 4. |
420207-00235A
|
[1] |
|
420207-00235B
|
| 4. |
420207-00235B
|
[1] |
|
|
| 41. |
K1004056
|
[16] |
CLAMP;PIPE
|
|
| 42. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 5. |
420207-00236B
|
[1] |
|
420207-00236C
|
| 5. |
420207-00236C
|
[1] |
|
|
| 51. |
S0562866
|
[2] |
BOLT M14X2.0X45
|
|
| 52. |
120804-00080
|
[2] |
WASHER
|
|
| 6. |
420207-00237B
|
[1] |
|
420207-00237C
|
| 6. |
420207-00237C
|
[1] |
|
|
| 61. |
S0562866
|
[4] |
BOLT M14X2.0X45
|
|
| 62. |
120804-00080
|
[4] |
WASHER
|
|
| 7. |
420207-00245C
|
[1] |
|
420207-00245E
|
| 7. |
420207-00245E
|
[1] |
|
|
| 71. |
400305-00029E
|
[1] |
|
400305-00029G
|
| 71. |
400305-00029G
|
[1] |
|
|
| 72. |
S0562866
|
[2] |
BOLT M14X2.0X45
|
|
| 73. |
120804-00080
|
[2] |
WASHER
|
|
| 8. |
420207-00246B
|
[1] |
|
420207-00246C
|
| 8. |
420207-00246C
|
[1] |
|
|
| 81. |
400309-00048B
|
[1] |
|
400309-00048C
|
| 81. |
400309-00048C
|
[1] |
|
400309-00048E
|
| 81. |
400309-00048E
|
[1] |
|
400309-00048G
|
| 81. |
400309-00048G
|
[1] |
|
|
| 82. |
400309-00049B
|
[1] |
|
400309-00049C
|
| 82. |
400309-00049C
|
[1] |
|
400309-00049E
|
| 82. |
400309-00049E
|
[1] |
|
400309-00049G
|
| 82. |
400309-00049G
|
[1] |
|
|
| 9. |
DS20401009
|
[1] |
|
|
