纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (1.200[01]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
989 次

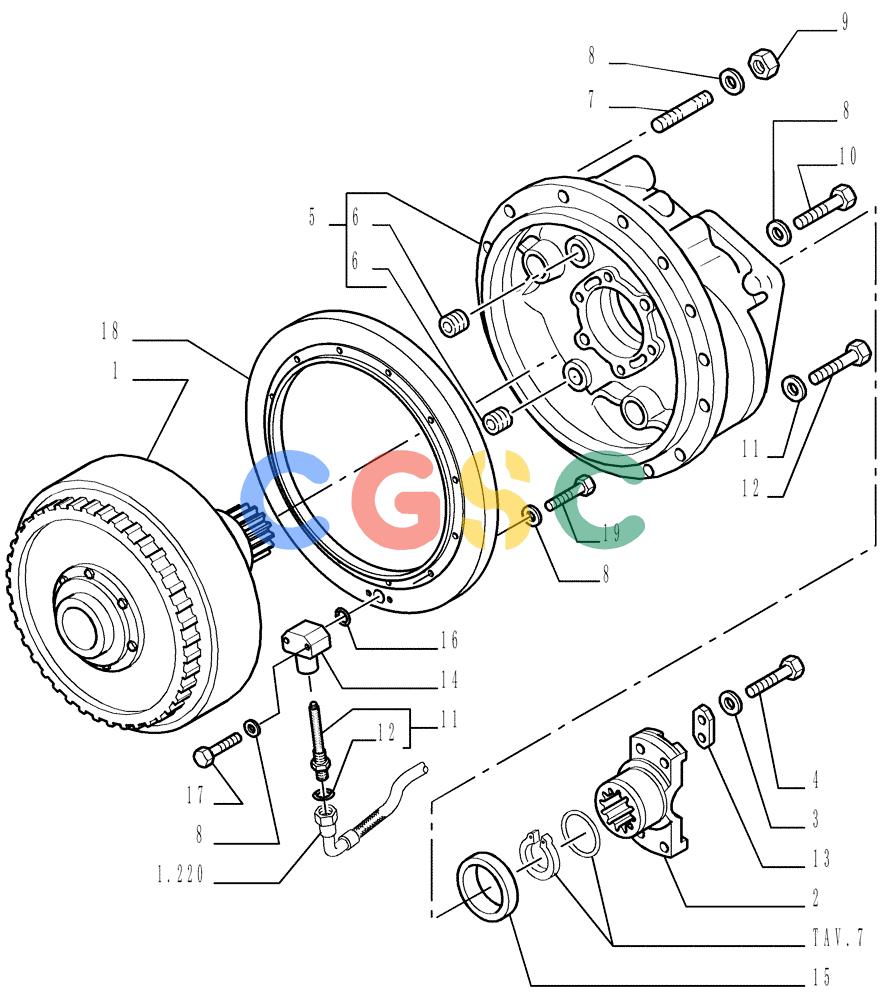

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79033834 | [1] | TORQUE CONVERTER | LEC- ASSY SEE TAV.4 -13" Superseded by part number: 87316766 |
| 1. | 87316766R | [1] | REMAN-TORQUE CONVERT | RACReman for New PN 79033834 |
| 1. | 87316766C | [1] | CORE-TORQUE CONVERTR | RACReturn Number |
| 2. | 76045594 | [1] | SLEEVE | LEC- SHAFT |
| 3. | 592075 | [6] | WASHER,13.7mm ID x 22mm OD x 1.5mm Thk | LEC |
| 4. | 586977 | [6] | BOLT | LEC |
| 5. | 76040815 | [1] | COVER | LEC- ASSY Superseded by part number: 76069552 |
| 6. | 14325501 | [3] | PLUG | LEC28X1,5X13 Superseded by part number: 14325511 |
| 7. | 16731330 | [1] | STUD | LEC10X30 |
| 8. | 14496631 | [39] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 10. | 11106631 | [12] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 11. | 76052997 | [1] | FILTER | LEC- ASSY |
| 13. | 592915 | [1] | CONTROL PANEL | LEC |
| 14. | 76053638 | [1] | FLANGE | LEC |
| 15. | 76006357 | [1] | SEAL,90mm ID x 115mm OD x 13mm Thk | LEC |
| 16. | 14458281 | [1] | O-RING,1.237" ID x 1.443" OD x 0.103" | LEC |
| 17. | 15888831 | [2] | SCREW,Hex, M10 x 1.25 x 70mm, Cl 10.9 | IMO |
| 18. | 76053527 | [1] | SPACER | LEC |
| 19. | 16040831 | [12] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
| 12. | 14438185 | [2] | O-RING,24mm ID x 3mm | JES |
