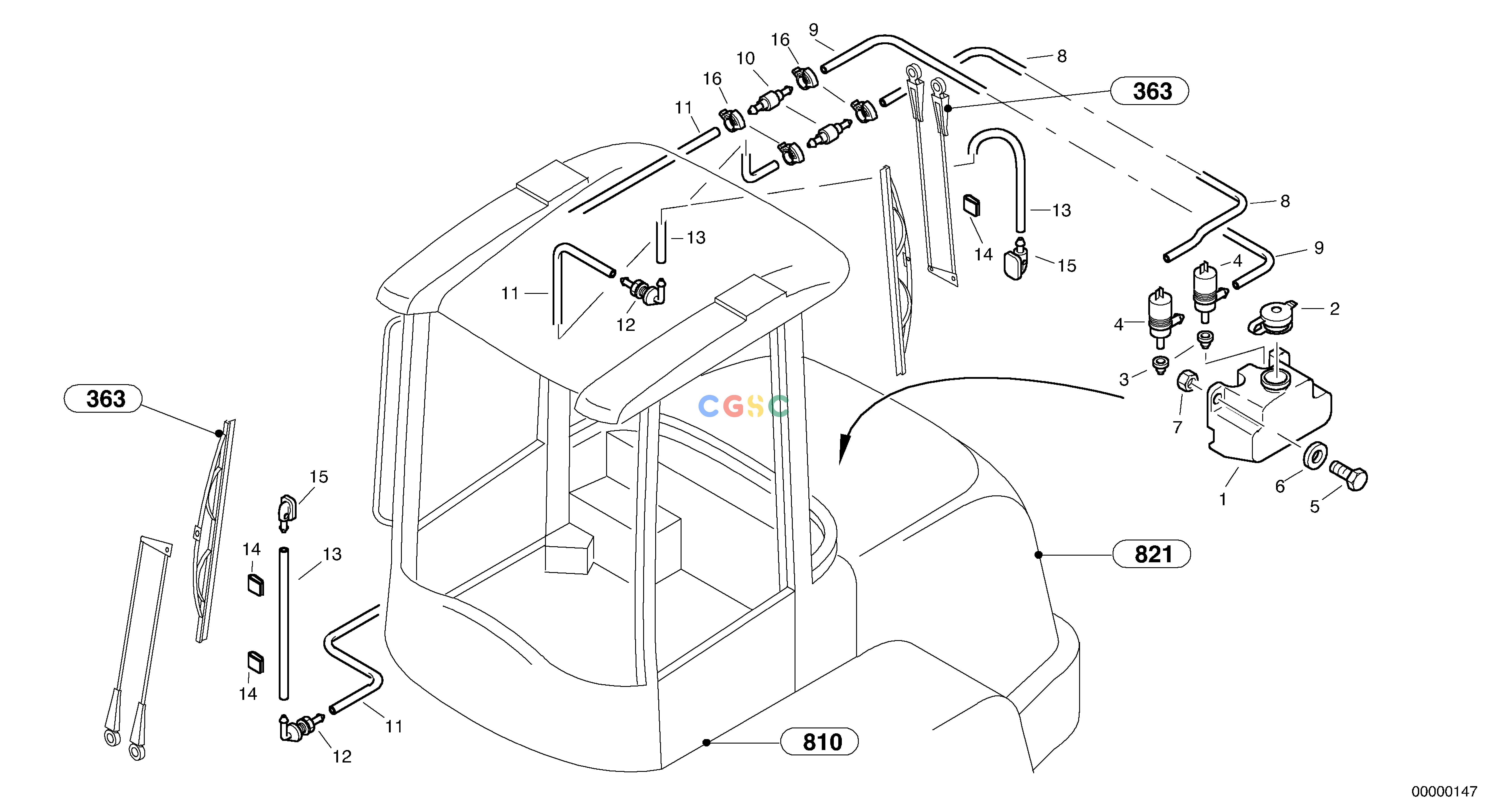

沃尔沃零件查询L35 Windscreen washer systemTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
240 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2801189
|
[1] |
Tank
|
|
| 2. |
ZM2801190
|
[1] |
Cover
|
|
| 3. |
ZM2801191
|
[2] |
Gasket
|
|
| 4. |
VOE11305471
|
[2] |
Pump
|
|
| 5. |
ZM7095370
|
[2] |
Screw
|
M8x16
|
| 6. |
VOE11307560
|
[2] |
Washer
|
B8,4
|
| 7. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 8. |
ZM4383092
|
[1] |
Hose
|
L = 320MM
|
| 9. |
ZM2806693
|
[1] |
Hose
|
|
| 10. |
ZM4385703
|
[2] |
Valve
|
|
| 11. |
ZM2906237
|
[2] |
Hose
|
|
| 12. |
ZM4383312
|
[2] |
Nipple
|
|
| 13. |
ZM4383311
|
[REQ] |
Hose
|
L=1000mm
|
| 14. |
VOE4803208
|
[3] |
Clamp
|
|
| 15. |
ZM4385702
|
[2] |
Jet
|
|
| 16. |
ZM2811426
|
[4] |
Hose clamp
|
1880007-
|
