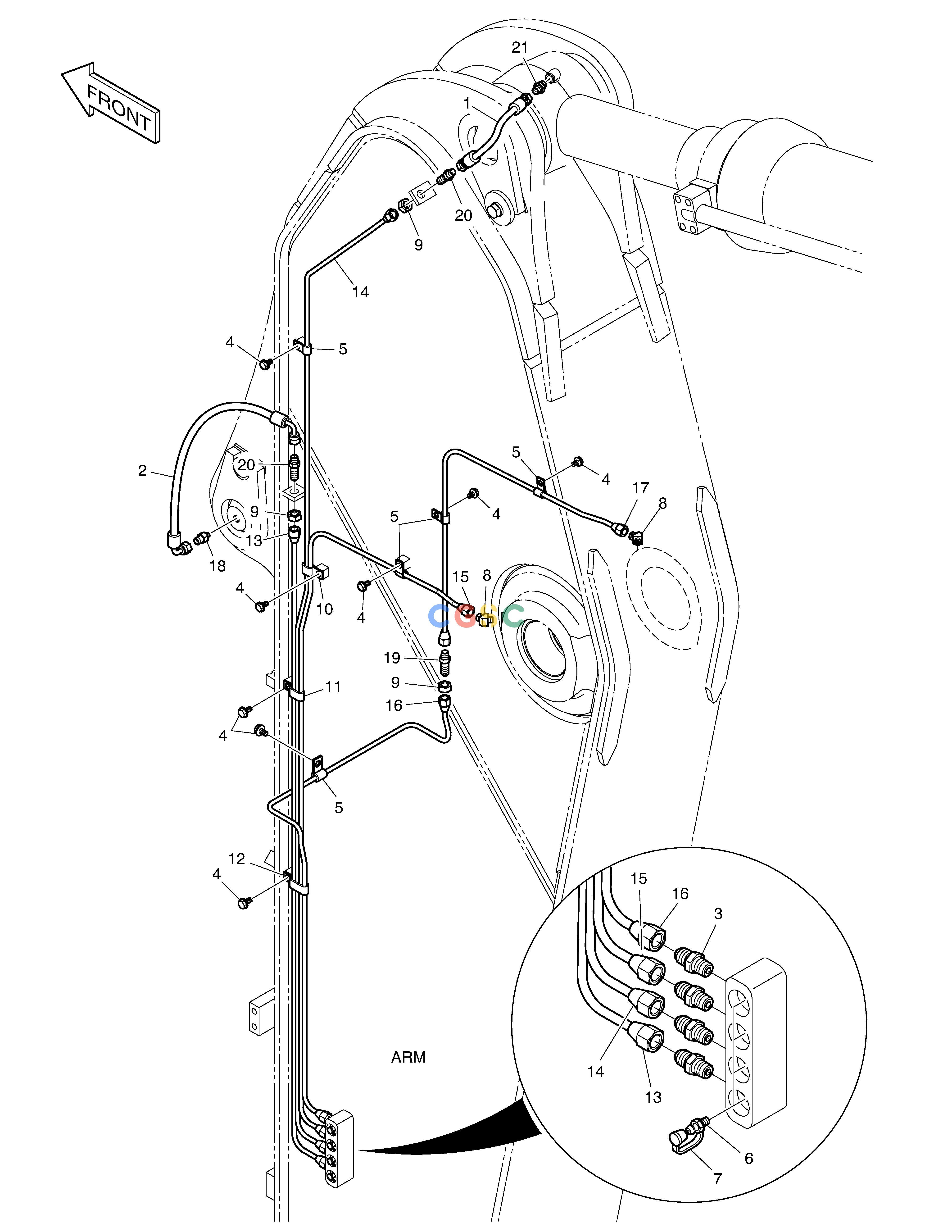

斗山零件查询LUBRICATION PIPING - ARM 3.2m DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00983
|
[-] |
|
|
| 1. |
DS2094454
|
[1] |
|
|
| 10. |
DS2805007
|
[1] |
CLIP
|
|
| 11. |
DS2805008
|
[1] |
CLIP
|
|
| 12. |
DS2805010
|
[1] |
CLIP
|
|
| 13. |
K1006206
|
[1] |
PIPE
|
|
| 14. |
420205-00034
|
[1] |
|
|
| 15. |
K1006208
|
[1] |
PIPE
|
|
| 16. |
420205-00002
|
[1] |
|
|
| 17. |
K1006210
|
[1] |
PIPE
|
|
| 18. |
2181-4112
|
[1] |
ADAPTER
|
|
| 19. |
DS2225009
|
[1] |
ADAPTER
|
|
| 2. |
DS2059596
|
[1] |
|
|
| 20. |
2181-1923D12
|
[2] |
ADAPTER
|
|
| 21. |
2181-1110D1
|
[1] |
ADAPTER
|
|
| 3. |
2181-1184
|
[4] |
ADAPTER
|
|
| 4. |
K1001029
|
[8] |
BOLT
|
|
| 5. |
DS2802023
|
[5] |
CLIP
|
|
| 6. |
S6710041
|
[4] |
NIPPLE,GREASE
|
|
| 7. |
160-00020
|
[4] |
CAP
|
|
| 8. |
K1000057
|
[2] |
ELBOW
|
|
| 9. |
S4032833
|
[3] |
NUT
|
|
