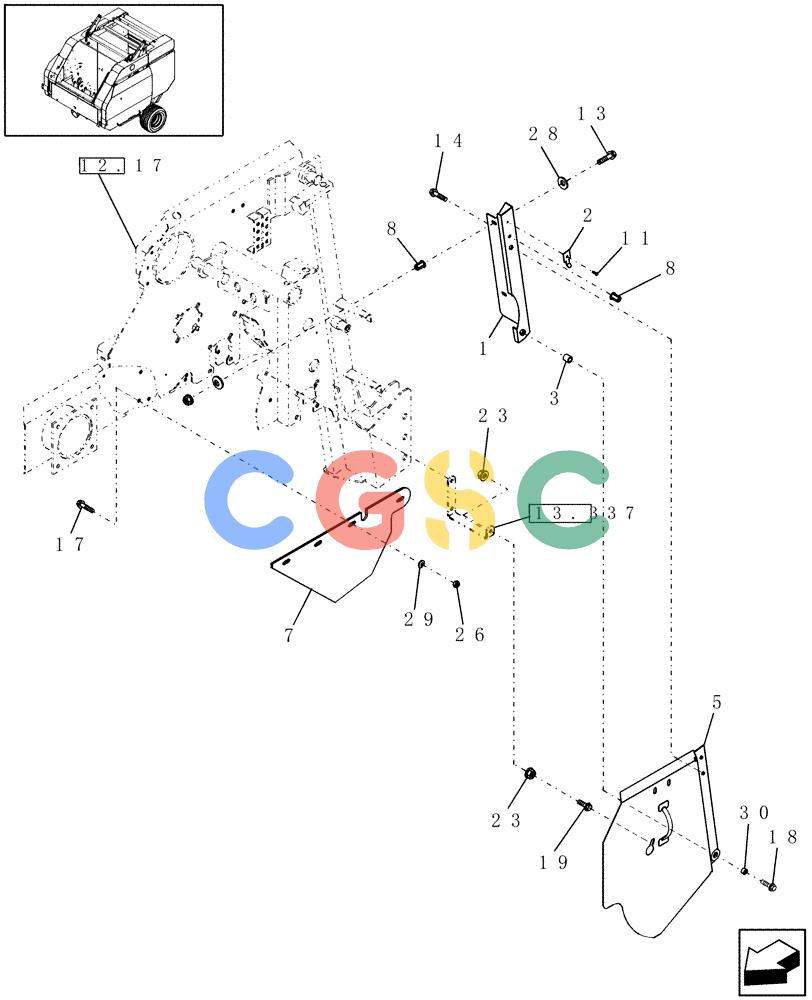

凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (08.95) - SHIELDS, STUFFER FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86630077
|
[1] |
SHIELD
|
PA
Superseded by part number: 87523352
|
| 3. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 5. |
86836589
|
[1] |
SHIELD
|
PA
LH
|
| 7. |
86628547
|
[2] |
SHIELD
|
PA
Europe & R.O.W.
|
| 8. |
86610200
|
[6] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
| 13. |
844-8025
|
[4] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 14. |
614-8016
|
[1] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| 17. |
844-10025
|
[5] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
| 19. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 23. |
825-2410
|
[2] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 26. |
832-46410
|
[8] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 28. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 29. |
235126
|
[8] |
WASHER,10.3mm ID x 38mm OD x 1.7mm Thk
|
NH
Special
|
| 30. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
