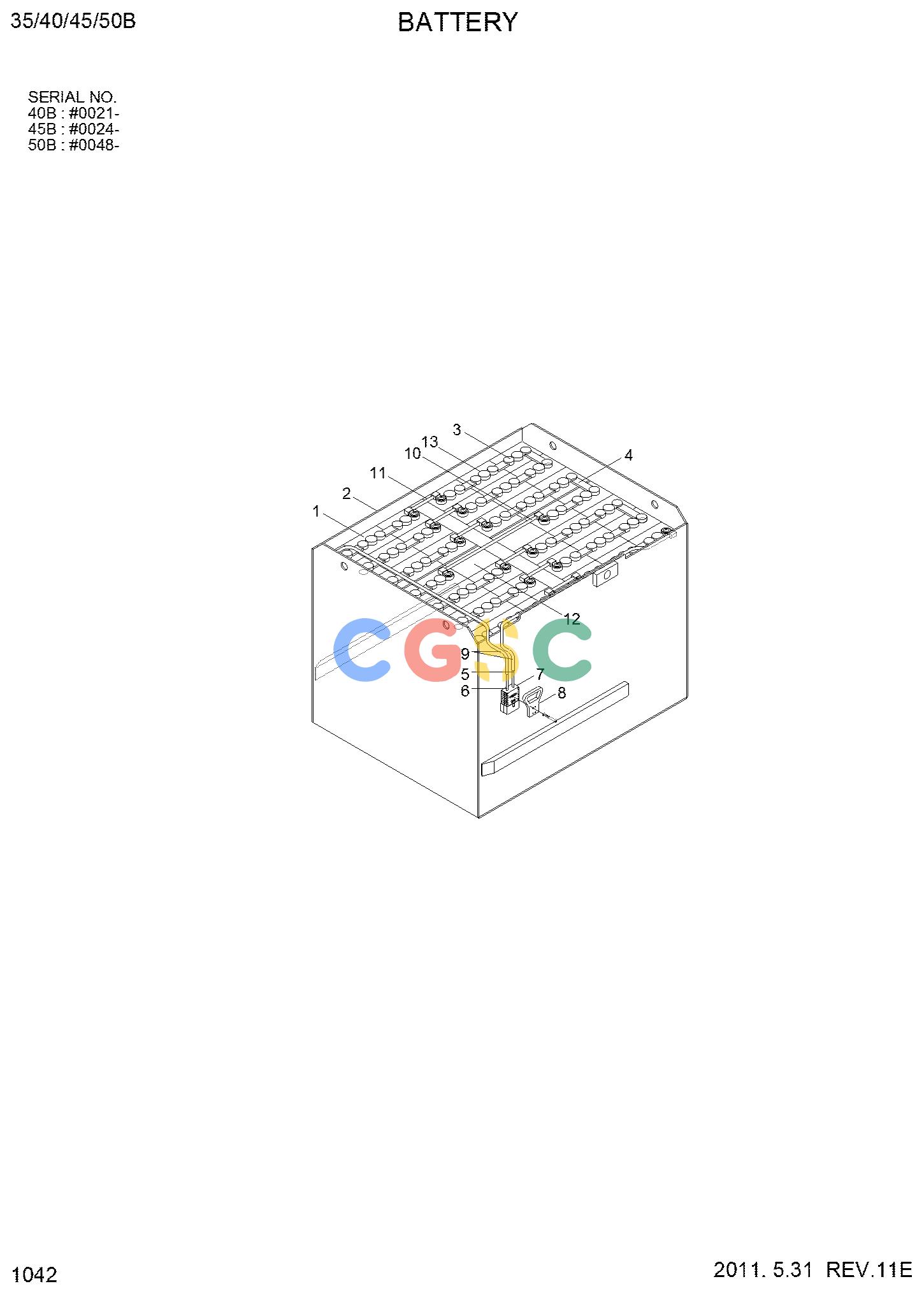

现代零件查询35B/40B/45B/50B-7 BATTERY(40/45/50B)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
507 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
21HD-71023
|
[1] |
BATTERY ASSY
|
|
| . |
21HD-71023
|
[1] |
BATTERY ASSY
|
|
| . |
21HD-71023
|
[1] |
BATTERY ASSY
|
|
| 1. |
B52820330
|
[40] |
CELL-VCJ7(WET)
|
|
| 2. |
|
[1] |
STEEL BOX
|
|
| 3. |
BV00016
|
[26] |
CELL CONNECTOR
|
|
| 4. |
BV00021
|
[6] |
ROW CONNECTOR
|
|
| 5. |
FJ77155
|
[1] |
POS. LEADING CABLE(1550)
|
|
| 6. |
FJ73174
|
[1] |
NEG. LEADING CABLE(1700)
|
|
| 7. |
21FH-81080
|
[1] |
CONNECTOR-SBE320
|
|
| 8. |
310008630
|
[1] |
HANDLE
|
|
| 9. |
FV01949
|
[2] |
PROTECTIVE TUBE
|
|
| 10. |
FJ78453
|
[1] |
CABLE-CELL ( L=450 )
|
|
| 11. |
FJ78133
|
[8] |
CABLE-CELL ( L=130 )
|
|
| 12. |
CV00097
|
[2] |
SPACER (VCJ7 CONTAINER )
|
|
| 13. |
21FH-71090
|
[40] |
CAP-ONE TOUCH, V-TYPE
|
|
