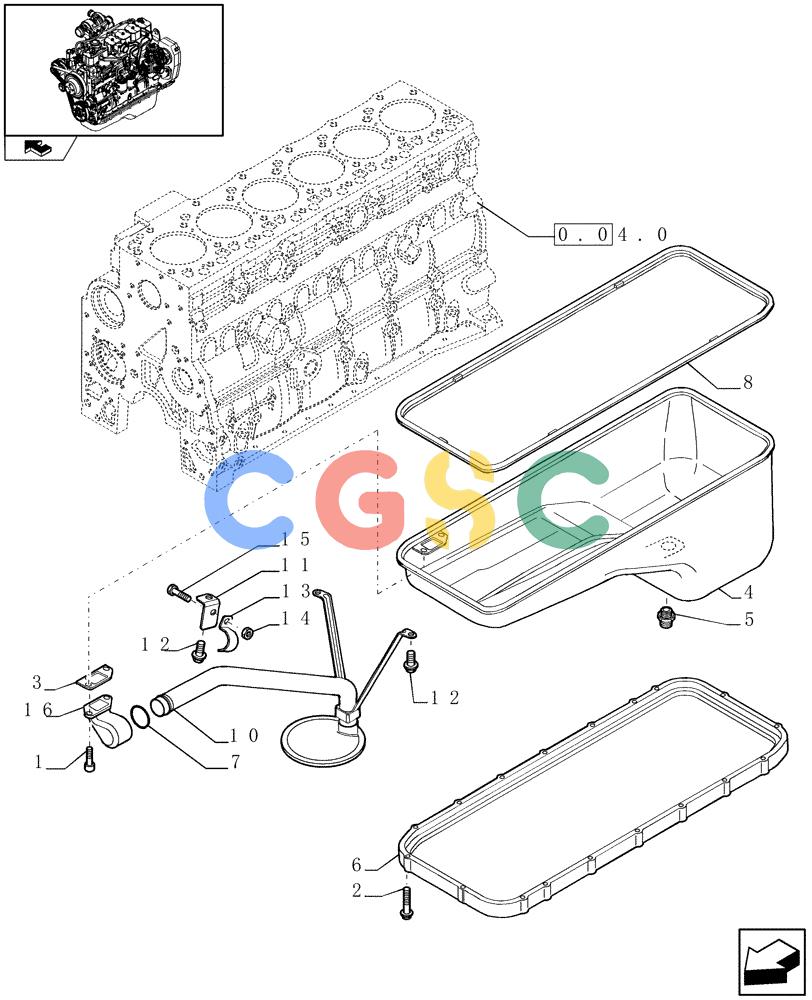

神钢零件查询(F4GE9684B J600) - ENGINE 504116859 - 87050849 (1/07-) (0.04.2) - ENGINE OIL SUMP (2852890) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852660 | [2] | BOLT | TOR Superseded by part number: 16690577 |
| 2. | 4899091 | [18] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 4. | 2852308 | [1] | ENGINE OIL PAN | TOR- ASSY Superseded by part number: 500388254 |
| 5. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 6. | 4897858 | [1] | SPACER | TOR |
| 7. | 2852662 | [1] | SEALING RING | TOR Superseded by part number: 70925934 |
| 8. | 4897861 | [1] | OIL PAN GASKET SET,17.3mm Thk | TOR |
| 10. | 2852654 | [1] | SUCTION PIPE | TOR Superseded by part number: 504082951 |
| 11. | 2852664 | [1] | BRACKET | TOR Superseded by part number: 504084873 |
| 12. | 4895291 | [3] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 13. | 2852663 | [1] | CLAMP | TOR Superseded by part number: 504047521 |
| 14. | 4899003 | [1] | FLANGE NUT,M8 x 1.25 | TOR Superseded by part number: 9804277 |
| 15. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
