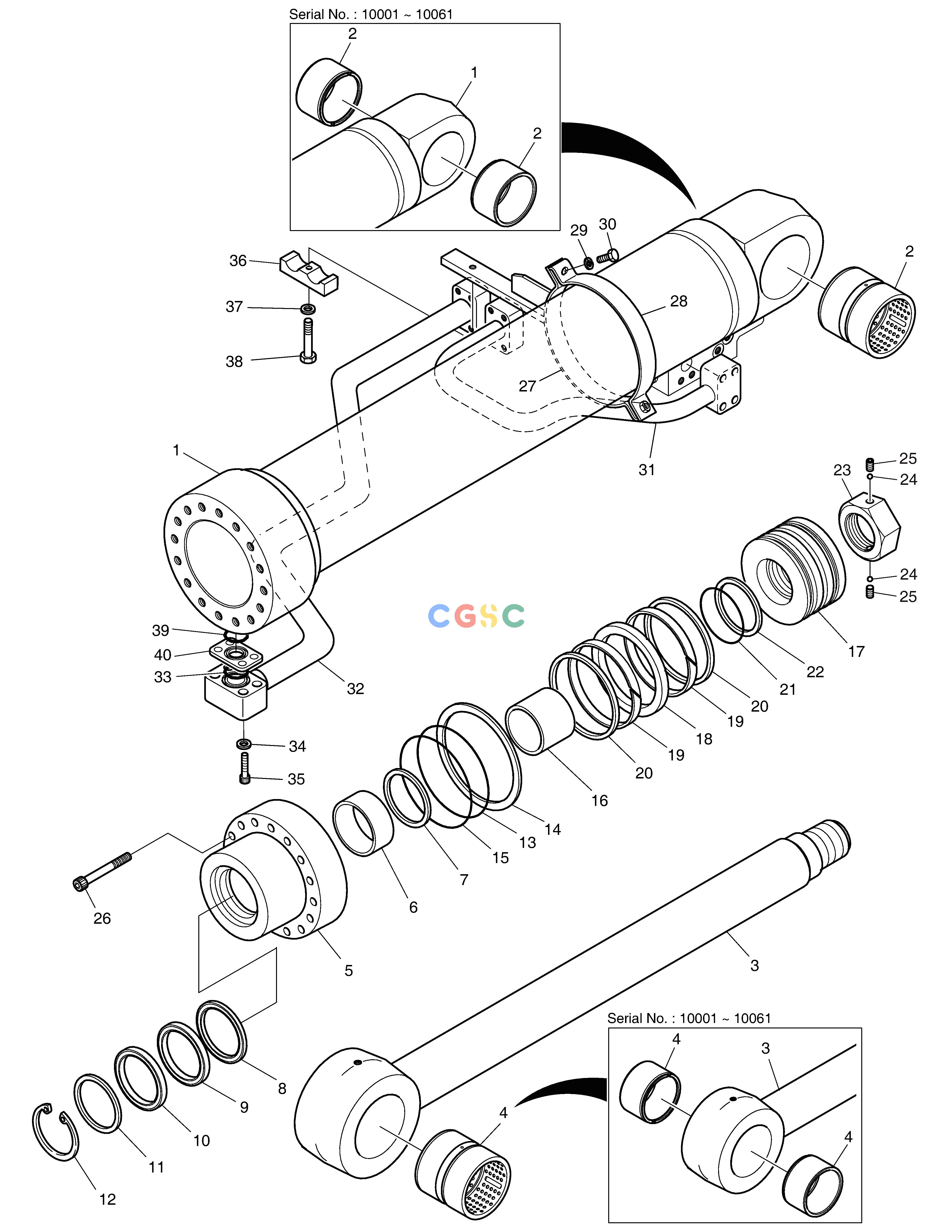

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
807 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00583
|
[1] |
|
|
| -. |
400309-00052G
|
[1] |
|
|
| -. |
400309-00052B
|
[1] |
|
400309-00052C
|
| -. |
400309-00052C
|
[1] |
|
400309-00052E
|
| -. |
400309-00052E
|
[1] |
|
400309-00052G
|
| 1. |
420406-00810
|
[1] |
|
420406-00810A
|
| 1. |
420406-00810A
|
[1] |
|
|
| 10. |
K9001163
|
[1] |
RING;BACK UP
|
|
| 11. |
1.180-00489
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011501
|
[1] |
O-RING
|
|
| 14. |
K9002098
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D149
|
[1] |
O-RING
|
|
| 16. |
401003-00064
|
[1] |
|
|
| 17. |
130602-00189
|
[1] |
|
|
| 18. |
K9002101
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00433
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00029B
|
[2] |
|
131004-00119
|
| 2. |
131004-00119
|
[1] |
|
|
| 20. |
1.180-00369
|
[2] |
|
|
| 21. |
S8010951
|
[1] |
O-RING
|
|
| 22. |
K9002087
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00049
|
[1] |
|
120312-00474
|
| 23. |
120312-00474
|
[1] |
|
|
| 24. |
110202-00014
|
[1] |
|
|
| 24. |
110202-00014
|
[2] |
|
|
| 25. |
S3526408
|
[1] |
|
|
| 25. |
S3526408
|
[2] |
|
|
| 26. |
S2225271
|
[16] |
BOLT;HEX SOCKET
|
|
| 27. |
K9002926
|
[1] |
PIPE BAND ASS'Y
|
|
| 28. |
1.124-00104
|
[1] |
BAND;PIPE
|
|
| 29. |
S5100603
|
[2] |
WASHER
|
|
| 3. |
400337-00358
|
[1] |
|
400337-00358A
|
| 3. |
400337-00358A
|
[1] |
|
|
| 30. |
S0558153
|
[2] |
BOLT
|
|
| 31. |
420210-00695A
|
[1] |
|
420210-00695B
|
| 31. |
420210-00695B
|
[1] |
|
|
| 31. |
420210-00695
|
[1] |
|
420210-00695A
|
| 32. |
420210-00954A
|
[1] |
|
|
| 32. |
420210-00954
|
[1] |
|
420210-00954A
|
| 33. |
2180-1026D19
|
[1] |
O-RING
|
|
| 34. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 35. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 36. |
124-00158
|
[1] |
CLAMP;PIPE
|
|
| 37. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 38. |
S0561466
|
[1] |
BOLT
|
|
| 39. |
2180-1026D19
|
[1] |
O-RING
|
|
| 4. |
131008-00028B
|
[2] |
|
131004-00152
|
| 4. |
131004-00152
|
[1] |
|
|
| 40. |
1.114-00246
|
[1] |
SPACER
|
|
| 5. |
110508-09707B
|
[1] |
|
|
| 5. |
110508-09707
|
[1] |
|
110508-09707A
|
| 5. |
110508-09707A
|
[1] |
|
110508-09707B
|
| 6. |
131005-00015
|
[1] |
|
|
| 7. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00655
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00656
|
[1] |
PACKING;U
|
|
