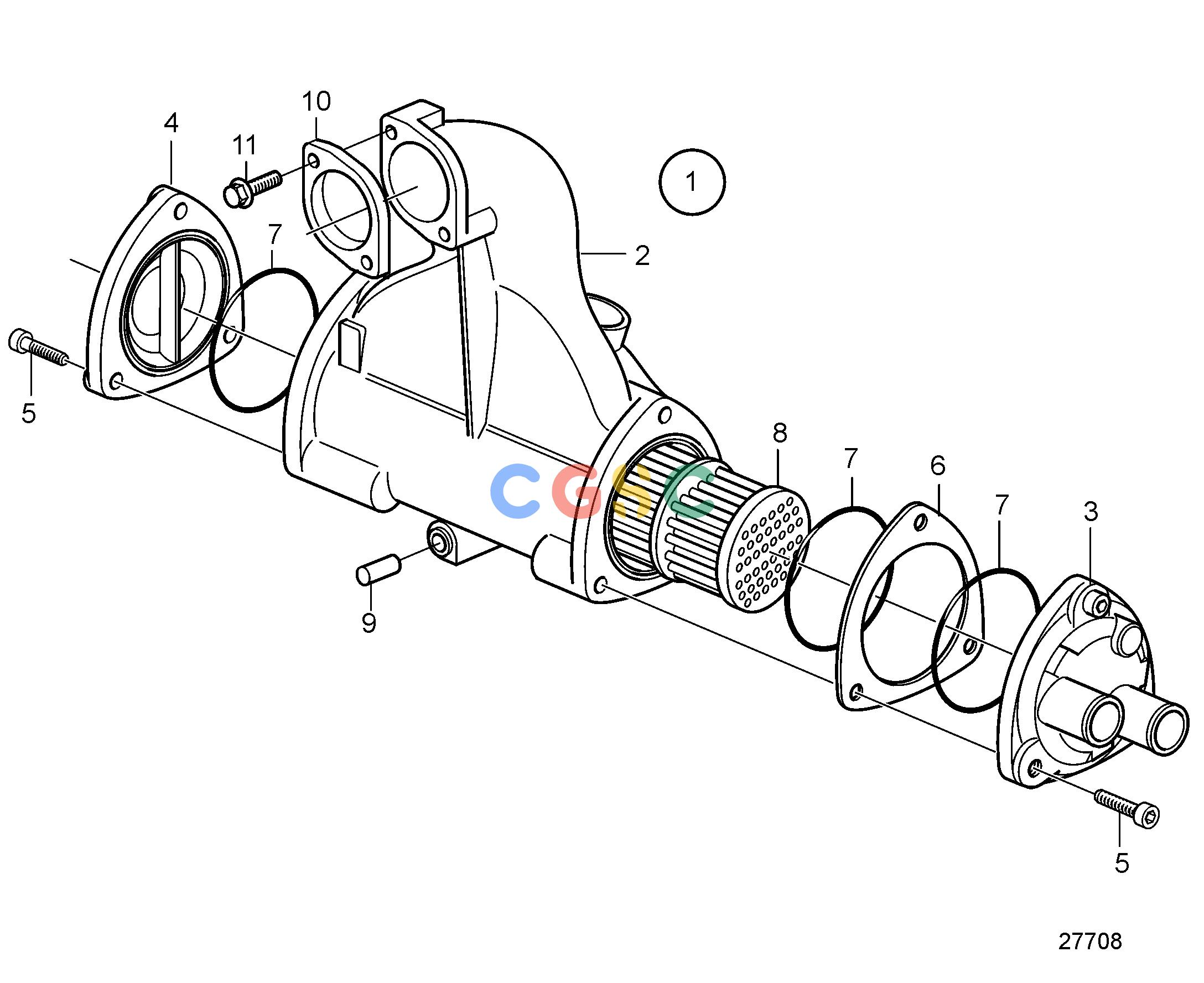

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FCooling SystemAfter Cooler, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584098
|
[1] |
Charge air cooler
|
Replaced by 22395943
|
| 1. |
22395943
|
[1] |
Charge air cooler
|
|
| 2. |
888618
|
[1] |
Heat exchanger housi
|
Replaced by 22395942
|
| 2. |
22395942
|
[1] |
Charge air cooler
|
|
| 3. |
888617
|
[1] |
Cover
|
|
| 4. |
888616
|
[1] |
Heater
|
|
| 5. |
3838337
|
[6] |
Screw
|
|
| 6. |
3580870
|
[1] |
Washer
|
|
| 7. |
3581070
|
[3] |
O-ring
|
|
| 8. |
888615
|
[1] |
Heater
|
|
| 9. |
888614
|
[1] |
Spring pin
|
|
| 10. |
3583658
|
[1] |
Gasket
|
|
| 11. |
984729
|
[2] |
Flange screw
|
|
