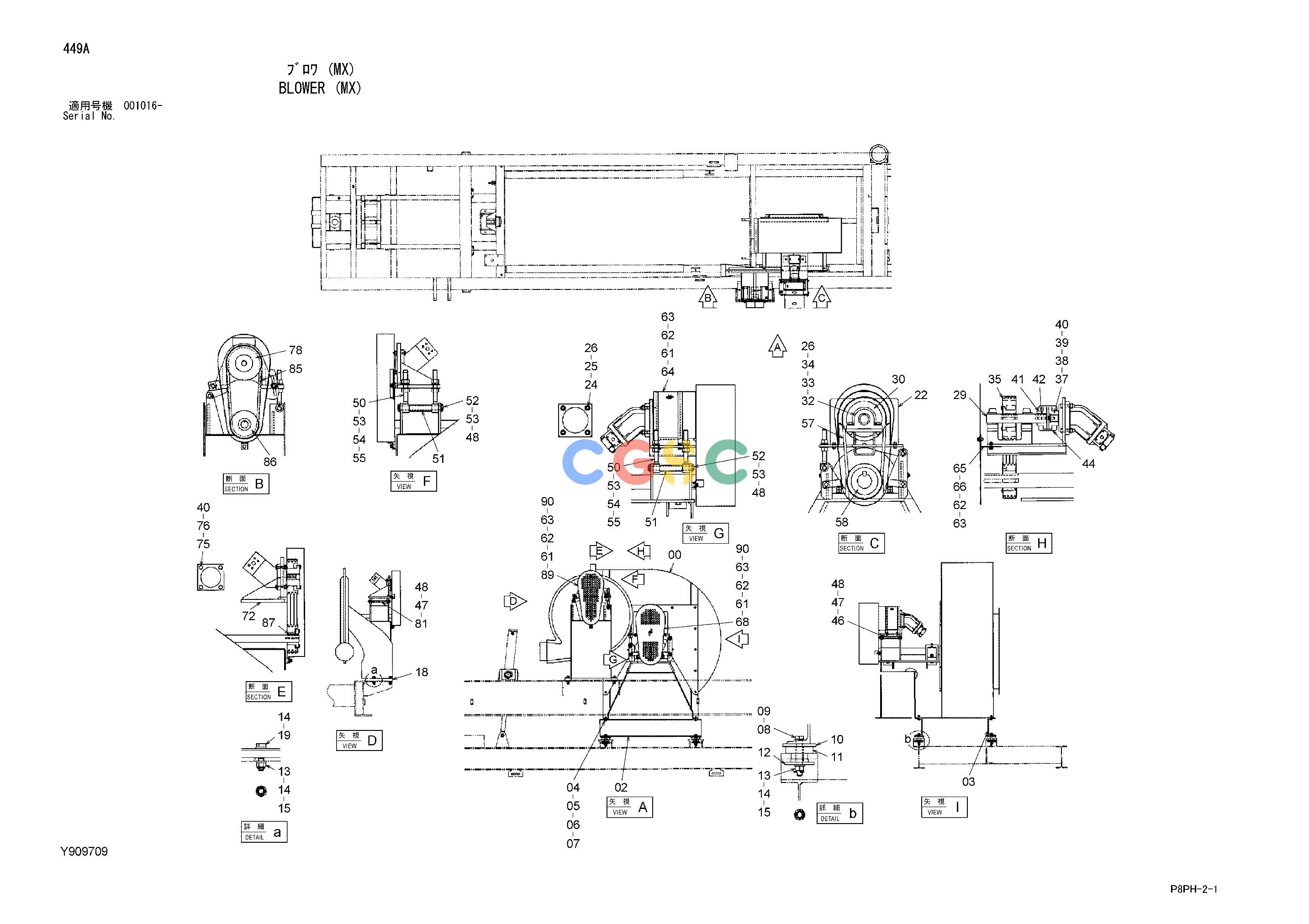

日立零件查询（AR2000）BLOWER (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411234 | [1] | BLOWER | |
| 02. | Y410279 | [1] | BAR;CHANNEL | |
| 03. | Y410280 | [1] | BAR;CHANNEL | |
| 04. | J921445 | [4] | BOLT | |
| 05. | J21684 | [4] | WASHER;SLOPE | |
| 06. | A590914 | [4] | WASHER;SPRING | |
| 07. | J950014 | [4] | NUT | |
| 08. | Y410094 | [4] | BOLT | |
| 09. | A590718 | [4] | WASHER;SLOPE | |
| 10. | Y411466 | [4] | PLATE | |
| 11. | Y411463 | [4] | RUBBER | |
| 12. | Y411467 | [4] | PLATE | |
| 13. | M641821 | [8] | NUT;CASTLE | |
| 14. | J222018 | [12] | WASHER | |
| 15. | A764040 | [8] | PIN;SPLIT | |
| 18. | Y411934 | [2] | DAMPER | |
| 19. | Y410292 | [4] | BOLT | |
| 22. | Y600431 | [1] | BASE;MOTOR | |
| 24. | J921670 | [4] | BOLT | |
| 25. | J951016 | [4] | NUT | |
| 26. | A590916 | [8] | WASHER;SPRING | |
| 29. | Y301689 | [1] | SHAFT | |
| 30. | Y411461 | [1] | PULLEY;V | |
| 32. | 4401305 | [2] | BRG.;UNIT | |
| 33. | J921660 | [4] | BOLT | |
| 34. | A590116 | [4] | WASHER;PLANE | |
| 35. | 94-2310 | [1] | KEY | |
| 37. | Y411446 | [1] | COUPLING;CHAIN | |
| 38. | J901230 | [1] | BOLT | |
| 39. | Y410668 | [1] | WASHER | |
| 40. | A590912 | [1] | WASHER;SPRING | |
| 41. | 94-2306 | [1] | KEY | |
| 42. | Y410687 | [2] | SCREW;SET | |
| 44. | Y411451 | [1] | CASE | |
| 46. | Y409851 | [1] | PIN | |
| 47. | A590120 | [4] | WASHER;PLANE | |
| 48. | A765040 | [8] | PIN;SPLIT | |
| 50. | Y970989 | [4] | PIN | |
| 51. | Y409798 | [2] | PIPE | |
| 52. | Y411609 | [2] | PIN | |
| 53. | A590124 | [12] | WASHER;PLANE | |
| 54. | J257224 | [4] | WASHER;SPRING | |
| 55. | J951024 | [8] | NUT | |
| 57. | Y410245 | [4] | BELT;V | |
| 58. | Y411460 | [1] | PULLEY;V | |
| 61. | J921025 | [10] | BOLT | |
| 62. | A590910 | [11] | WASHER;SPRING | |
| 63. | A590110 | [11] | WASHER;PLANE | |
| 64. | Y700932 | [1] | SHIELD | |
| 65. | Y971298 | [1] | BRACKET | |
| 66. | J921035 | [1] | BOLT | |
| 68. | Y600468 | [1] | SHIELD | |
| 72. | Y700937 | [1] | BASE;MOTOR | |
| 75. | J921260 | [4] | BOLT | |
| 76. | J951012 | [4] | NUT | |
| 78. | Y411459 | [1] | PULLEY;V | |
| 81. | Y409794 | [1] | PIN | |
| 85. | Y410146 | [3] | BELT | |
| 86. | Y411455 | [1] | PULLEY;V | |
| 87. | Y411684 | [1] | KEY | |
| 89. | Y600476 | [1] | SHIELD | |
| 90. | J217083 | [2] | WASHER | |
