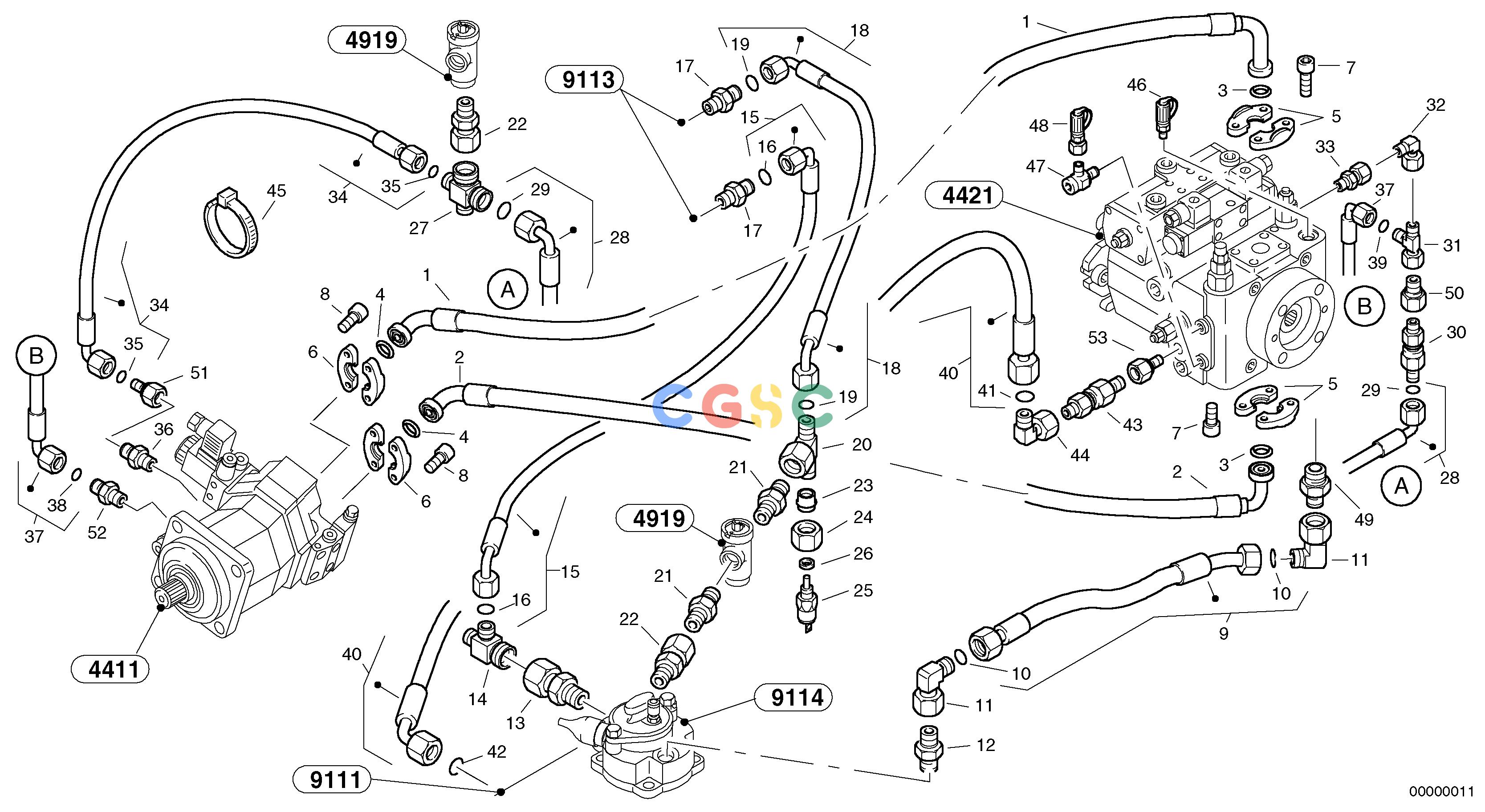

沃尔沃零件查询L35 Lines - hydrostatic driveTYPE 186, 188, 189 SER NO - 22001880001-1890001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2808889
|
[1] |
Hose
|
|
| 10. |
ZM7099975
|
[2] |
O-ring
|
25x2,5
|
| 11. |
ZM7092349
|
[2] |
Fitting W
|
L28
|
| 12. |
ZM8091972
|
[1] |
Nipple
|
L28MB
|
| 13. |
VOE11305371
|
[1] |
Fitting
|
|
| 14. |
ZM2811258
|
[1] |
Distributor
|
|
| 15. |
ZM2811480
|
[1] |
Hose
|
|
| 16. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 17. |
ZM7091972
|
[2] |
Nipple
|
L22MB
|
| 18. |
ZM2811479
|
[1] |
Hose
|
|
| 19. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 2. |
ZM2808890
|
[1] |
Hose
|
|
| 20. |
ZM7092203
|
[1] |
T-nipple
|
L22, -1880030/-1890044
|
| 20. |
VOE944258
|
[1] |
Elbow nipple
|
L22, 1880031-/1890045-
|
| 21. |
ZM7091972
|
[2] |
Nipple
|
L22MB
|
| 22. |
VOE11305373
|
[2] |
Fitting
|
|
| 23. |
VOE11305369
|
[1] |
Fitting
|
-1880030/-1890044
|
| 24. |
VOE956988
|
[1] |
Fitting nut
|
AL22, -1880030/-1890044
|
| 25. |
VOE11305367
|
[1] |
Temperature sensor
|
-1880030/-1890044
|
| 26. |
ZM7099503
|
[1] |
Seal
|
A14x18, -1880030/-1890044
|
| 27. |
ZM2811237
|
[1] |
Distributor
|
|
| 28. |
ZM2811274
|
[1] |
Hose
|
|
| 3. |
VOE993326
|
[2] |
O-ring
|
37,7x3,5
|
| 29. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 30. |
ZM2811244
|
[1] |
Back-pressure valve
|
0,5 bar
|
| 31. |
VOE964059
|
[1] |
T-nipple
|
L22
|
| 32. |
VOE944258
|
[1] |
Elbow nipple
|
L22
|
| 33. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 34. |
VOE11305401
|
[1] |
Hose assembly
|
2000 mm
|
| 35. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 36. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 37. |
ZM2811284
|
[1] |
Hose
|
|
| 38. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 4. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 39. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 40. |
ZM2805097
|
[1] |
Hose
|
|
| 41. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 42. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 43. |
ZM2811257
|
[1] |
Non-return valve
|
|
| 44. |
VOE944258
|
[1] |
Elbow nipple
|
L22
|
| 45. |
ZM2809866
|
[5] |
Cable tie
|
|
| 46. |
ZM2810699
|
[2] |
Testing sleeve
|
|
| 47. |
VOE11306496
|
[2] |
Fitting
|
|
| 48. |
ZM2807420
|
[2] |
Testing sleeve
|
|
| 5. |
VOE14236931
|
[4] |
Flange half
|
|
| 49. |
ZM2811236
|
[1] |
Nipple
|
|
| 50. |
ZM2811253
|
[1] |
Reducing screwing
|
|
| 51. |
VOE11306500
|
[1] |
Nipple
|
|
| 52. |
VOE11306284
|
[1] |
Fitting
|
L18MB
|
| 53. |
VOE4780402
|
[1] |
Reduction
|
|
| 6. |
VOE14048189
|
[4] |
Flange half
|
|
| 7. |
VOE14376411
|
[8] |
Allen Hd Screw
|
M14x40
|
| 8. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 9. |
ZM2808893
|
[1] |
Hose
|
|
