神钢零件查询(F4GE9684B J600) - ENGINE 504116859 - 87050849 (1/07-) (0.08.0) - CRANKSHAFT (2852304) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
567 次

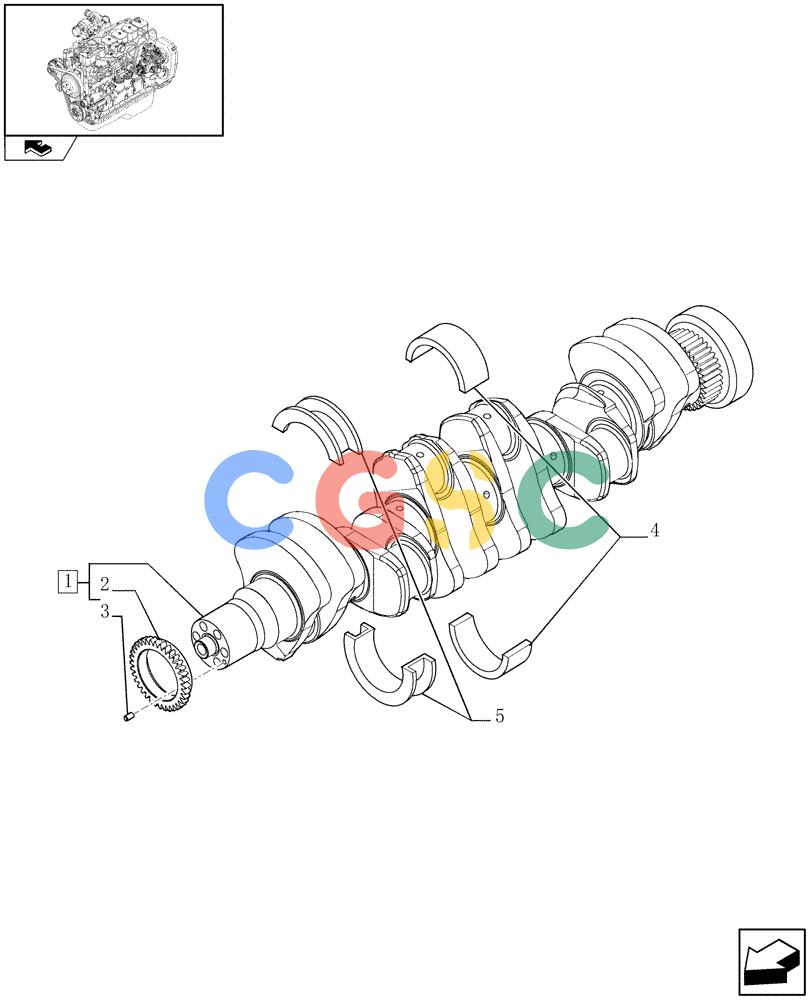

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852306 | [1] | CRANKSHAFT | TOR- ASSY Superseded by part number: 504203872 |
| 1. | 2852306R | [1] | REMAN-CRANKSHAFT | MKT Superseded by part number: 504057571R |
| 1. | 2852306C | [1] | CORE-CRANKSHAFT | MKTReturn Number |
| 2. | 4893386 | [1] | GEAR,36 T | TOR |
| 3. | 4899046 | [1] | DOWEL,M6 x 9 L | TOR |
| 4. | 2995787 | [6] | SET OF STD MAIN BRGS | TOR |
| 4. | 2995788 | [6] | SET OF MAIN BRGS-.25 | TOR Superseded by part number: |
| 4. | 2995789 | [6] | SET OF MAIN BRGS - | TOR |
| 5. | 2995784 | [1] | SET OF THRUST WASHER | TOR(+0.000) (+0.000) |
| 5. | 2995785 | [1] | SET OF MAIN BRGS-.25 | TOR(+0.254) (+0.250) |
| 5. | 2995786 | [1] | SET OF THRUST WASHER | TOR(+0.508) (+0.500) |
