神钢零件查询(F4GE9684B J600) - ENGINE 504116859 - 87050849 (1/07-) (0.08.2) - PISTON - ENGINE (2856316) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
966 次

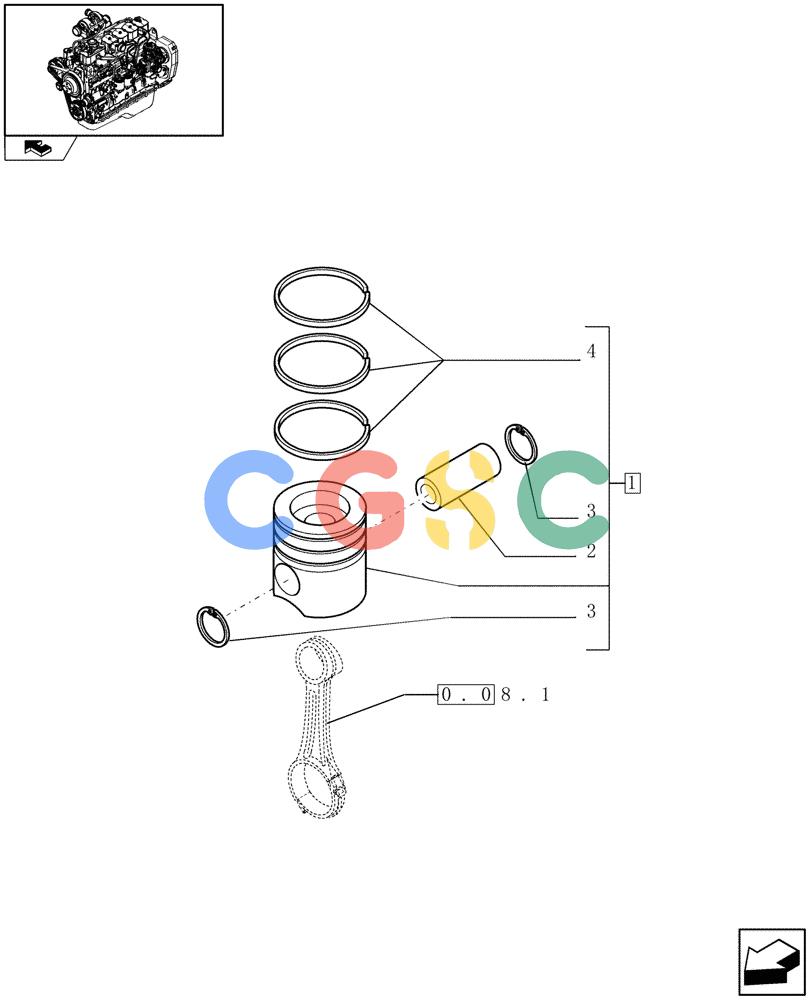

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8094740 | [6] | PISTON & RINGS KIT | TORASSY, Incl 2, 3, 4 |
| 1. | 87317252 | [6] | PISTON & RINGS KIT,0.4mm Oversize | TOR- ASSY (+0,4) |
| 2. | 4892712 | [1] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 2854030 | [2] | SNAP RING,M40.8 OD | TOR Superseded by part number: 504093651 |
| 4. | 8093881 | [1] | PISTON RINGS KIT | TORSTD Superseded by part number: 8094845 |
| 4. | 8093949 | [1] | SET,PISTON RINGS+0.4 | LECSET OF PISTON RINGS +0.4 Superseded by part number: 8094752 |
