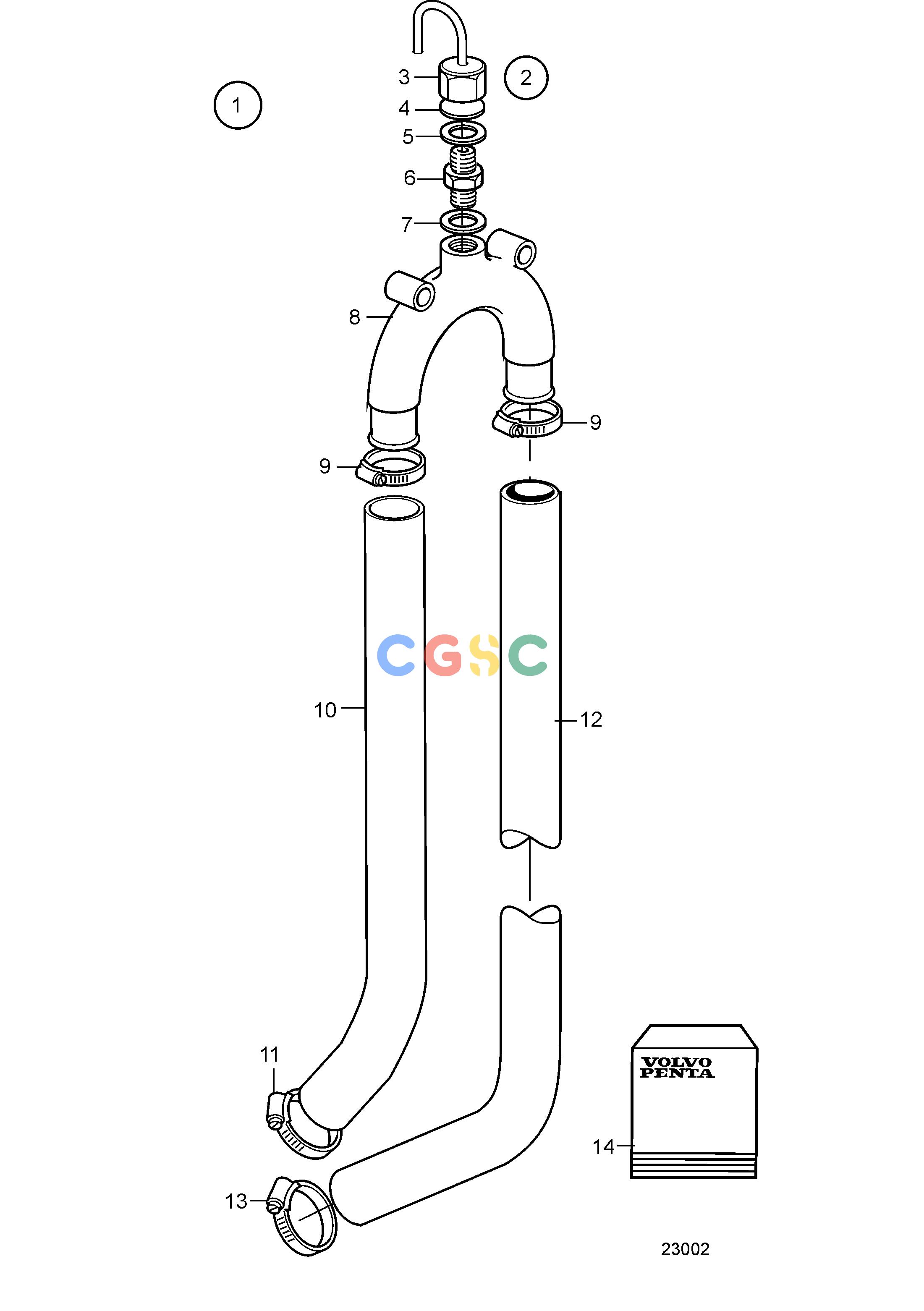

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FCooling SystemVacuum ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21662704
|
[1] |
Vacuum valve
|
|
| 2. |
828534
|
[1] |
Vacuum valve
|
|
| 3. |
828533
|
[1] |
Upper section
|
|
| 4. |
|
|
|
Included in overhaul kit.
|
| 5. |
828424
|
[2] |
Gasket
|
Included in overhaul kit.
|
| 6. |
828266
|
[1] |
Lower section
|
|
| 7. |
947282
|
[2] |
Gasket
|
Included in overhaul kit.
|
| 8. |
828501
|
[1] |
Branch pipe
|
|
| 9. |
853548
|
[2] |
Hose clamp
|
|
| 10. |
|
|
|
Not included in vacuum valve kit. Use existing hose from engine.
|
| 11. |
|
|
|
Not included in vacuum valve kit. Use existing hose clamps from engine.
|
| 12. |
|
|
|
Not included in vacuum valve kit. Use existing hose from engine.
|
| 13. |
|
|
|
Not included in vacuum valve kit. Use existing hose clamps from engine.
|
| 14. |
3818424
|
[1] |
Repair kit
|
|
