沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
206 次

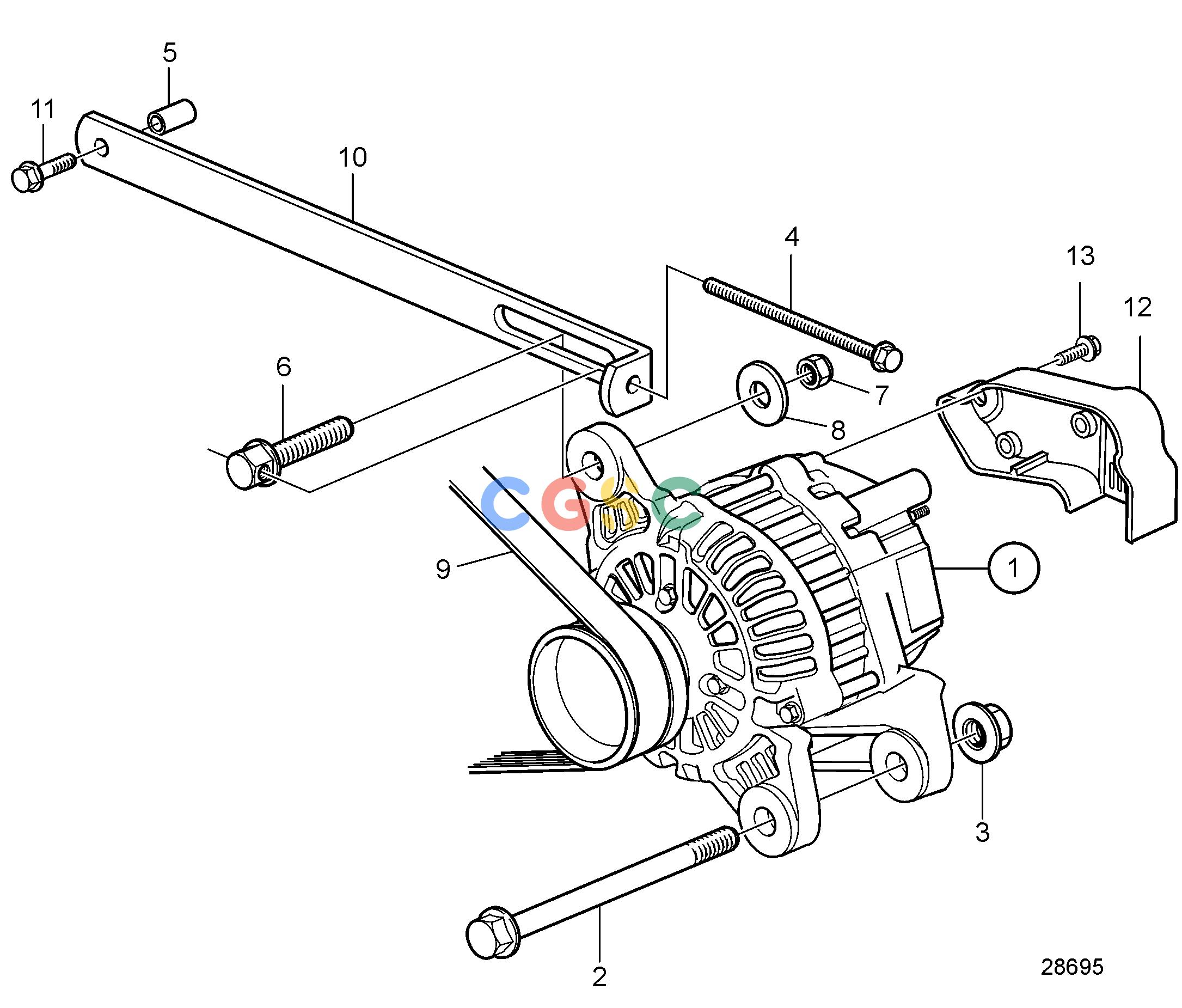

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803650
|
[1] |
Alternator, exch
|
|
| 1. |
874502
|
[1] |
Alternator
|
|
| 1. |
|
|
|
14V 115A
|
| 2. |
978447
|
[1] |
Flange screw
|
|
| 3. |
971096
|
[1] |
Flange nut
|
|
| 4. |
977820
|
[1] |
Hexagon screw
|
|
| 5. |
3808872
|
[1] |
Spacer
|
|
| 6. |
861663
|
[1] |
Flange screw
|
|
| 7. |
948645
|
[1] |
Flange lock nut
|
|
| 8. |
960144
|
[1] |
Washer
|
|
| 9. |
3584086
|
[1] |
Belt
|
|
| 10. |
3584100
|
[1] |
Tensioner
|
|
| 11. |
946671
|
[1] |
Flange screw
|
|
| 12. |
21217571
|
[1] |
Housing
|
|
| 13. |
996063
|
[1] |
Flange screw
|
|
